I-Medstetic Presoterapia 3-in-1 Digital pressotherapy with infrared sauna

Premium Digital 3-in-1 Pressotherapy Machine with Infrared Sauna, EMS and Modular Suit

Professional CE marked 3 technologies 20 chambers

The Premium Digital 3-in-1 Pressotherapy Machine is a professional multifunctional device developed for beauty salons seeking to combine pneumatic compression pressotherapy, far-infrared sauna and EMS electrical muscle stimulation within a single platform.

Its configuration enables body treatment protocols to be performed using one technology or by combining several functions during the same session. The system features a modular suit comprising separate accessories for the arms, abdomen, legs and feet, allowing only the areas required for the selected protocol to be prepared.

The main unit features a digital touchscreen from which the pressotherapy, infrared and EMS settings can be managed independently: time, operating mode, intensity, active areas and start or pause controls.

The set is completed by a cable-management organiser made from canvas-style plastic material, which keeps the pneumatic and electrical connections organised and reduces loose tubes and cables in the treatment room.

Premium Digital Pressotherapy Machine at a glance

• 3 technologies Pressotherapy + far infrared + EMS
• 20 chambers Pneumatic compression system
• 4 modes Pressotherapy programmes
• 4 EMS frequencies 10 / 20 / 30 / 40 Hz
• 10 electrodes EMS electrical muscle stimulation
• 10 pneumatic outlets Connectors 0–9
• 5 thermal connections Connectors 1–5
• Modular suit Arms, abdomen, legs and feet
• Display Digital touchscreen
• Power 350 W
• Design Upright unit with castors
• Use Professional beauty treatments

Three body treatment technologies in one device

The main feature of this system is the integration of three different functions within a single professional unit.

• Pressotherapy Compression through air chambers
• Far infrared Application of dry radiant heat
• EMS electrical muscle stimulation Aesthetic muscle stimulation using electrical impulses

The professional can select the technologies required for each protocol and manage their settings from the same digital interface.

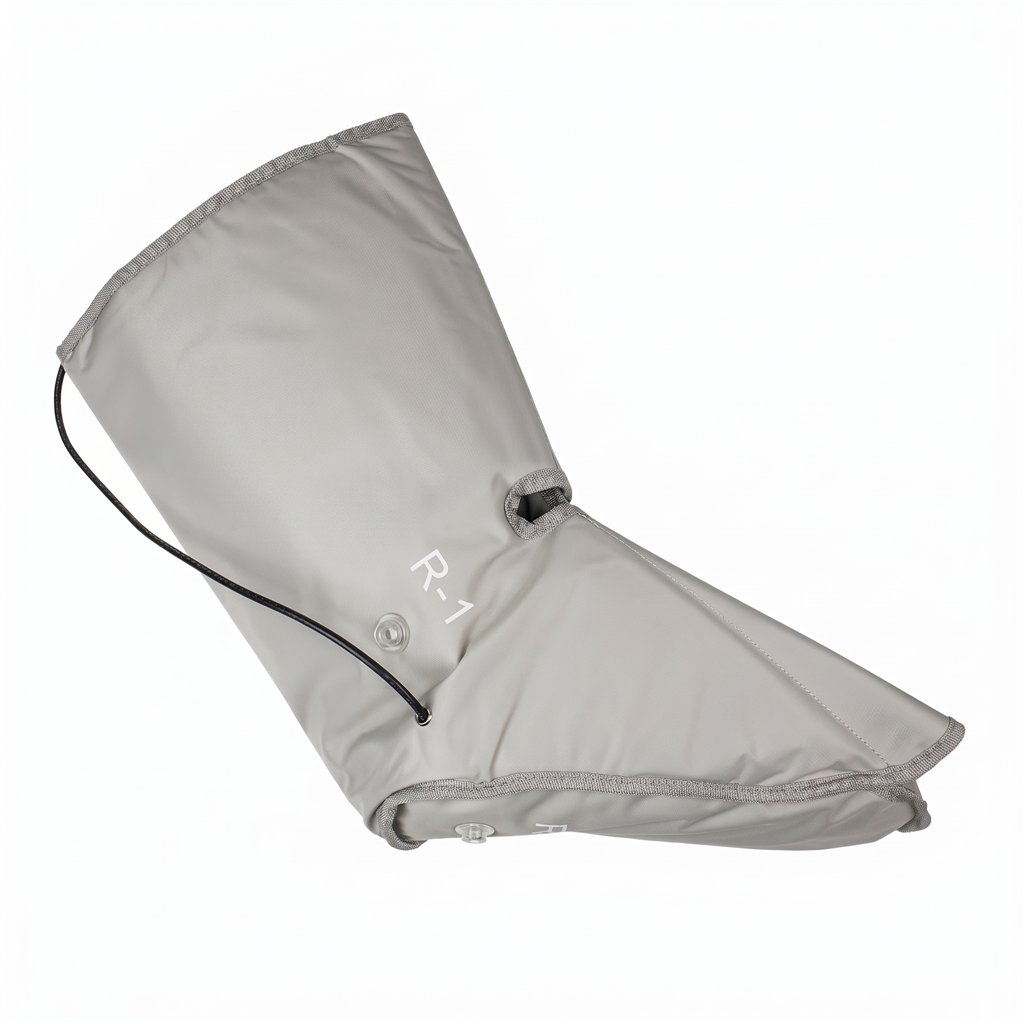

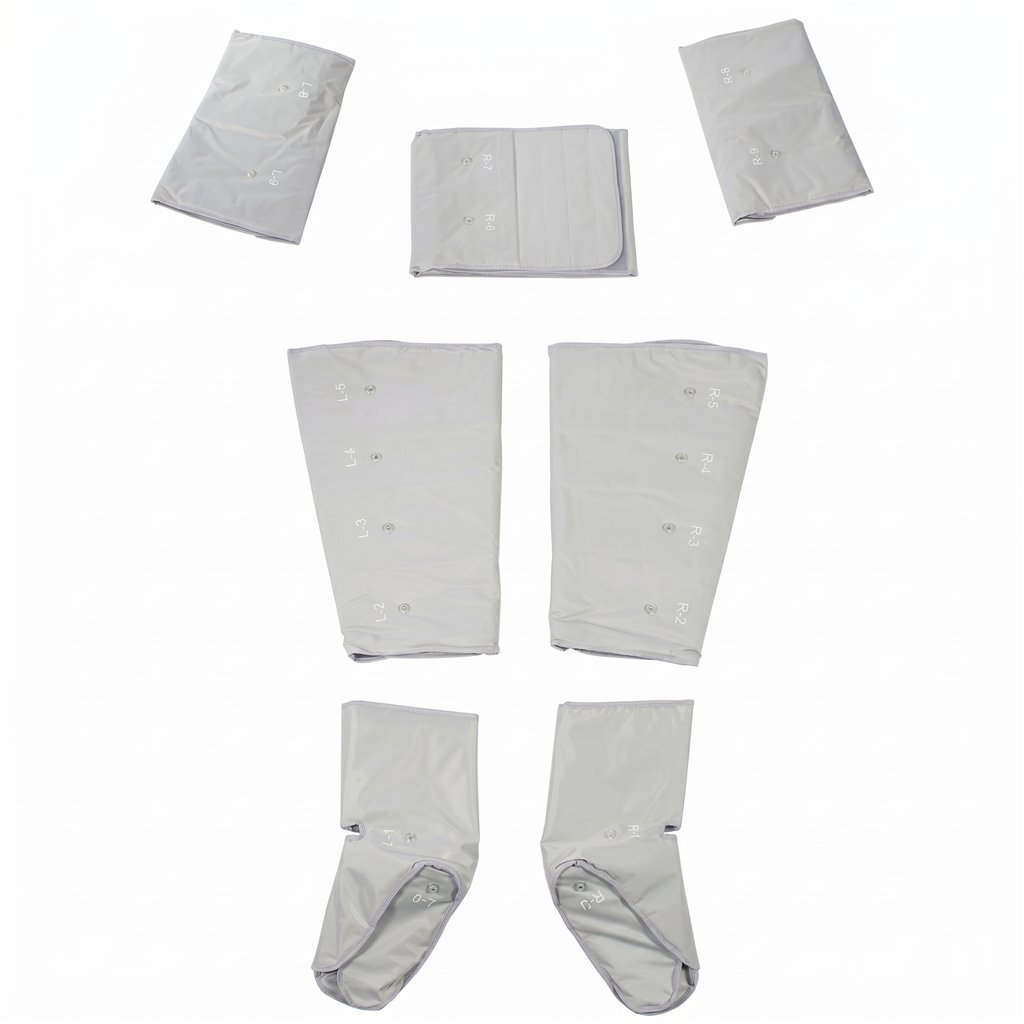

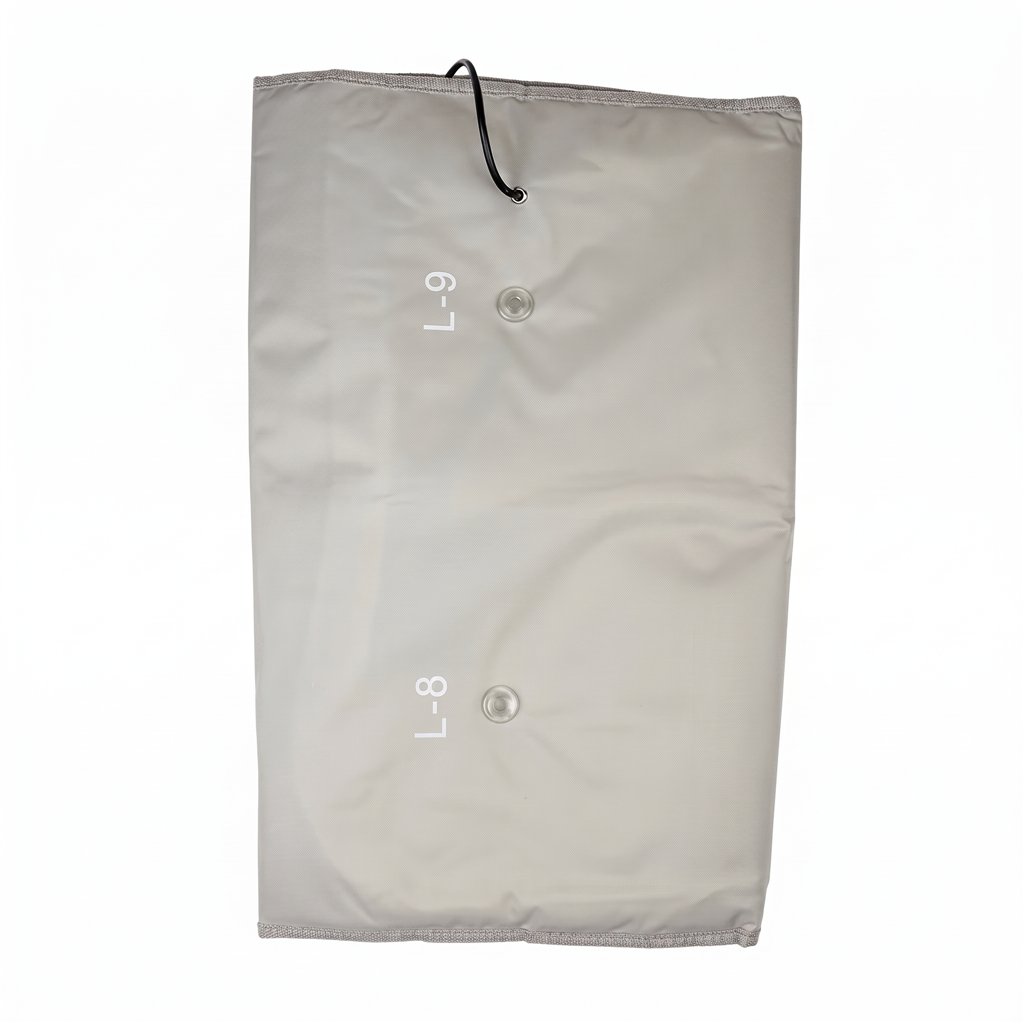

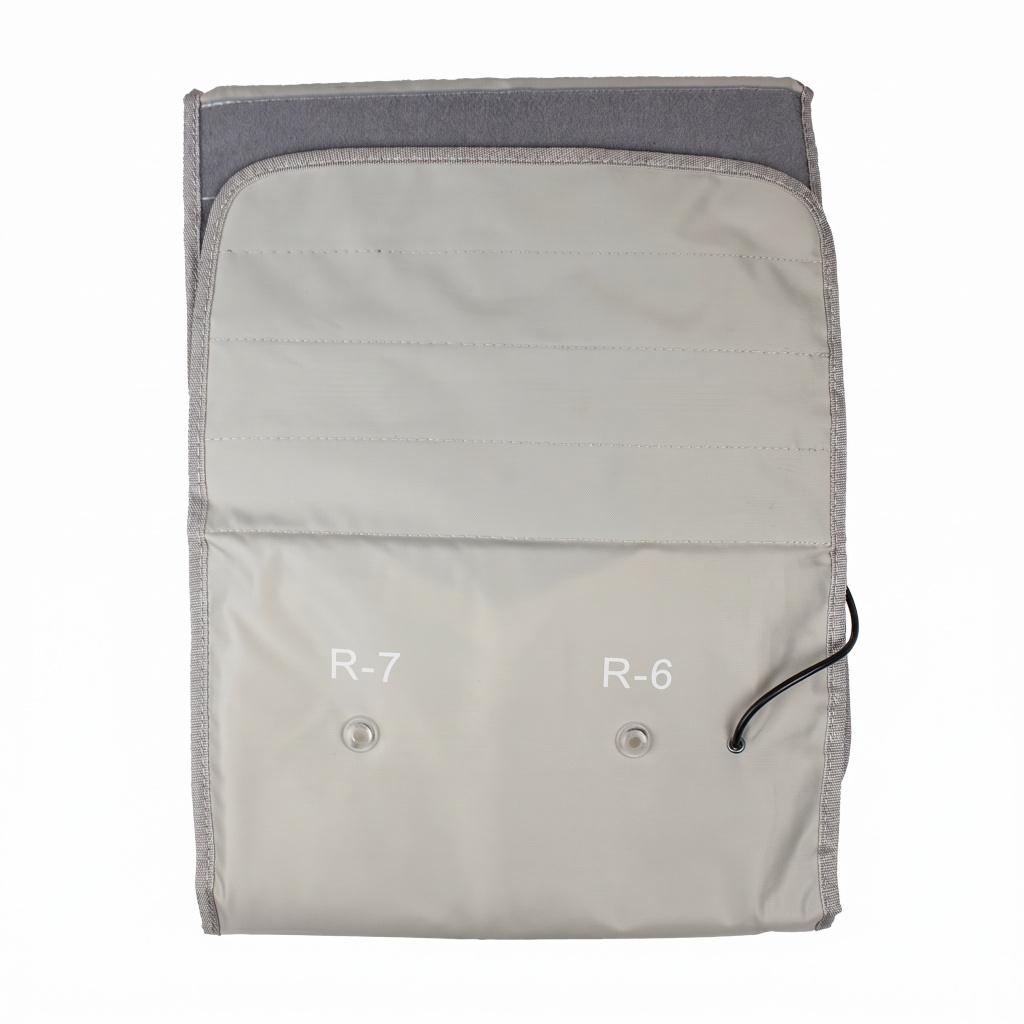

Modular suit for the arms, abdomen, legs and feet

The device includes a modular body suit made up of separate sections rather than one enclosed garment.

This design allows only the sections required for the session to be fitted.

• Right arm Separate module
• Left arm Separate module

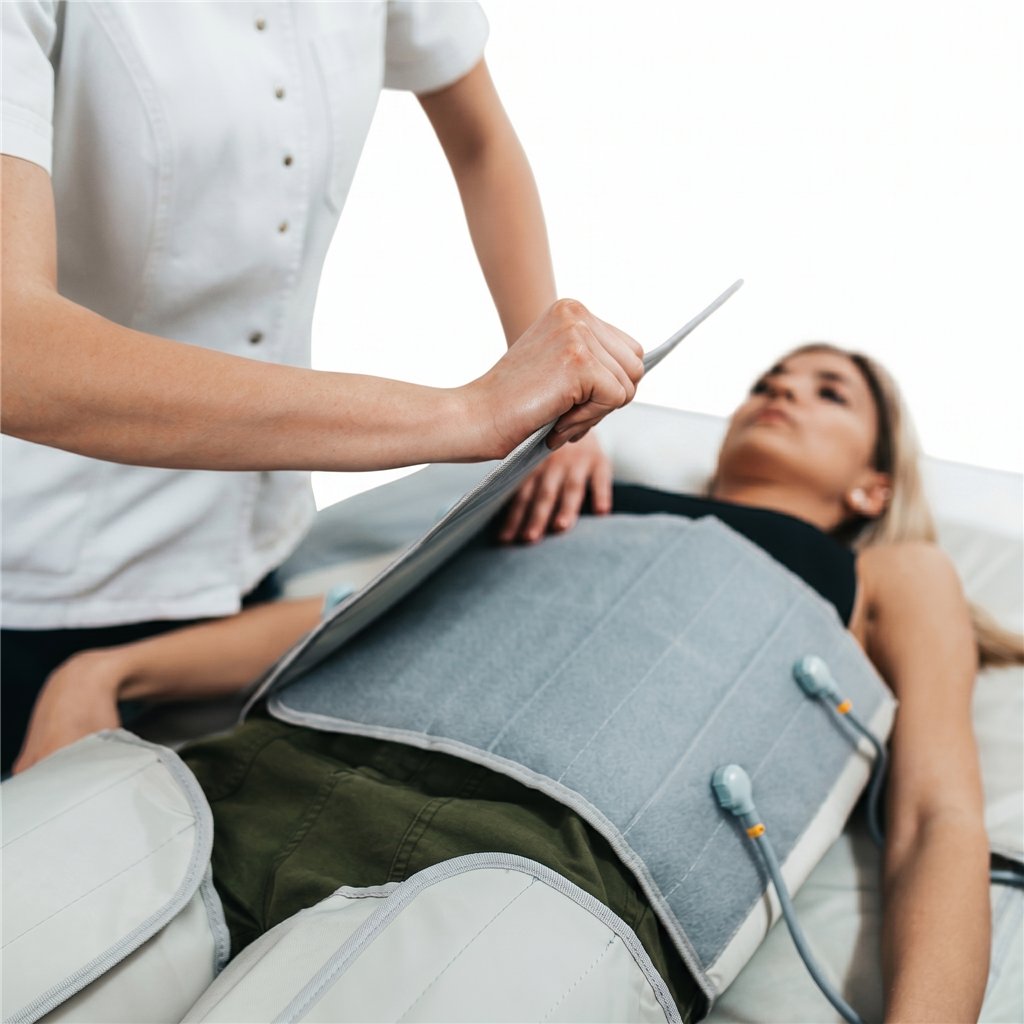

• Abdomen Abdominal module or wrap
• Right leg Separate module
• Left leg Separate module

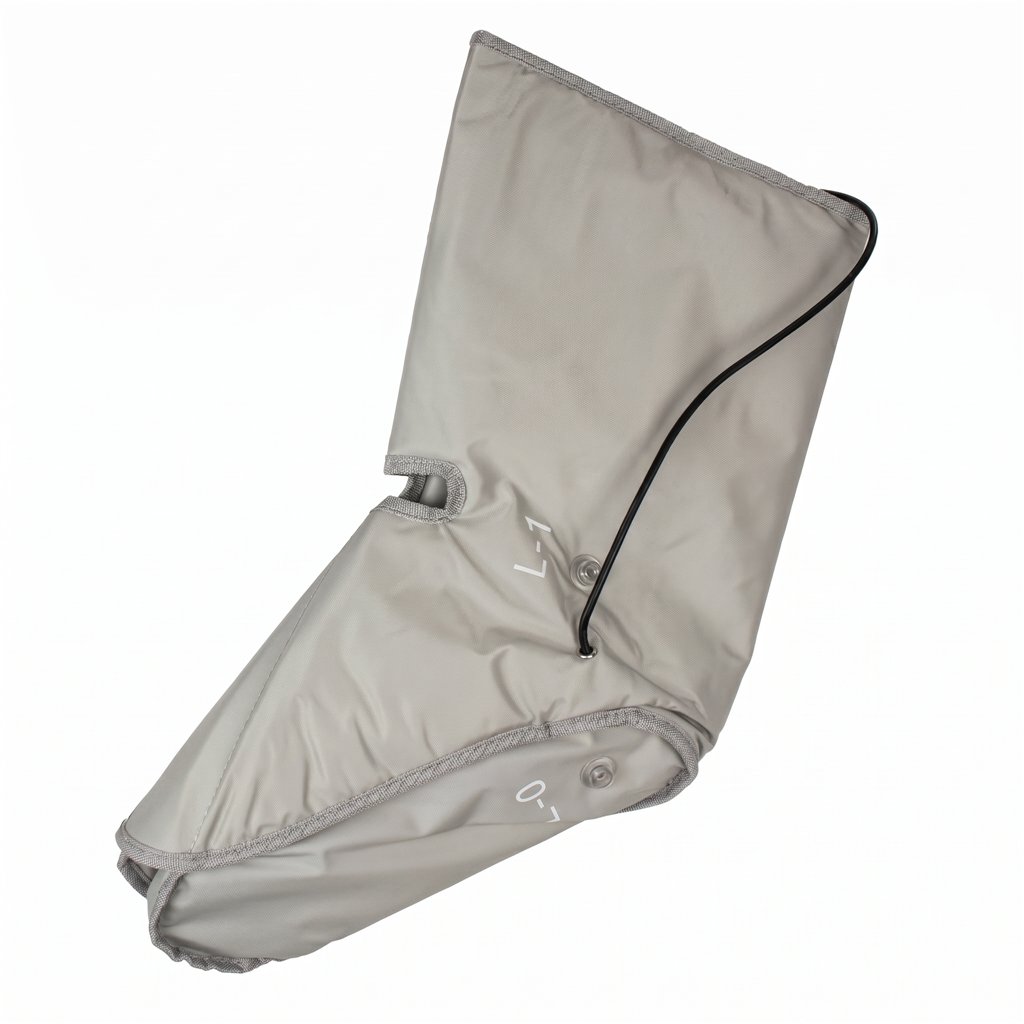

• Right foot Separate module
• Left foot Separate module

Advantages of the modular system in the treatment room

• Allows only the areas included in the protocol to be selected.
• Makes it easier to position the accessories on the client.
• Simplifies removal after each session.
• Facilitates the individual cleaning of each section.
• Helps keep connections better organised.
• Reduces the need to handle suit sections that will not be used.
• Enables the arms, abdomen, legs or feet to be treated separately.

Canvas-style plastic material

The body modules are made from canvas-style plastic material, designed for professional use and to facilitate cleaning and maintenance between sessions.

The cable-management organiser is made from the same type of material.

• Suit material Canvas-style plastic
• Organiser material Canvas-style plastic
• Configuration Modular
• Use Professional

Organiser for tubes and cables

Combining pressotherapy, infrared and EMS requires several different connections. To keep the treatment room organised, the system includes a cable-management organiser designed to route and group tubes and cables.

This solution helps reduce loose connections around the client during the session.

Professional 20-chamber pressotherapy

The pressotherapy function uses a total of 20 air chambers distributed across the different body modules.

The main unit controls air inflation through different operating sequences, generating compression cycles over the connected areas.

The professional can use the full set or select only specific sections of the suit.

• Number of chambers 20
• Pneumatic outlets 10
• Tube numbering 0–9
• Pressotherapy modes 4
• Operation Cyclic or simultaneous
• Control Via touchscreen

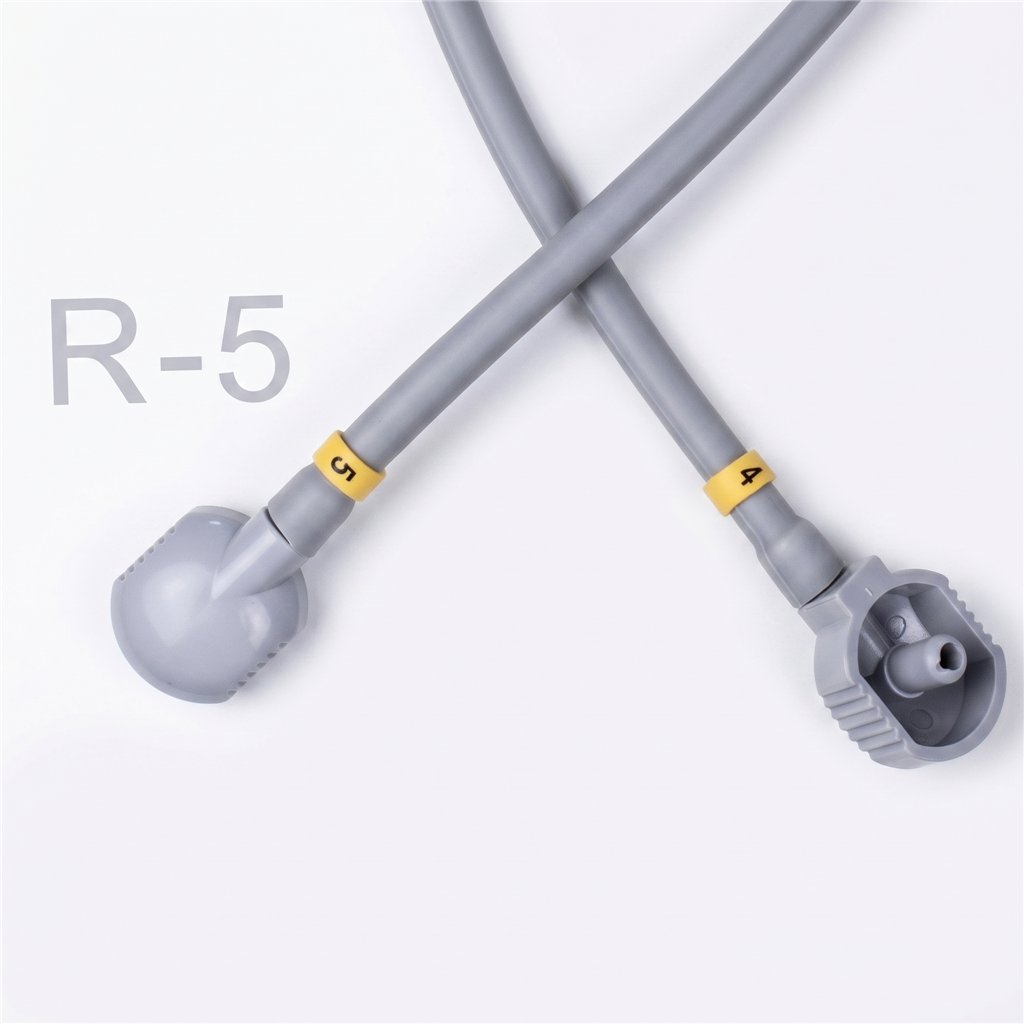

10 numbered pneumatic connections

The garment set uses pneumatic connections identified from 0 to 9.

This numbering enables the tubes to be identified correctly and keeps the complete setup organised before the session begins.

4 pressotherapy modes

The unit has four pressotherapy programmes. Each uses a different inflation sequence.

Mode A – Progressive sequence

Mode A inflates the outlets sequentially from 0 to 9.

As each new outlet activates, the previous one deflates. At the end of the sequence, outlets 0 to 9 inflate together before the sequence starts again.

In terms of application, this mode is also described as a gentle massage and preparation setting.

Mode B – Alternating sequence

Mode B also progresses from outlet 0 to outlet 9, but uses an alternating inflation and deflation sequence.

After completing the sequence, the full set inflates again before a new cycle begins.

The commercial documentation identifies it as a higher-intensity massage mode.

Mode C – Progressive cumulative compression

In mode C, the outlets are activated progressively while the previous outlets remain active as the next one starts.

This produces a cumulative compression sequence.

The commercial programme description particularly associates it with targeted work on the abdomen and thighs.

Mode D – Three simultaneous sequences

Mode D generates three different inflation sequences simultaneously, creating a combined compression pattern.

The programme description associates this mode with enhanced comfort and relaxation.

Comparison of the 4 pressotherapy modes

• Mode A Progressive 0–9 sequence with final simultaneous inflation
• Mode B Alternating inflation and deflation sequence
• Mode C Progressive cumulative compression
• Mode D Three sequences operating simultaneously

Adjustable pressure

The available documentation provides several reference values for system pressure.

• Specified levels 20 / 80 / 120 mmHg
• Specified values in bar 0.10 / 0.22 / 0.32 bar
• Adjustment Via touchscreen

Up to 40 minutes of pressotherapy according to the documentation

The documentation specifies a reference operating time of up to 40 minutes for the pressotherapy function.

• Specified time Up to 40 minutes
• Configuration Via the display
• Adjustment According to the professional protocol

The duration must always be adapted to the selected programme, the pressure used and the client’s individual circumstances.

Far-infrared sauna

The second integrated technology is a far-infrared thermotherapy system.

Heat is generated by circuits integrated into the suit accessories and is used as a thermal complement within aesthetic body treatment protocols.

The function can be used independently or combined with pressotherapy and EMS when included in the professional protocol.

5 infrared connections

The set features 5 dedicated far-infrared connections, numbered from 1 to 5.

• Thermal connectors 5
• Numbering 1–5
• Heat type Dry radiant heat
• Control Individual section control via the display

The thermal and pneumatic connections are differentiated to facilitate device setup.

Area-specific temperature control

The digital display allows the time and temperature of each active section to be adjusted.

Specific thermal outlets can also be activated or deactivated according to the areas being treated.

Precautions at high temperatures

The documentation specifies different reference times for thermotherapy.

• High temperature Do not exceed 20 minutes
• Complex body treatment protocols Up to approximately 45 minutes as a documented reference
• More moderate aesthetic protocols Approximately 30 minutes as a reference

Professional EMS electrical muscle stimulation

The device’s third function is EMS electrical muscle stimulation, used within aesthetic muscle-toning protocols.

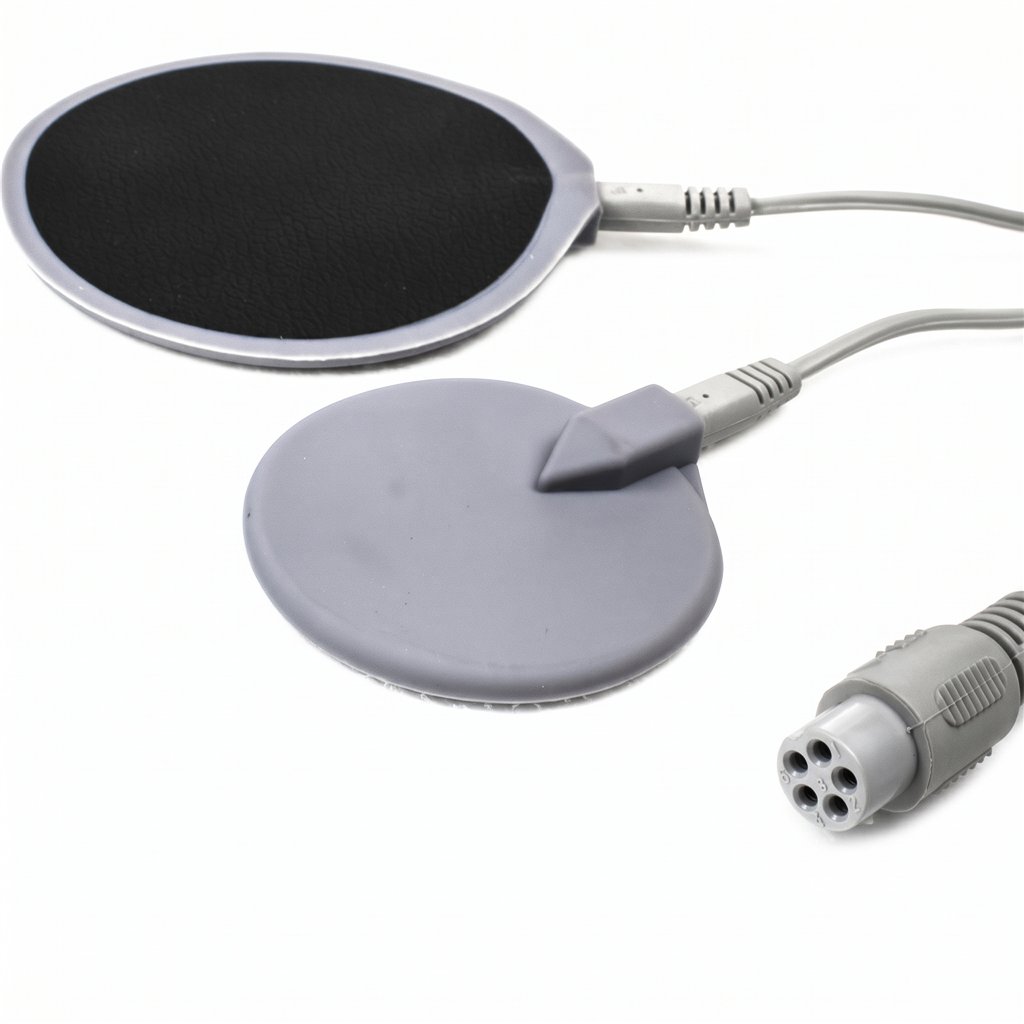

The current is transmitted through 10 electrodes or pads connected to the main unit using dedicated cables.

• Number of electrodes 10
• Type Low-frequency EMS
• Programmes 4
• Minimum frequency 10 Hz
• Maximum frequency 40 Hz
• Connection Positive/negative pairs
• Conductive gel Recommended

4 EMS modes: from 10 to 40 Hz

The unit has four electrical muscle stimulation programmes, each with a different frequency.

EMS mode A – 10 Hz

Operates at a frequency of 10 Hz.

This is the lowest available frequency and is described in the documentation as a gentler treatment option.

EMS mode B – 20 Hz

Operates at 20 Hz, providing an intermediate level within the device’s range.

EMS mode C – 30 Hz

Operates at a frequency of 30 Hz, increasing the stimulation rate compared with the previous programmes.

EMS mode D – 40 Hz

Operates at 40 Hz, the highest frequency among the four preset options.

EMS frequency comparison

• Mode A 10 Hz
• Mode B 20 Hz
• Mode C 30 Hz
• Mode D 40 Hz

Using conductive gel with EMS

When using electrical muscle stimulation, it is recommended to apply conductive gel between the electrode and the skin.

The gel helps maintain an even contact surface and supports the transmission of electrical impulses.

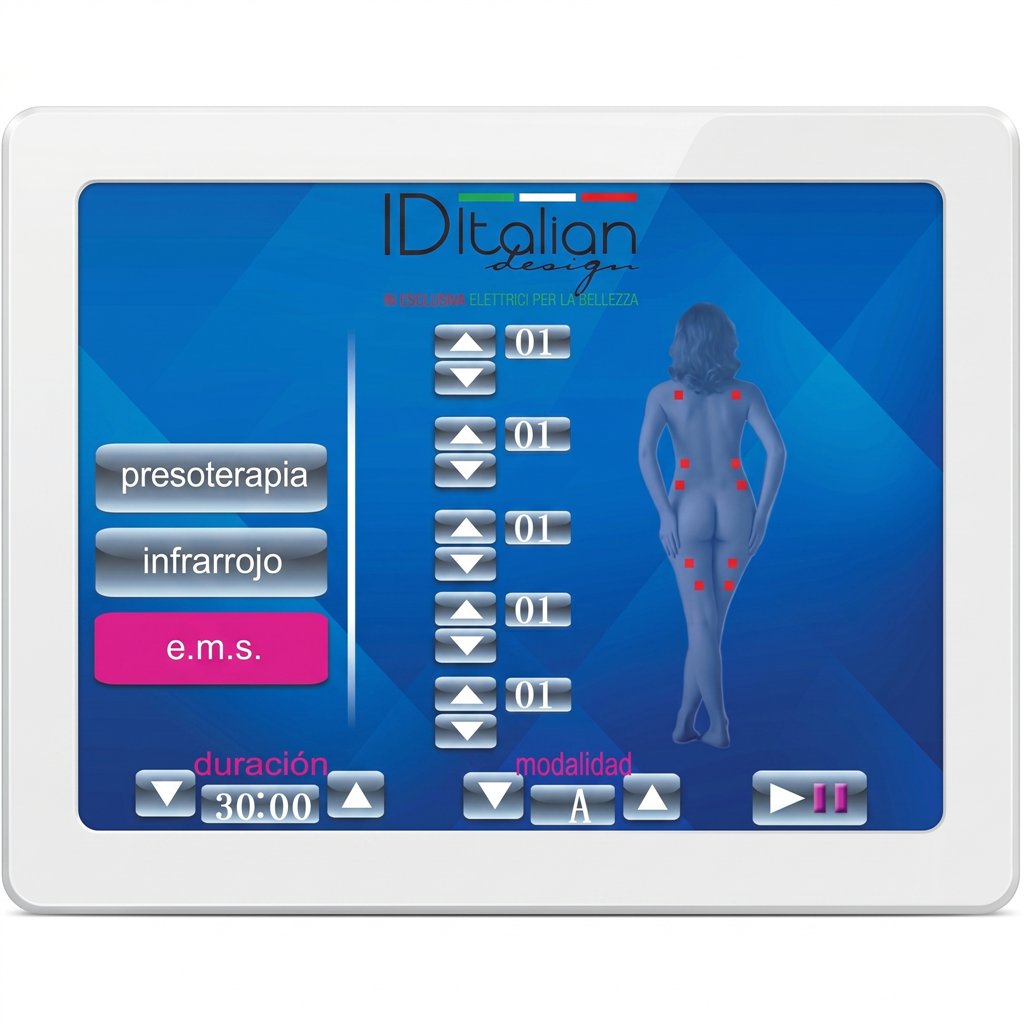

Digital touchscreen

The digital interface provides independent access to the pressotherapy, infrared and EMS controls.

Each function has its own set of parameters.

Pressotherapy controls

• Time display.
• Time adjustment.
• Mode selection.
• Mode display.
• Pressure intensity adjustment.
• Inflation time adjustment for each section.
• Area activation or deactivation.
• Start and pause.

Infrared controls

• Time display.
• Time adjustment.
• Temperature adjustment for each section.
• Outlet activation or deactivation.
• Start and pause.

EMS controls

• Time display.
• Time adjustment.
• EMS mode selection.
• Intensity adjustment for each section.
• Outlet activation or deactivation.
• Start and pause.

Full-body or area-specific treatments

Thanks to the suit’s modular construction and independent outlet control, the professional can prepare different configurations.

Available treatment areas include:

• Arms.
• Abdomen.
• Waist.
• Thighs.
• Legs.
• Feet.
• Targeted muscle areas using EMS electrodes.

Customised body treatment protocols

The system allows a session to be adapted by adjusting different variables:

• Technology used.
• Body areas.
• Pressotherapy programme.
• Pressure.
• Inflation time.
• Temperature.
• Active thermal areas.
• EMS frequency.
• EMS intensity.
• Total time.

Professional beauty treatment applications

For exclusively aesthetic purposes, this device can be incorporated into protocols intended for:

• Body wellbeing and comfort.
• Cosmetic body treatment protocols.
• Aesthetic abdominal treatments.
• Arm treatments.
• Leg treatment protocols.
• Aesthetic thigh treatments.
• Aesthetic muscle toning using EMS.
• Heat application within body treatment protocols.
• Protocols designed to visibly improve the appearance of the skin.
• Protocols designed to visibly improve the appearance of dimpled-looking skin.
• Combined pressure, heat and muscle stimulation sessions.

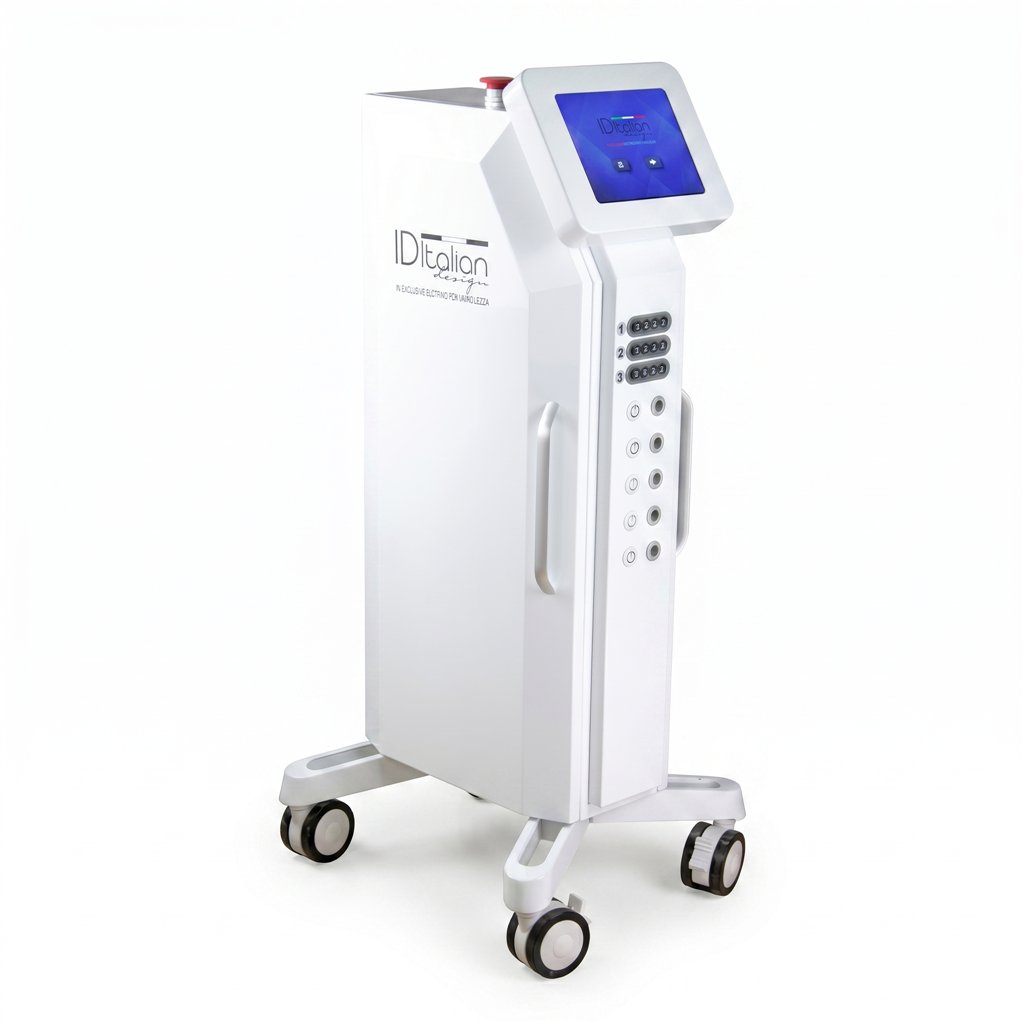

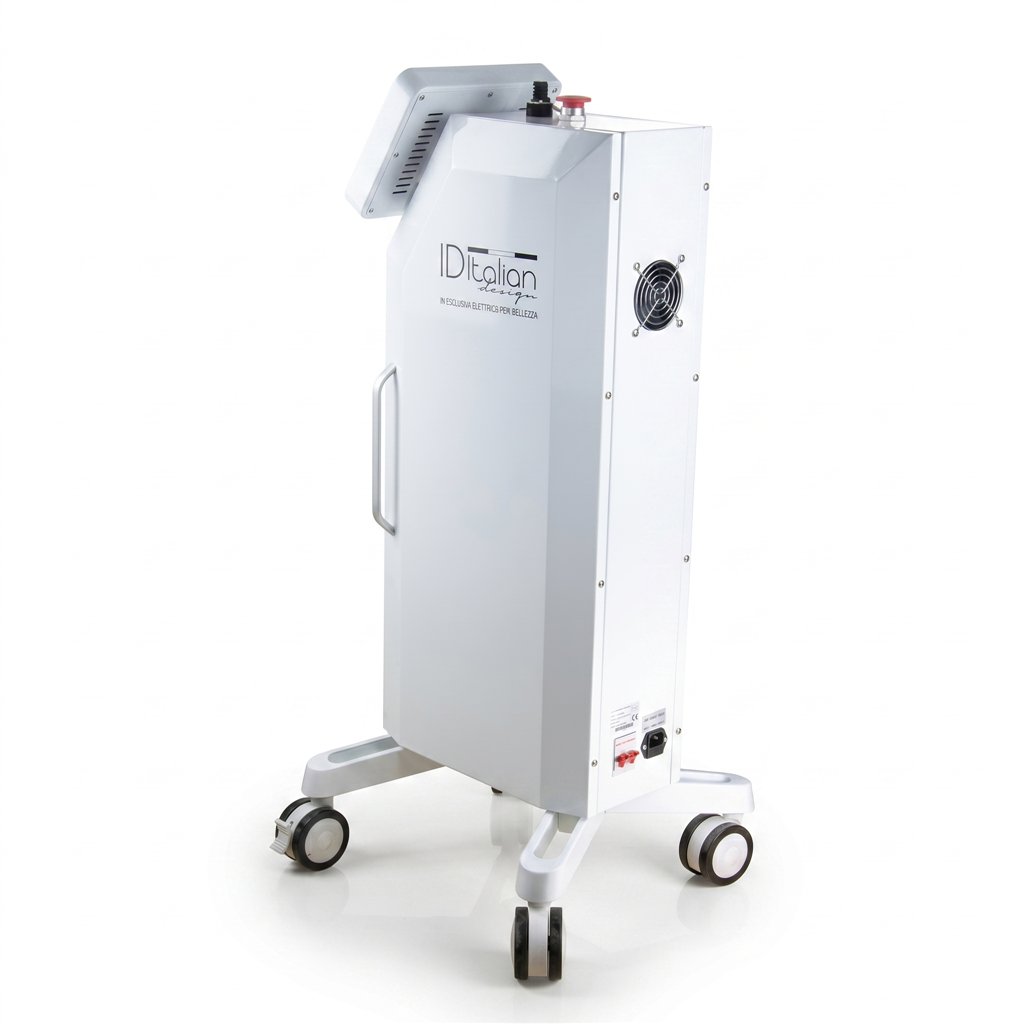

Upright design with castors

The main unit has an upright design with castors, making it easier to move around the premises.

This design can be particularly practical when the device is used in more than one treatment room or needs to be removed from the treatment area between sessions.

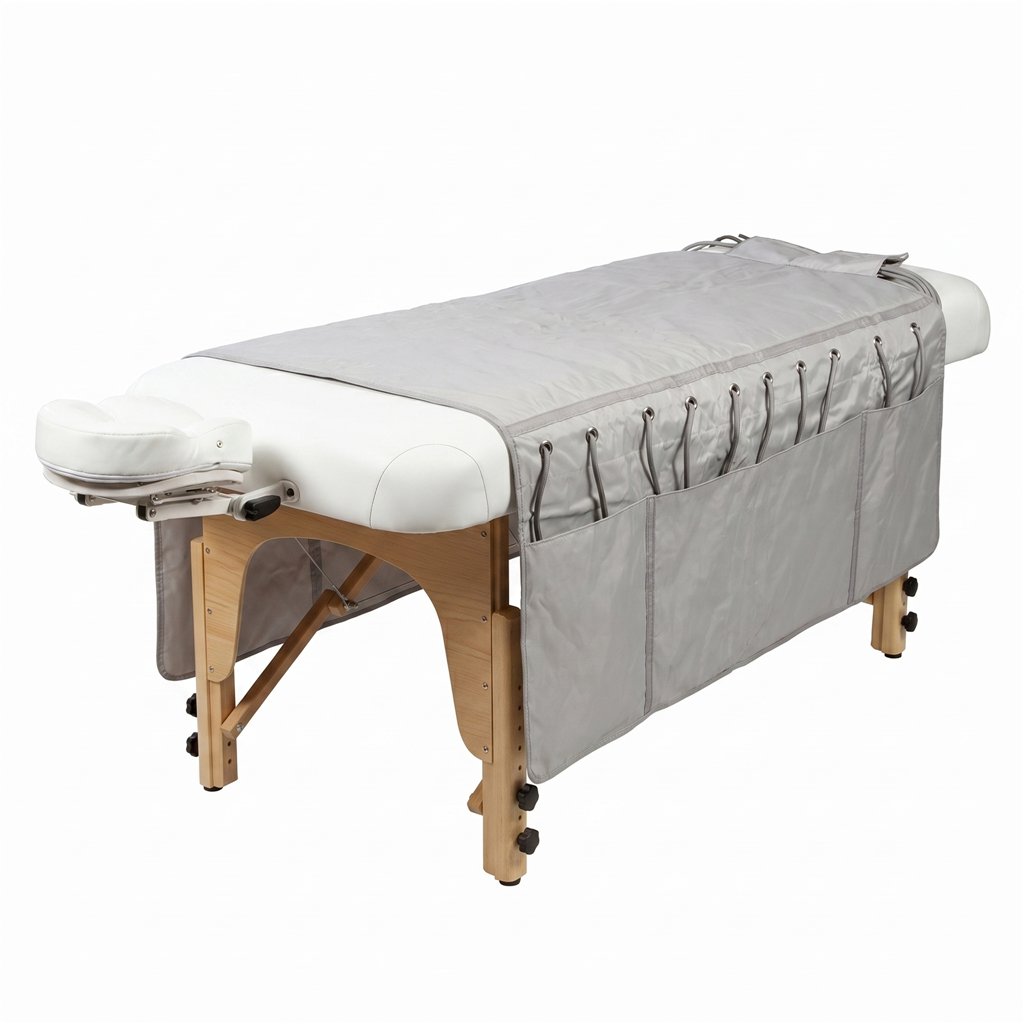

Treatment table protective blanket

The set includes a protective blanket for the treatment table, which helps prepare the treatment area and organise the accessory setup.

The documentation also indicates the presence of compartments to help keep the cables organised.

What is included

• 1 digital main unit.
• 2 arm modules.
• 1 abdominal module or wrap.
• 2 leg modules.
• 2 foot modules.
• 1 treatment table protective blanket.
• 1 cable-management organiser.
• 10 EMS electrodes or pads.
• EMS cables.
• Pressotherapy tubes and connectors.
• Far-infrared cables.
• Spanish-language manual.

Device connections

The unit has separate connections for the three technologies.

• Pressotherapy Dedicated connectors
• EMS Dedicated socket
• Far infrared Dedicated connectors
• Main power switch Yes
• Fuse Yes
• Power socket Yes

Suit connection numbering

• Infrared Connectors 1–5
• Pressotherapy Tubes 0–9
• EMS Dedicated connection on the unit

350 W power

The unit has a specified power rating of 350 W.

• Power 350 W
• Electrical frequency 50 / 60 Hz
• Voltage specified on the product sheet 240 / 110 V
• Operating voltage specified in the documentation 110 V or 220 V depending on configuration

Complete technical specifications

• Device type 3-in-1 pressotherapy machine with infrared sauna and EMS
• Certified model IDMRTSE5 PRESOTERAPIA ELECTRO-BEAUTY SCULPT 8432729063219
• Use Professional
• Pressotherapy Yes
• Far infrared Yes
• EMS electrical muscle stimulation Yes
• Power 350 W
• Specified voltage 240 / 110 V
• Specified operating voltage 110 / 220 V depending on configuration
• Frequency 50 / 60 Hz
• Number of chambers 20
• Pressotherapy modes 4
• Specified pressure 20 / 80 / 120 mmHg
• Specified values in bar 0.10 / 0.22 / 0.32 bar
• Pneumatic connectors 10
• Pneumatic numbering 0–9
• Infrared connectors 5
• Infrared numbering 1–5
• EMS electrodes 10
• EMS mode A 10 Hz
• EMS mode B 20 Hz
• EMS mode C 30 Hz
• EMS mode D 40 Hz
• Suit type Modular
• Areas Arms, abdomen, legs and feet
• Suit material Canvas-style plastic
• Organiser material Canvas-style plastic
• Display Digital touchscreen
• Structure Upright with castors
• Main power switch Yes
• Fuse Yes
• Area-specific control Yes

How to prepare a session

1. Check that the treatment table allows the client to lie down correctly.
2. Place the protective blanket over the treatment table.
3. Carry out the necessary hygiene preparation.
4. Use suitable protective covering or film when required by the protocol.
5. Select the modules required for the areas to be treated.
6. Connect the pressotherapy tubes according to the 0–9 numbering.
7. Check that the pneumatic connectors are in the specified orientation.
8. Connect the infrared cables corresponding to the thermal areas being used.
9. Connect the EMS cables if electrical muscle stimulation will be used.
10. Prepare the electrodes and apply conductive gel.
11. Switch on the main unit.
12. Select pressotherapy, infrared or EMS on the display.
13. Set the time.
14. Select the relevant programme.
15. Adjust the intensity and active areas.
16. Check the client’s comfort.
17. Start the session.

Supervision during the protocol

The professional must supervise operation throughout the session, especially when several technologies are used simultaneously.

The following must be checked:

• Overall client comfort.
• Appropriate module pressure.
• No discomfort in compressed areas.
• Comfortable temperature.
• Correct electrode contact.
• Appropriate EMS intensity.
• Condition of tubes and connections.
• No overheating of accessories.

Skin preparation and hygiene

Appropriate hygiene procedures must be carried out on the treatment areas before fitting the modules.

When body cosmetics are used, a disposable film or protective covering may be applied to prevent direct contact between the product and the inside of the garments.

Cleaning after each session

• Switch off the unit correctly.
• Disconnect the accessories used.
• Clean and disinfect reusable components.
• Open the thermal accessories to allow heat to dissipate.
• Do not store the garments while hot.
• Do not store the garments while damp.
• Check the condition of tubes and connections.
• Clean the electrodes according to the applicable instructions.
• Organise the cables using the organiser.

Cable and tube maintenance

• Do not force the connections.
• Do not pull directly on the cables.
• Do not bend the pneumatic tubes sharply.
• Do not store cables under tension.
• Inspect the connectors regularly.
• Check the condition of the electrodes.
• Keep the device in a clean, dry place.

Do not heat the garments without a client

Compliance and certification

• Certified model IDMRTSE5 PRESOTERAPIA ELECTRO-BEAUTY SCULPT 8432729063219
• CE – EMC Directive 2014/30/EU
• RoHS Directive 2011/65/EU
• CE – LVD Directive 2014/35/EU

Standards applied in the Declaration of Conformity

• EN IEC 55014-1:2021.
• EN IEC 61000-3-2:2019+A1:2021.
• EN 61000-3-3:2013+A1:2019+A2:2021.
• EN IEC 55014-2:2021.
• IEC 62321-5:2013.
• IEC 62321-4:2013+AMD1:2017 CSV.
• IEC 62321-7-1:2015.
• IEC 62321-7-2:2017.
• IEC 62321-6:2015.
• IEC 62321-8:2017.
• EN IEC 60335-2-115:2023+A11:2023.
• EN 60335-1:2012+A11:2014+A13:2017+A1:2019+A14:2019+A2:2019+A15:2021.
• EN 62233:2008.

Contraindications and exclusions for use

The device documentation specifies the following exclusions:

• Pregnancy.
• Pacemakers.
• Other implanted electronic devices.
• Epilepsy.
• Active infections.
• Damaged or compromised skin for EMS without prior assessment.
• Impaired sensation in the area.
• Haemorrhage.
• Recent wounds.
• Fever.
• Thrombosis.
• Thrombophlebitis.
• Severe varicose veins.
• Severe blood pressure disorders.
• Heart conditions.
• Respiratory insufficiency.
• Abdominal hernia.
• Children.

Specific pressotherapy precautions

• Begin with moderate pressure.
• Increase gradually according to tolerance.
• Do not overtighten the modules.
• Do not treat recent wounds.
• Do not use over active infections.
• Stop the session if pain or any abnormal sensation occurs.

Specific infrared precautions

• Check that heat sensitivity is normal.
• Do not use on areas with impaired sensation.
• Do not maintain high temperatures for prolonged periods.
• Do not exceed 20 minutes when using a high temperature.
• Do not leave the accessories heating without a client.
• Stop the function immediately if the heat feels excessive.

Specific EMS precautions

• Do not use during pregnancy.
• Do not use on people with pacemakers.
• Do not use on people with implanted electronic devices.
• Do not use on people with epilepsy.
• Do not use on children.
• Do not place over damaged skin.
• Do not place over active infections.
• Use conductive gel.
• Begin at a low intensity.
• Increase gradually according to tolerance.

For professional use only

This device is intended for beauty salons and professional establishments.

The operator must have a thorough understanding of:

• Module installation.
• Tube and cable connections.
• The four pressotherapy modes.
• Pressure settings.
• Temperature control.
• EMS frequencies.
• Electrode placement.
• Contraindications.
• Hygiene procedures.
• Safety measures.

Exclusively for aesthetic purposes

Why choose a 3-in-1 pressotherapy machine

A multifunction system combines different treatment options within a single platform.

• 20-chamber pressotherapy.
• 4 pneumatic sequences.
• Pressure control.
• Infrared thermotherapy.
• Area-specific temperature control.
• Electrical muscle stimulation from 10 to 40 Hz.
• 10 electrodes.
• Modular suit.
• Digital touchscreen control.

Digital Premium at a glance

Frequently asked questions about the Premium Digital 3-in-1 Pressotherapy Machine

Which technologies does it include?

It combines pneumatic compression pressotherapy, far infrared and EMS electrical muscle stimulation.

Can they be used separately?

Yes. All three technologies have independent controls and can be selected according to the protocol.

Does it have a touchscreen?

Yes. It features a digital touchscreen with independent access to pressotherapy, infrared and EMS.

How many chambers does it have?

The suit uses 20 air chambers.

How many pressotherapy modes does it have?

It has 4 modes: A, B, C and D.

Which mode does the documentation recommend for starting?

The technical documentation identifies mode C as the recommended starting option.

How many pressotherapy tubes does it use?

The garment set uses 10 pneumatic connections numbered from 0 to 9.

How many infrared connections does it have?

The set has 5 thermal connections numbered from 1 to 5.

Can the temperature be adjusted by area?

Yes. The display allows the time and temperature of the different active sections to be adjusted.

How many EMS electrodes are included?

It includes 10 electrodes or pads.

Which EMS frequencies does it use?

It has four frequencies: 10 Hz, 20 Hz, 30 Hz and 40 Hz.

Is conductive gel required?

Yes. The use of suitable conductive gel is recommended during EMS electrical muscle stimulation.

Is the suit made in one piece?

No. It is a modular suit with separate accessories for the arms, abdomen, legs and feet.

What material is it made from?

The suit and organiser use canvas-style plastic material.

What is its power rating?

The specified power rating is 350 W.

Which voltage does it use?

The documentation shows different references to 110, 220 and 240 V depending on the configuration. The rating plate on the supplied unit must be checked.

Is it CE marked?

The compliance documentation identifies conformity with EMC 2014/30/EU, LVD 2014/35/EU and RoHS 2011/65/EU for the specified certified model.

What is the certified model?

IDMRTSE5 PRESOTERAPIA ELECTRO-BEAUTY SCULPT 8432729063219.

Can it be used during pregnancy?

No. Pregnancy is expressly listed among the exclusions for use.

Can it be used by people with a pacemaker?

No. It is also unsuitable for people with other implanted electronic devices.

Can it be used on people with thrombosis?

No. The documentation lists thrombosis and thrombophlebitis among the exclusions for use.

Can it be used on children?

No. The documentation specifies that it must not be used on children.

Does pressotherapy treat circulatory or lymphatic conditions?

It must not be presented as a treatment for circulatory or lymphatic conditions, lymphoedema or other diseases. It is intended exclusively for aesthetic and wellbeing purposes.

Can EMS be used to treat muscular conditions?

No. The electrical muscle stimulation function of this device is intended for aesthetic body treatment protocols and must not be presented as a medical treatment.

Premium Digital 3-in-1 Pressotherapy Machine: a complete treatment room platform

The Premium Digital 3-in-1 Pressotherapy Machine combines a 20-chamber pressotherapy system, four pneumatic programmes, far-infrared thermotherapy and EMS electrical muscle stimulation with four frequencies ranging from 10 to 40 Hz.

Its modular suit allows the arms, abdomen, legs and feet to be selected independently, while the organiser keeps the connections tidy and the touchscreen centralises parameter control.

This combination enables customised body treatment protocols to be performed using the technologies and areas required for each session without the need for multiple main units.

Video course

Supporting video covering the general operation of the device, accessory installation and setup in the treatment room.
