Weelko HIGHTECH COMBI FIT WKB009 3 in 1 Pressotherapy with Thermotherapy and Professional EMS Electrostimulation

HIGHTECH COMBI FIT Weelko WKB009: 3-in-1 pressotherapy with thermotherapy and professional electrical muscle stimulation

Professional

The HIGHTECH COMBI FIT WKB009 is a 3-in-1 pressotherapy device by Weelko with a touchscreen, designed for professional use in beauty salons and aesthetic centres. It combines pressotherapy, thermotherapy and EMS electrical muscle stimulation in a single device for complete body treatment protocols in the treatment room.

It includes garments for legs, feet, arms and waist, as well as a storage blanket, EMS electrodes, connectors and elastic bands. Its configuration allows different body areas to be treated with pressure, temperature and intensity control according to the aesthetic protocol and the client’s tolerance.

It is intended for non-invasive aesthetic body treatments focused on wellness, comfort, body contouring work and the visual improvement of the skin’s appearance, always from an exclusively aesthetic and professional approach.

Main functions

• Pressotherapy
• Thermotherapy
• EMS electrical muscle stimulation

Main features

• 3-in-1 pressotherapy device by Weelko.
• Digital device with touchscreen for professional use.
• Allows the three functions to be combined in the same session.
• Body-area treatment with specific garments.
• Time, pressure, temperature and intensity control from the screen.
• Adaptable settings according to body area and aesthetic objective.

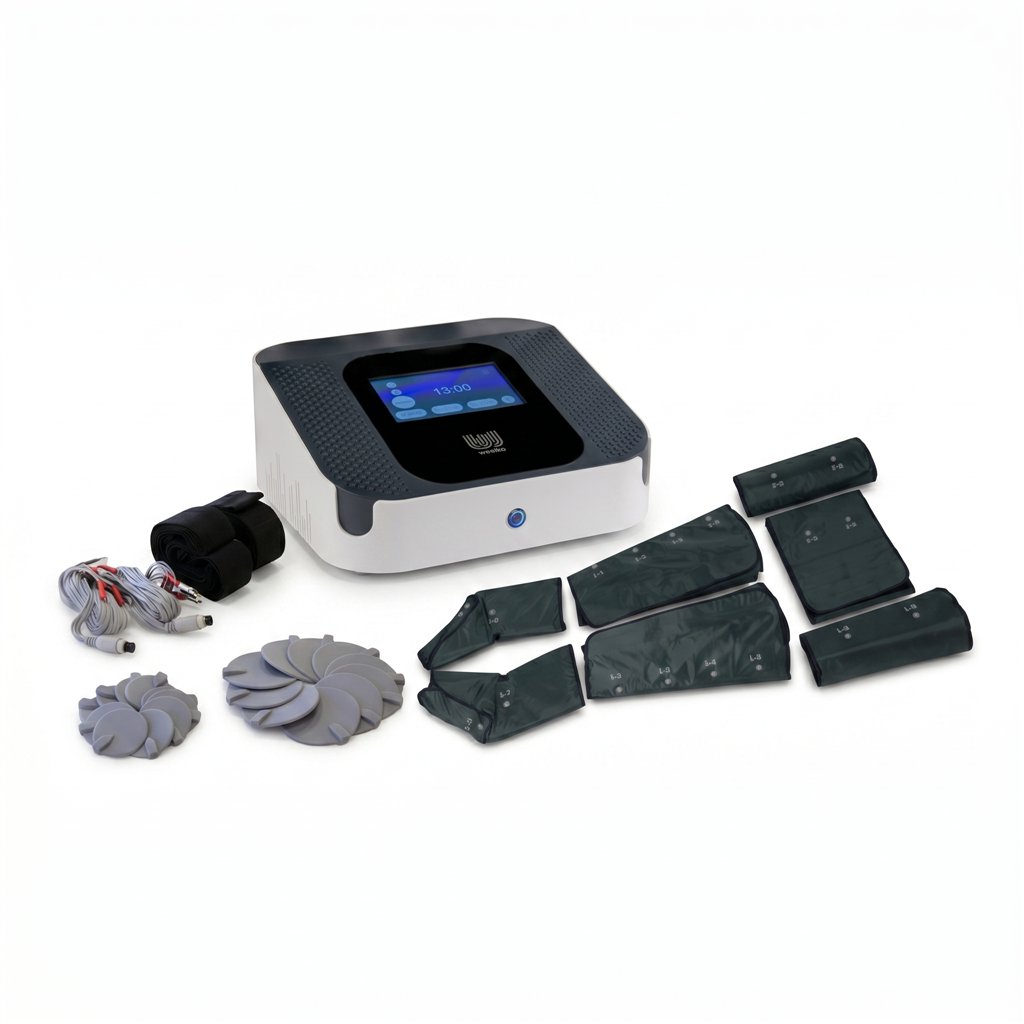

What the device includes

• 1 main unit
• 1 right leg garment
• 1 left leg garment
• 1 right arm garment
• 1 left arm garment
• 1 right foot garment
• 1 left foot garment
• 1 waist / abdominal belt
• 1 storage blanket
• 1 set of tubes
• 10 large EMS electrodes
• 10 small EMS electrodes
• 2 cables with 10 outputs
• 20 elastic bands
• 1 power cable

Technical data

• Model WKB009
• Brand Weelko
• Line HIGHTECH COMBI FIT
• Type of device 3-in-1 pressotherapy device
• Functions Pressotherapy + thermotherapy + EMS electrical muscle stimulation
• Weight 21 kg
• Console size 38 x 34 x 15 cm
• Blanket size 135 x 172 cm
• Maximum temperature 50 ºC
• Package size 66 x 38 x 45 cm
• Gross package weight 12 kg
• Input voltage 220-240 V
• Input frequency 50 Hz
• EMS working power 15 W
• Rated power 280 W
• EMS working frequency 10-40 Hz
• EMS pulsed microcurrent 50 mA
• Air flow 0/40 L/min
• Air pressure 0-0.4 kg/cm2
• Air pressure pulse 0-15 s
• Air channels 10
• Air chambers 20

Device description

The Weelko WKB009 combines sequential pneumatic compression, heat and electrical muscle stimulation in a single body treatment system. This combination allows complete aesthetic body treatment protocols to be carried out in the treatment room, with the option to work on different areas and adapt the session according to the client’s comfort and tolerance.

The pressotherapy function must be understood exclusively as part of an aesthetic protocol for body wellness and the visual improvement of the skin’s appearance. Thermotherapy provides adjustable heat by area, while EMS enables electrical muscle stimulation work with different programmes and intensities.

Aesthetic applications

• Aesthetic body protocols focused on wellness and comfort.
• Complementary use in body contouring treatments from an aesthetic approach.
• Aesthetic work on legs, arms, abdomen and waist.
• Complementary use in protocols to visually improve the appearance of the skin.
• Combined body sessions with air pressure, heat and EMS.

Pressotherapy

The pressotherapy function works through sequential pneumatic compression distributed across 10 channels and 20 air chambers. It allows aesthetic body protocols to be performed on different areas of the suit and offers 4 operating programmes.

• Programme A Linear sequence by areas up to final combined inflation.
• Programme B Alternating sequence by areas up to final combined inflation.
• Programme C Progressive cumulative inflation by areas.
• Programme D Simultaneous inflation of legs, abdomen and arms from distal to proximal.

• Pressotherapy programmes 4
• Inflation intensity levels 3
• Default time 30 minutes
• Air channels 10
• Air chambers 20

Thermotherapy

The thermotherapy function works with 5 treatment areas with independent temperature regulation. It is intended for aesthetic body protocols focused on comfort and tissue preparation in the treatment room.

• Thermotherapy areas 5
• Maximum temperature 50 ºC
• Control Independent regulation by section

EMS electrical muscle stimulation

The EMS function works with 20 electrodes, 10 large and 10 small, for different body areas. It allows 4 programmes to be selected and the intensity of each electrode to be adjusted independently.

• Small electrodes for arms, abdomen and shoulders.
• Large electrodes for legs and back.
• Use with conductive gel and elastic fixing bands.
• Red cable as the positive pole and black cable as the negative pole.

• EMS programmes 4
• Intensity per electrode 1-15
• EMS working frequency 10-40 Hz
• EMS pulsed microcurrent 50 mA
• Default time 30 minutes

Areas included in the suit

• Right leg
• Left leg
• Right arm
• Left arm
• Right foot
• Left foot
• Waist

General instructions for use

• Connect the power cable to the rear panel.
• Correctly connect the tubes, blanket, suit and EMS cables according to the corresponding output.
• Place the blanket on a flat surface and protect it with disposable paper.
• Wrap the garments around the user’s body, using a disposable garment underneath the suit.
• For EMS, clean the skin beforehand, apply conductive gel and place the electrodes on the chosen area.
• Switch on the device from the front panel and select the desired menu on the screen.
• Select pressotherapy, far infrared or EMS according to the function to be used.
• Adjust time, intensity and programme according to the client’s tolerance and the aesthetic protocol.
• Press PLAY/PAUSE to start or pause the treatment.

Maintenance and cleaning

• Connect and disconnect tubes and electrodes carefully to extend their service life.
• Clean the suit with a damp cloth after each treatment.
• Clean the electrodes with a damp cloth and a suitable disinfectant product.
• After thermotherapy, open the suit to release accumulated heat.
• Do not open or inspect the internal components of the device.
• If the blanket shows tears or deterioration, replace it before using the device again.

Precautions for use

• Do not tighten the suit excessively on the client’s body.
• During the treatment, always check that the temperature and electrical intensity are comfortable.
• Adequate hydration is recommended before and after the treatment.
• Do not leave the suit heating with no user inside.
• For EMS, always start at minimum intensity and increase it progressively.
• Do not remove the electrodes from the skin before switching the device off completely.
• Do not use the device in humid environments, bathrooms or outdoors.
• If the power cable is damaged, it must be replaced by qualified personnel.

Compliance and directives

• Low Voltage Directive 2014/35/EU
• Electromagnetic compatibility 2014/30/EU

Contraindications and exclusions of use

• Do not use during pregnancy.
• Do not use on clients with pacemakers or other cardiac rhythm control devices.
• Do not use on people with epilepsy.
• Do not use on skin with cutaneous infections.
• The pressotherapy function must be presented only from an aesthetic and wellness approach, never as a treatment for circulatory or lymphatic conditions.
