Weelko 1.5 ATA semi-reclining hyperbaric chamber

Weelko 1.5 ATA semi-reclining hyperbaric chamber

The Weelko  hyperbaric chamber is a semi-reclining unit designed for wellness environments, professional centres and home use, with an adjustable operating pressure between 1.2 and 1.5 ATA. Its configuration combines a flexible chamber, support structure, ergonomic inner chair and an all-in-one auxiliary unit for air supply, oxygen supply and cooling.

The semi-reclining design allows use in three ergonomic positions: seated, semi-reclined and fully lying down. This versatility helps adapt the user’s posture during the session and improves comfort inside the chamber, while maintaining practical access for the operator.

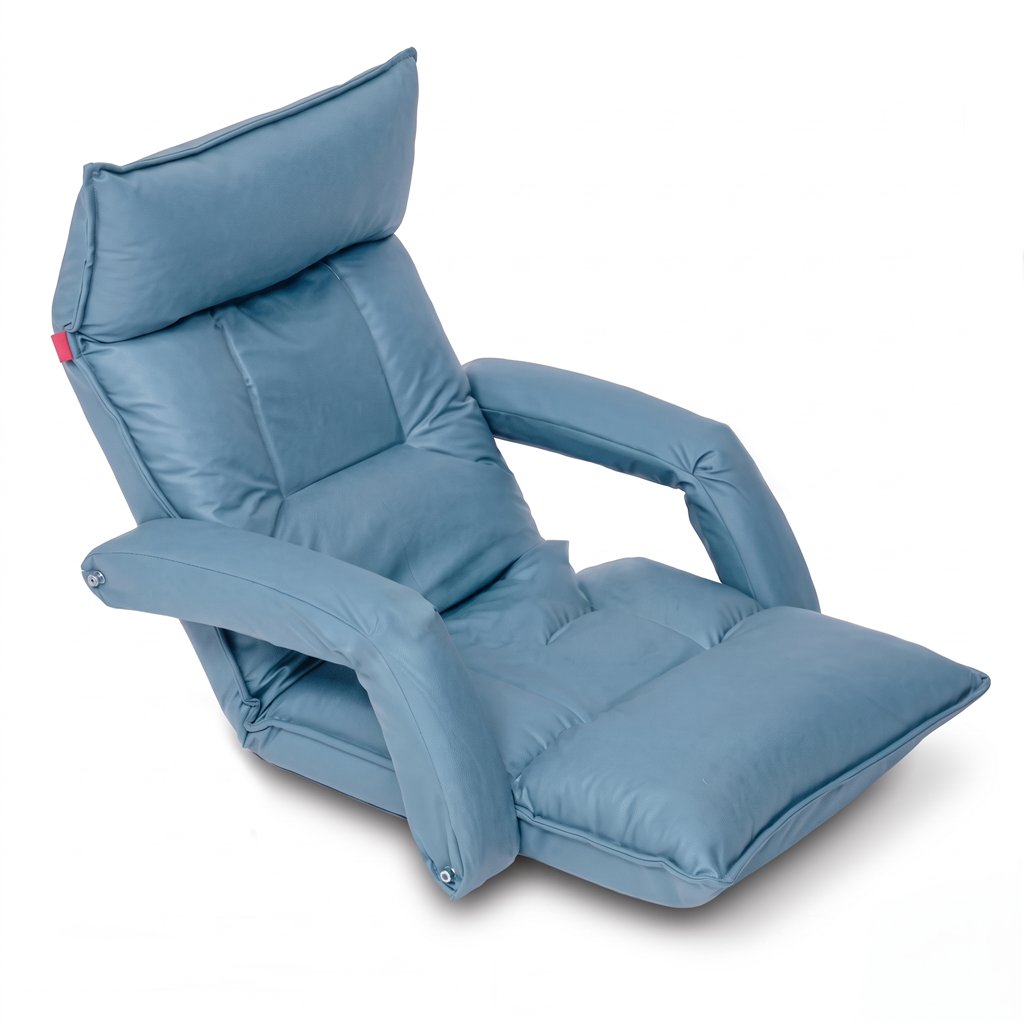

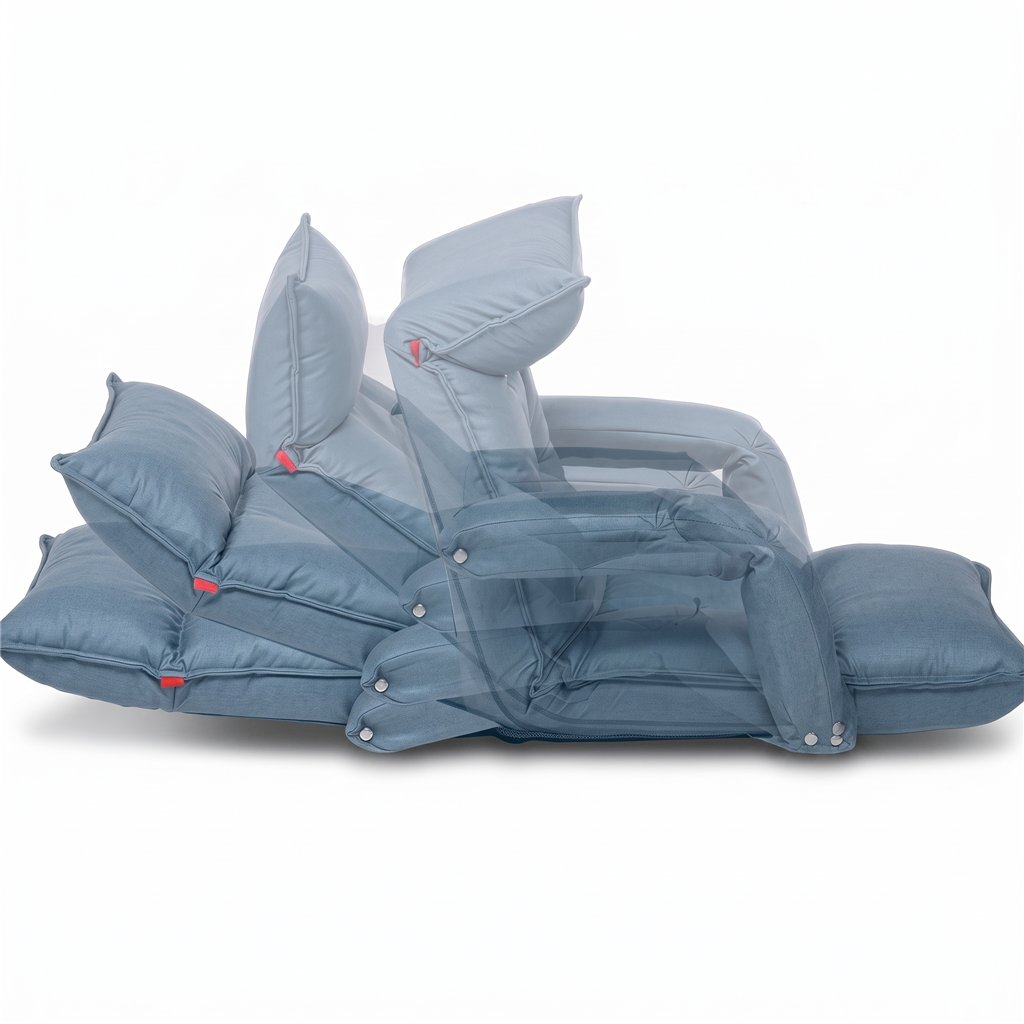

Semi-reclining design with 3-position inner chair

The unit incorporates a 3-position inner chair, intended to adjust the posture according to the usage protocol and the user’s comfort. The seated position is practical for quick access or sessions with less recline; the semi-reclined position provides more relaxed support; and the fully lying position offers a more restful experience inside the chamber.

The chamber is made from TPU with a metal / steel structure and integrates a modular steel frame. The HF heat-sealed seams, high-quality YKK zippers and panoramic windows contribute to a robust and functional assembly for continued use, always within the operating conditions indicated for this type of equipment.

All-in-one auxiliary unit

The chamber is supplied with an all-in-one auxiliary unit that integrates the compressor, oxygen concentrator and cooling system. This configuration centralises the main operating elements in a single module, making installation and handling of the whole system easier.

The system includes a 10 LPM oxygen concentrator, an oxygen flow rate of 10 l/min, indicated oxygen purity of +/- 90-93% O2 and an air flow rate of 74 l/min. The stated power is 1100 W / 1.5 HP. In addition, the integrated cooling system helps support more stable operation during use.

Pressure control and safety elements

The working pressure is adjustable between 1.2 and 1.5 ATA. The unit is equipped with a dual internal and external pressure gauge, allowing the pressure to be checked from both inside and outside the chamber. It also incorporates an emergency valve and is designed for single-person operation.

The chamber features 4 panoramic / double-layer panoramic windows, supporting visibility from inside and outside. Its high-quality YKK zippers, with a 2-curved zipper configuration, and construction without toxic glues complete a design focused on durability and user comfort.

Included equipment

• Hyperbaric chamber Semi-reclining format
• Inner chair 3 ergonomic positions
• Auxiliary unit Compressor, oxygen concentrator and cooling system
• Oxygen concentrator 10 LPM
• Cooling Integrated
• Pressure control Dual internal and external pressure gauge
• Safety Emergency valve

Technical specifications

• Brand Weelko
• Reference WKMED000034
• Product type Semi-reclining hyperbaric chamber
• Operating pressure 1.2 - 1.5 ATA
• Adjustable pressure 1.2 - 1.5 ATA
• Type of use Professional and home use
• Chair positions 3 ergonomic positions: seated, semi-reclined and fully lying down
• Chamber material TPU + metal / steel structure
• Structure Modular steel structure
• Seams HF heat-sealed seams
• Adhesives No toxic glues
• Zippers High-quality YKK zippers / 2 curved zippers
• Windows 4 panoramic / double-layer panoramic windows
• Operation Single-person operation
• Chamber dimensions 180 x 90 x 110 cm / 230 x 100 x 120 cm
• Chamber weight 36 kg / 46 kg
• Auxiliary unit dimensions 75 x 35 x 75 cm
• Auxiliary unit weight 112 kg
• Oxygen flow rate 10 l/min
• Oxygen purity +/- 90-93% O2
• Air flow rate 74 l/min
• Power 1100 W / 1.5 HP
• Cooling Integrated
• Pressure gauges Dual internal and external pressure gauge

Professional and wellness use

The Weelko 1.5 ATA semi-reclining hyperbaric chamber is intended for facilities looking to incorporate wellness equipment with a complete and comfortable configuration. Its format allows the user to be positioned in different postures, while the auxiliary unit concentrates the main compression, oxygen concentration and cooling functions.

For correct installation, use and maintenance, the equipment must be handled in accordance with the manufacturer’s instructions and the operating conditions applicable to soft hyperbaric chambers. In a professional setting, use should be carried out by informed personnel or under suitable supervision.
