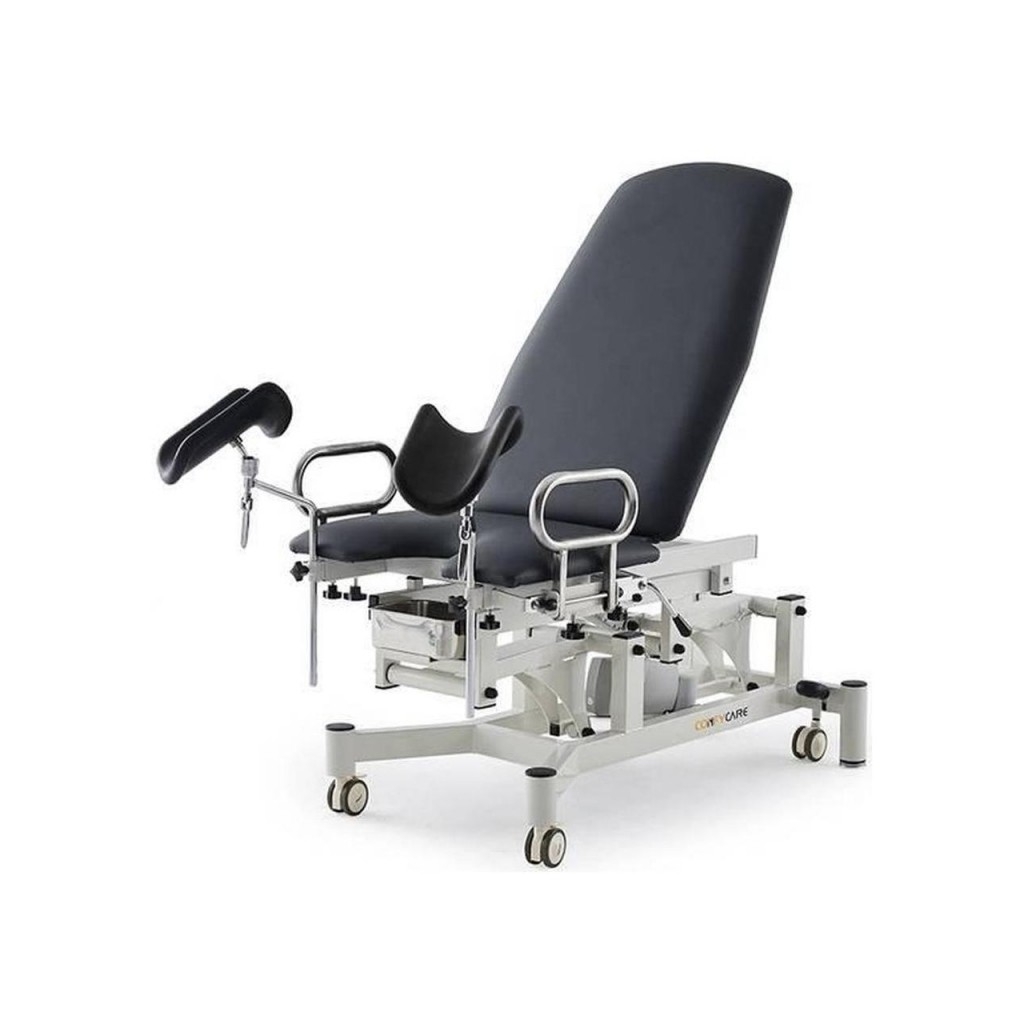

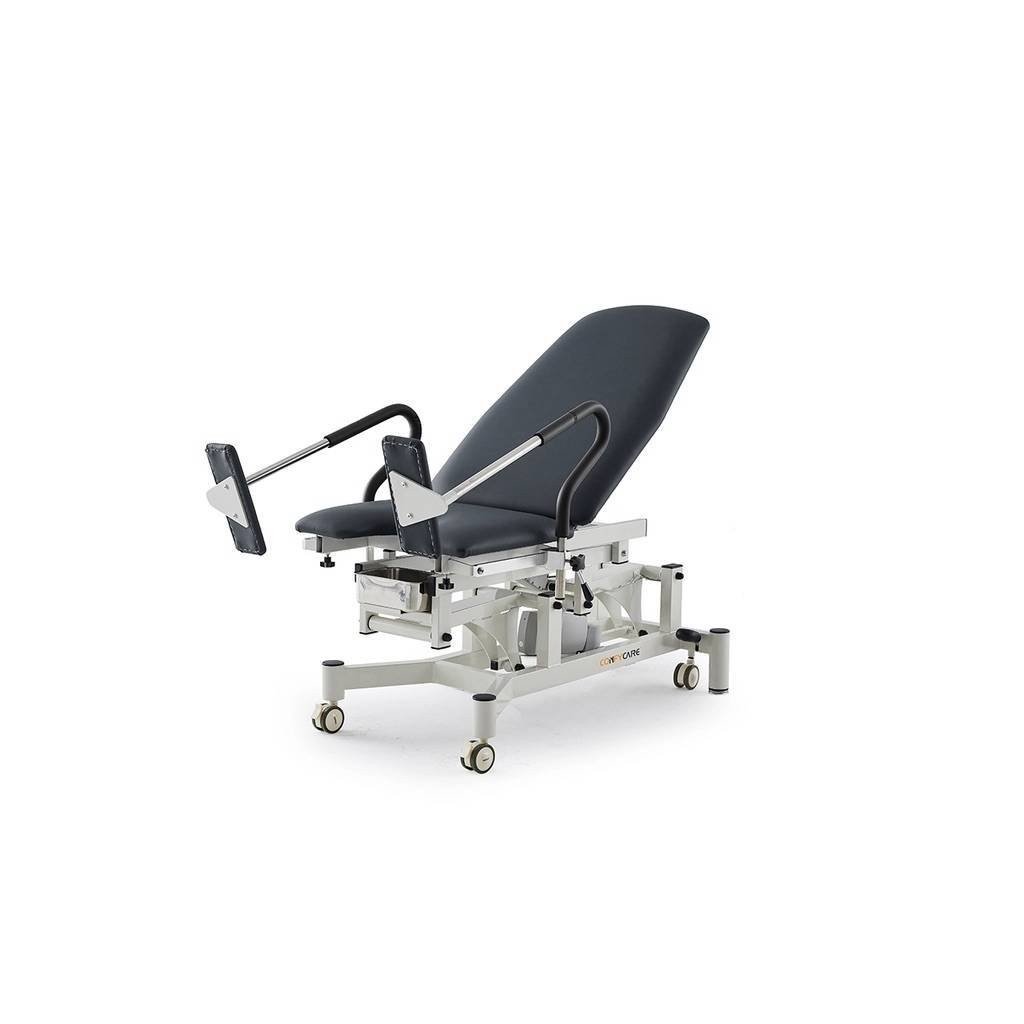

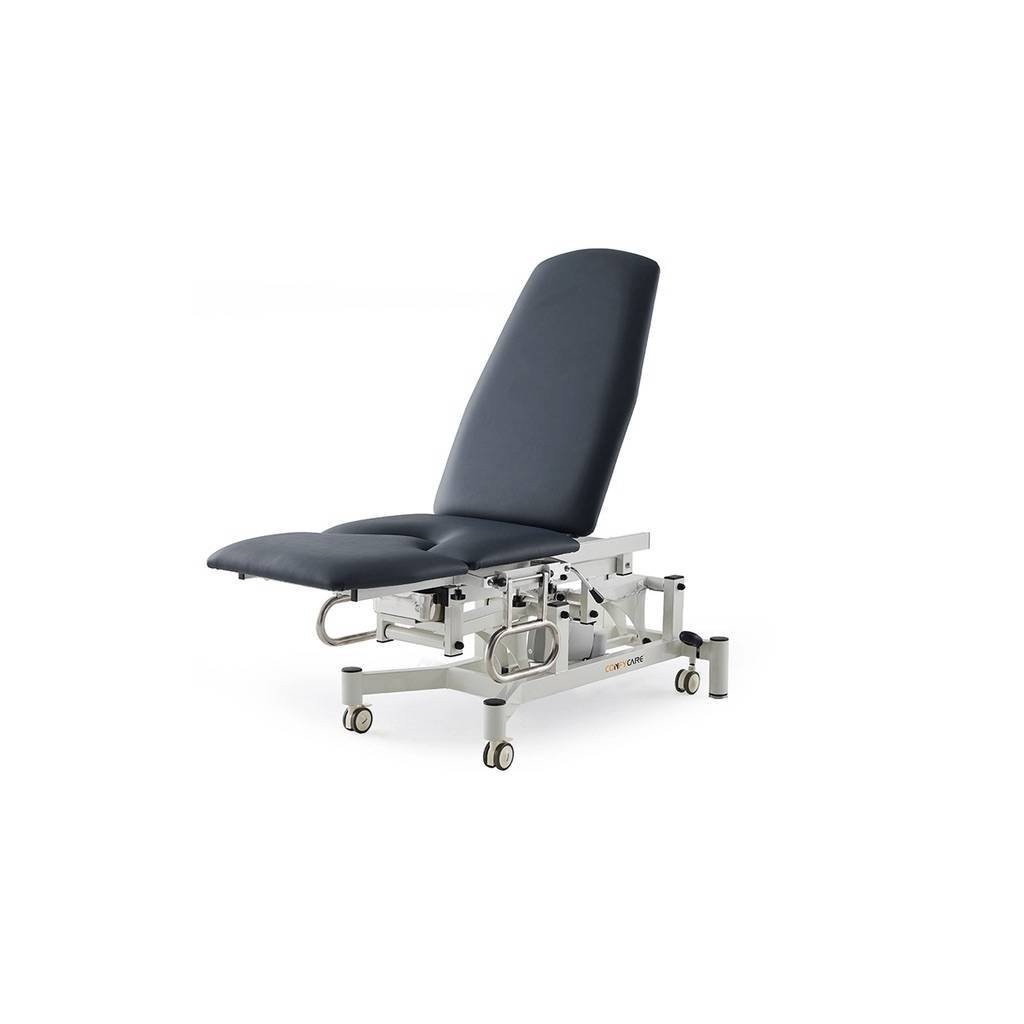

OB electric gynaecological chair, 2 motors – white base, grey upholstery

OB 2-motor electric gynaecology chair – white base and grey upholstery

CE marking

The OB electric gynaecology chair by Coinfycare is designed for examinations and outpatient procedures in clinics, health centres and hospitals. It combines a white base with grey upholstery in medical-grade PVC, and is equipped with 2 motors to adjust height and seat tilt by foot pedal.

A stable, comfortable and practical unit for consulting rooms with high patient turnover, with a 250 kg load capacity and standard clinical accessories.

Main features

• 2 TiMOTION motors for electric height adjustment and seat tilt by foot pedal.
• Approximate height range of 62–104 cm in ~30 s.
• Backrest up to 65° and approximate seat tilt of 20°.
• Usable cushion dimensions of 185 x 60 cm with 42.5 + 46.5 + 91 cm sections.
• 5 cm padding with 36 kg/m³ foam.
• Grey medical-grade PVC upholstery, resistant to fire, stains, mould, oil, water and wear.
• Accessories included: stirrups, foot supports, waste tray and side rails.
• Retractable Ø75 mm castors and adjustable feet for uneven floors.
• White base with rounded legs for enhanced safety.
• Maximum load capacity of 250 kg and approximate weight of 79 kg.

Performance in the consulting room

The OB improves treatment room workflow thanks to its 62–104 cm electric height adjustment and seat tilt by foot pedal, allowing fast transitions between examination, sample collection and minor dressings without repositioning the patient.

The backrest up to 65° provides a comfortable posture for medical history taking, ultrasound or check-ups, while the 20° tilt helps provide a clear working field.

Standard clinical accessories

Includes stirrups and foot supports to position the legs securely, side rails for patient support and a waste tray to keep the area clean.

The rounded legs and clear perimeter improve safety around the chair.

Patient comfort

The 5 cm padding with 36 kg/m³ foam provides stable, comfortable support, reduces pressure points and makes longer sessions easier without discomfort.

The medical-grade PVC in grey maintains a spotless appearance and can be cleaned in seconds with neutral products, reducing turnaround times between patients.

Mobility and maintenance

The 75 mm retractable castors allow the chair to be moved for cleaning and locked in place instantly; the adjustable feet compensate for minor floor irregularities.

The structure supports 250 kg, providing reassurance during intensive daily use.

Installation and logistics details

With a weight of 79 kg and packaging measuring 149 x 73 x 69 cm, delivery to the clinic is straightforward.

The combination of a white base and grey upholstery integrates into gynaecology, general medicine, family planning and diagnostic imaging consulting rooms that require a reliable, easy-to-clean chair.

Technical specifications

• Model OB (Ref. EL3603.2.A66.WF).
• Type electric gynaecology chair with 2 motors.
• Electric height adjustment 62–104 cm (~30 s).
• Backrest up to 65°; seat with approx. 20° tilt.
• Cushion dimensions 185 x 60 cm (sections 42.5 + 46.5 + 91 cm).
• Padding 5 cm | 36 kg/m³ foam.
• Upholstery grey medical-grade vinyl PVC, resistant to fire, stains, mould, oil, water and wear.
• Accessories stirrups, foot supports, waste tray, side rails.
• Mobility retractable Ø75 mm castors and adjustable feet.
• Structure white base with rounded legs.
• Maximum load capacity 250 kg; approx. weight 79 kg; package 149 x 73 x 69 cm | 0.75 m³.
• Warranty 5 years structure / 3 years electrical components. Certifications CE, FDA, ISO 13485:2016.
