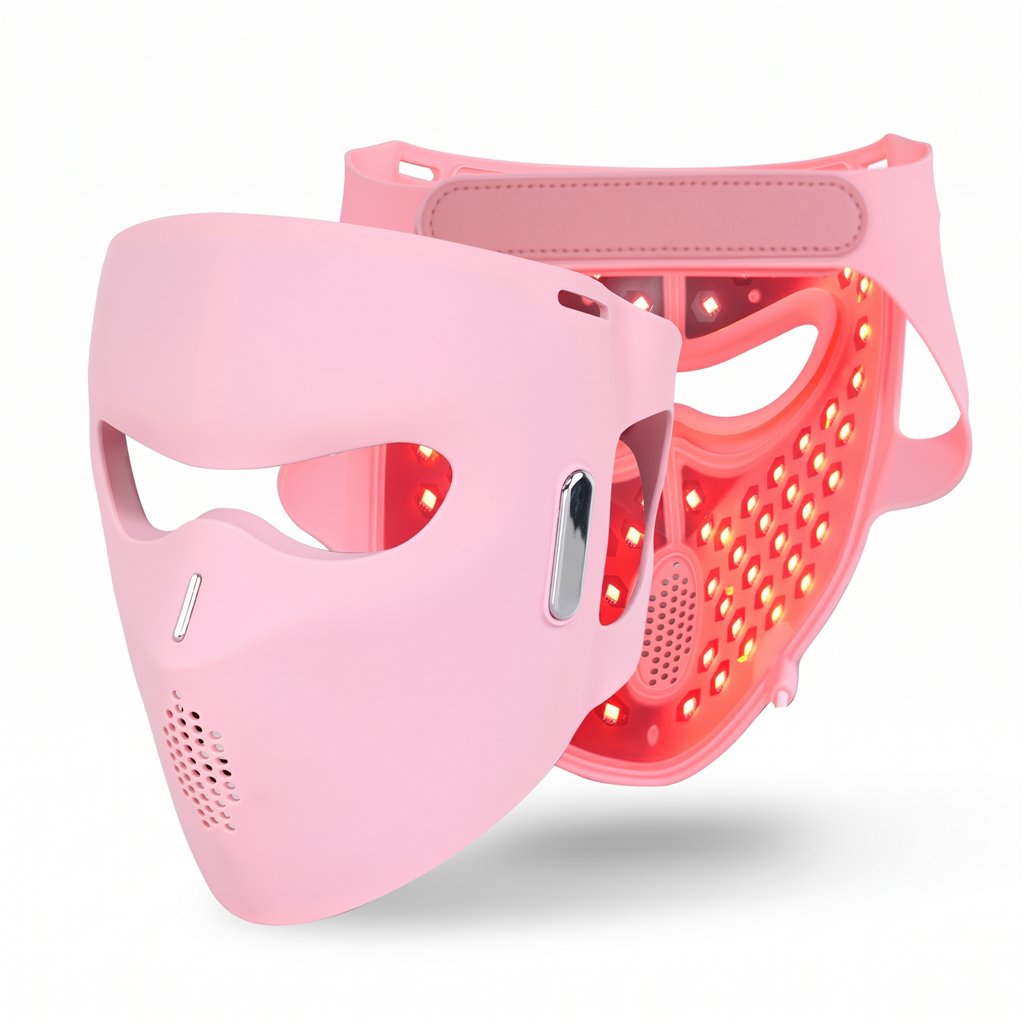

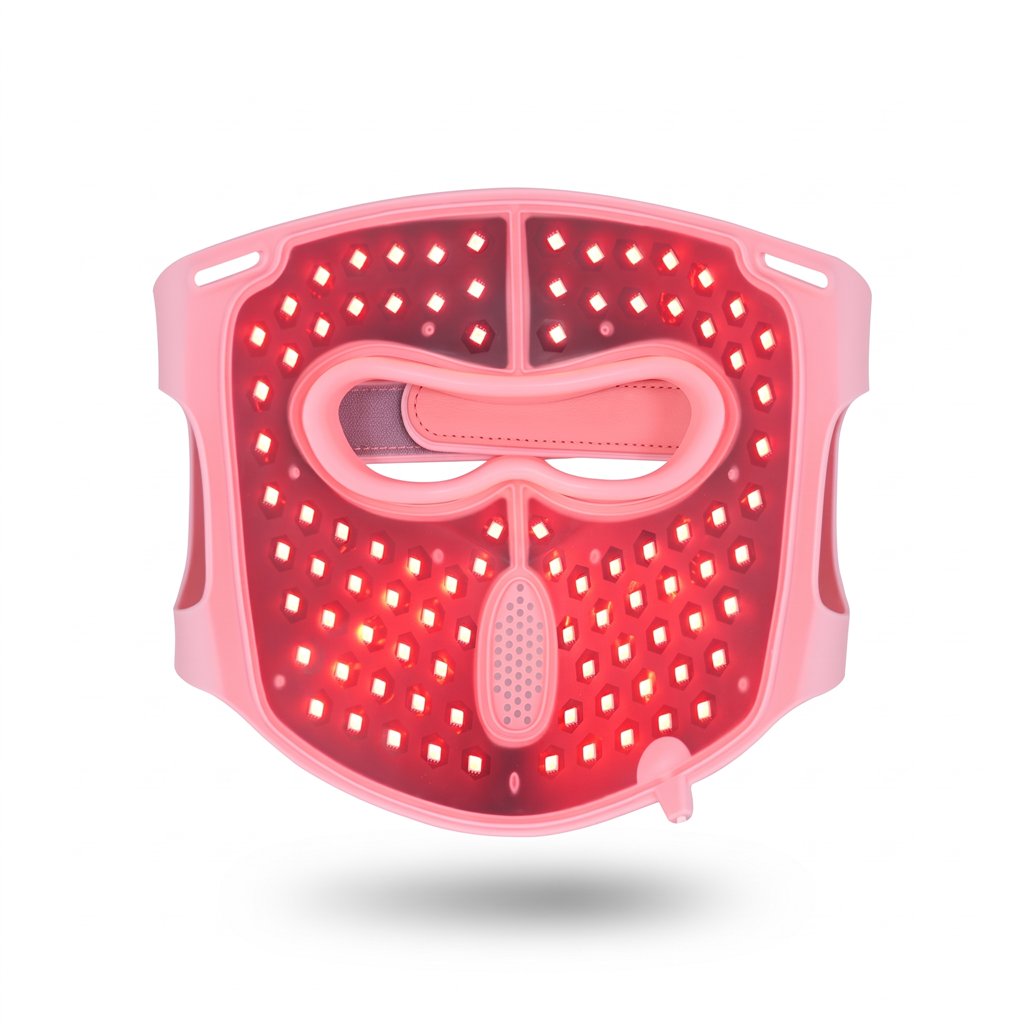

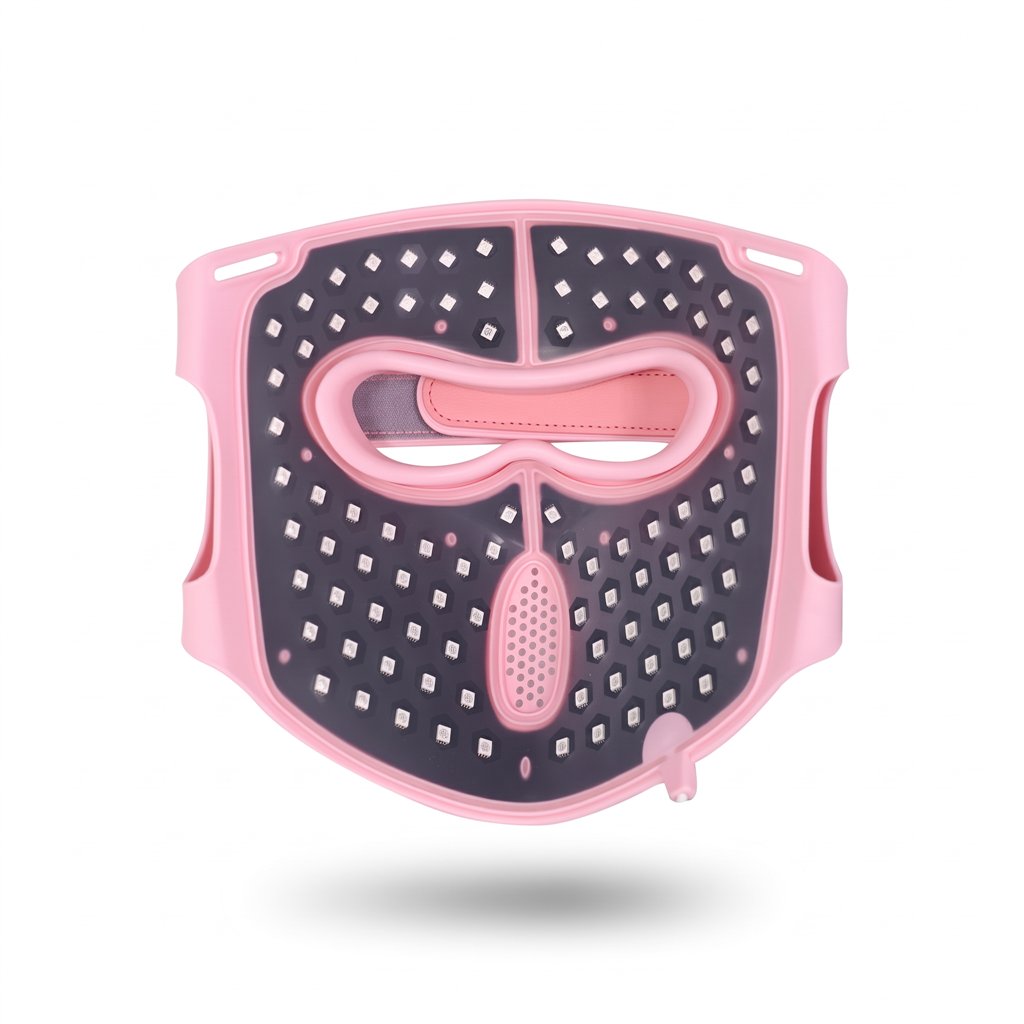

G11 multiespectral LED facial phototherapy mask

G11 multiespectral LED facial phototherapy mask

The G11 LED facial mask is a phototherapy device for cosmetic use, designed to work with different light wavelengths on the face. Its multiespectral configuration allows specific programmes to be selected according to the beauty protocol, combining blue, yellow, red and infrared light in different operating modes.

With 90 LEDs, 30–40 mW/cm² irradiance and a 4000 mAh battery, the G11 offers a practical solution for beauty cabins, wellness centres and professional facial care routines where a compact, controllable facial device is required for easy integration into the service.

LED phototherapy with five wavelengths

The mask works with a multiespectral LED emission system covering different light ranges used in cosmetic facial treatments. Each wavelength can be part of a specific mode, allowing the session to be adapted to the centre’s working protocol.

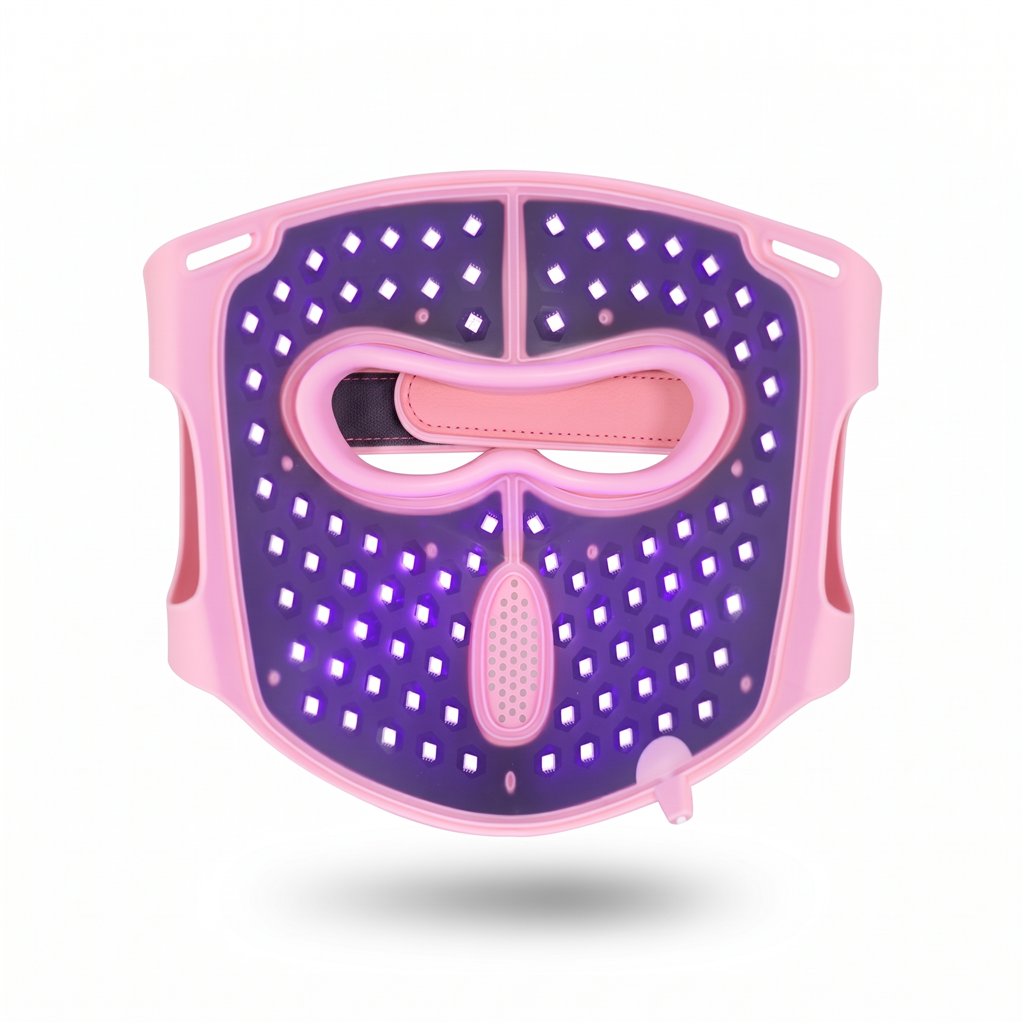

• Blue light 415 nm
• Yellow light 590 nm

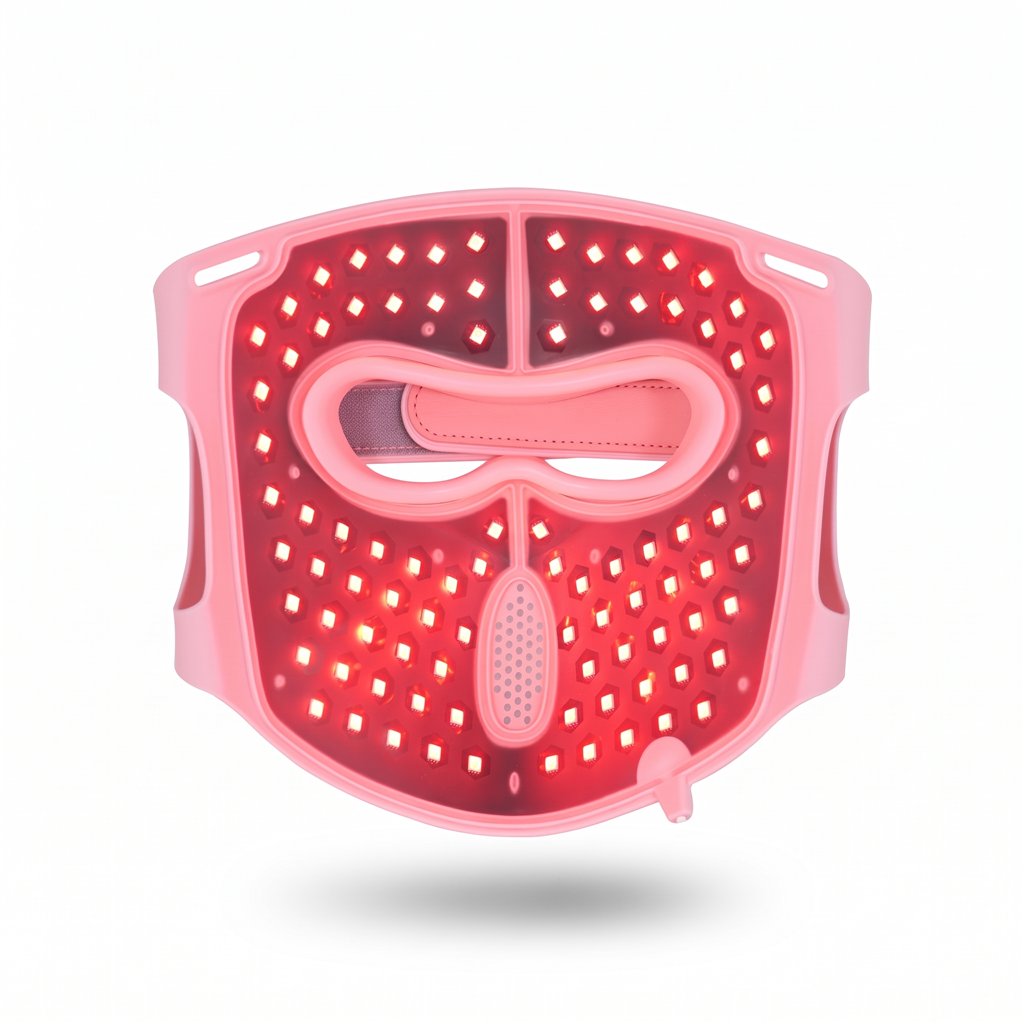

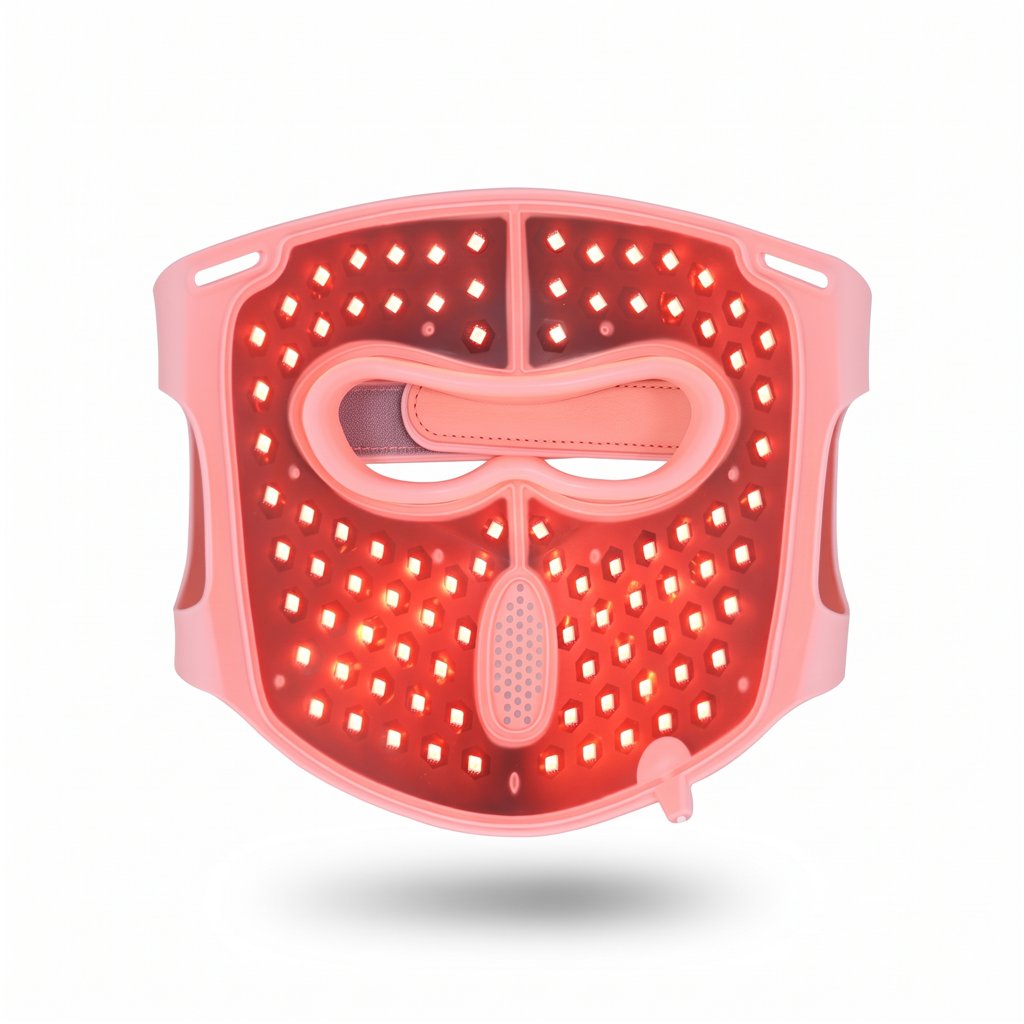

• Red light 633 nm
• Near infrared 850 nm
• Infrared 1072 nm

Six operating modes

The G11 model includes several preconfigured programmes that use one or more wavelengths. This variety makes it easier to select the most suitable mode within professional cosmetic cabin protocols, without needing to manually configure each combination.

• Repairing 633 nm
• Rejuvenation 590 + 633 nm
• Anti-Aging 633 + 850/1072 nm
• Morning Care 590 + 633 + 850/1072 nm
• Acne 415 nm
• Bedtime Care Combined sequence

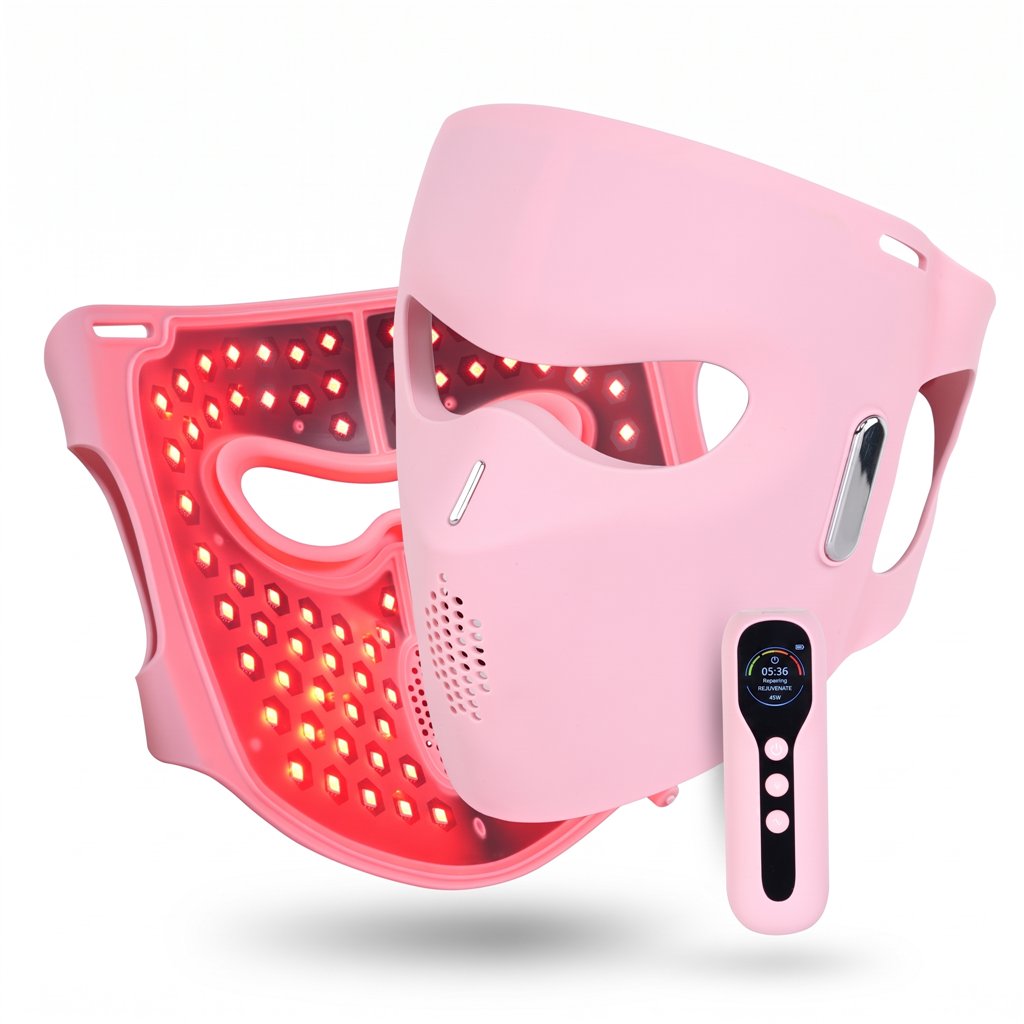

Independent controller with LED display

The mask is operated using an external controller equipped with an LED status display and three direct-use buttons: power, brightness and pulse. This design allows the main parameters to be adjusted easily while preparing the session.

The brightness control offers three available levels —50%, 75% and 100%— to adapt the emission intensity to the cosmetic protocol being applied. It also includes a pulse function with a frequency of 10 Hz.

• Brightness control 50%, 75% and 100%
• Pulse frequency 10 Hz
• Controller buttons Power, brightness and pulse
• Display LED status display
• Interface USB-C ×2

Rechargeable battery and USB-C interface

The G11 integrates a 4000 mAh 21700, max. 3.7 V battery, enabling convenient handling without depending on a fixed cable during use, always following the use and charging instructions provided in the user manual.

The USB-C ×2 interface simplifies connection of the controller and the included cable, providing an up-to-date charging and connection system for everyday use in a professional environment.

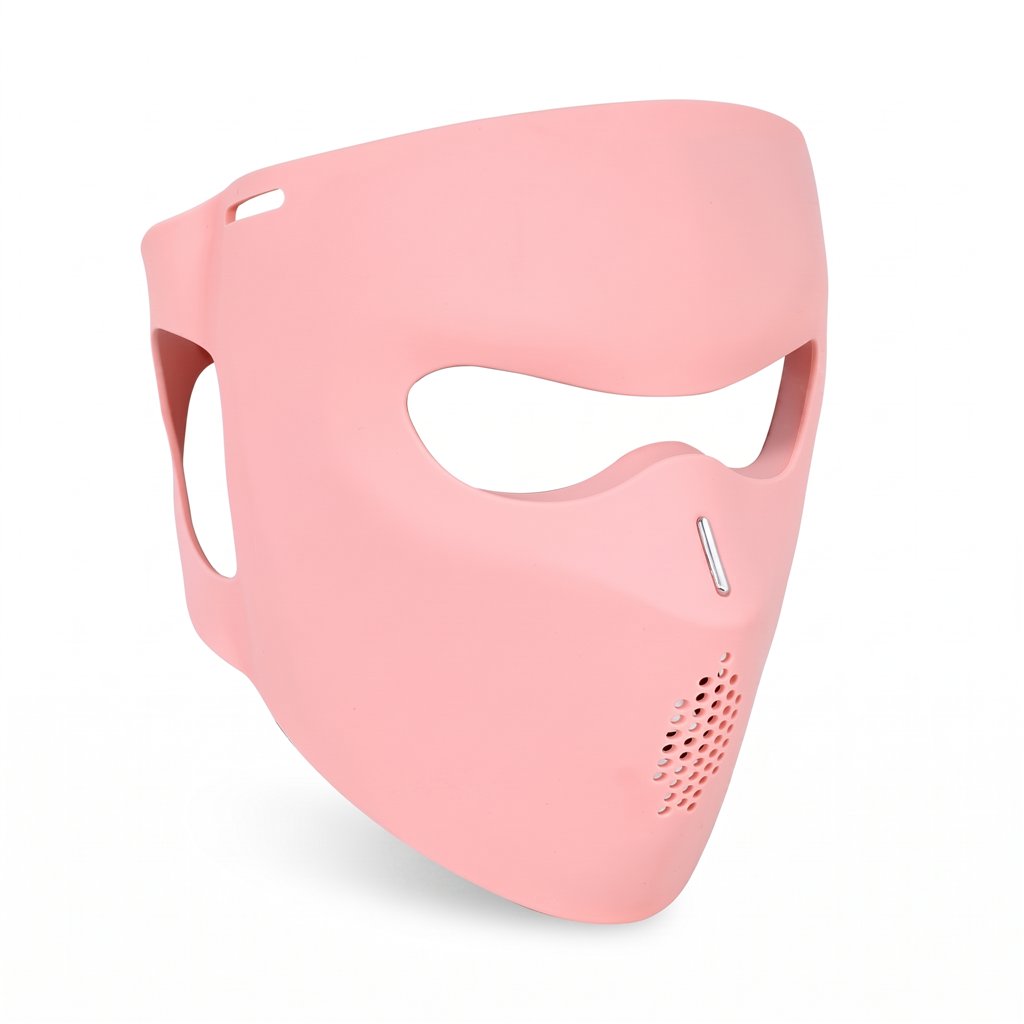

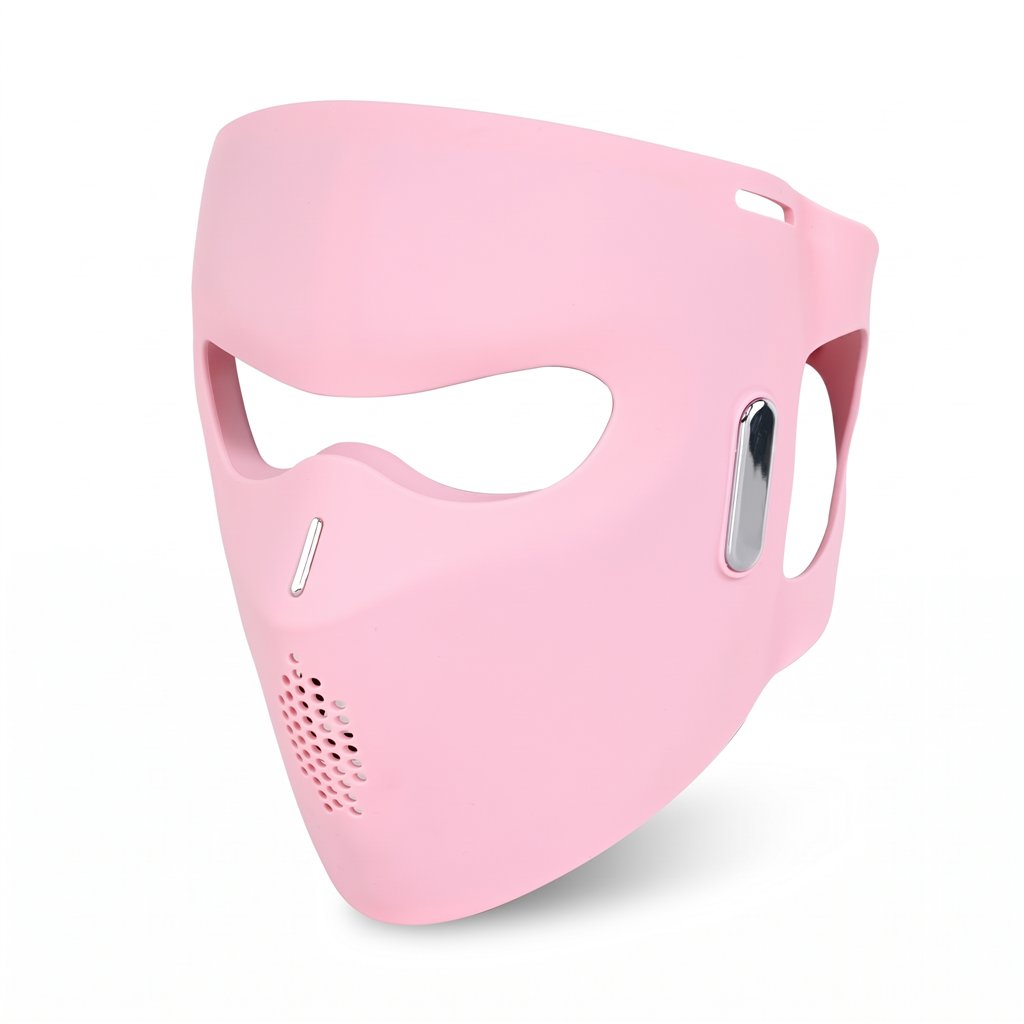

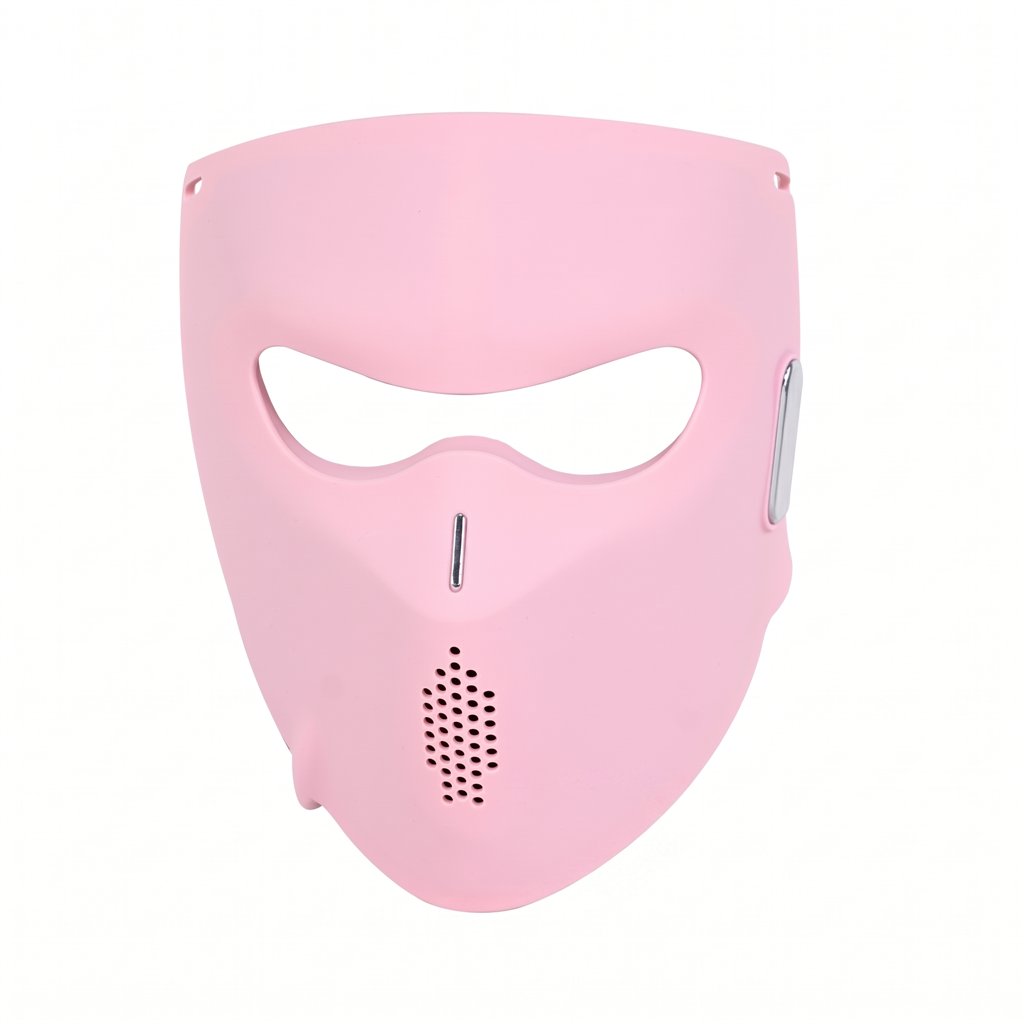

Facial design and compact format

The mask measures 345 × 225 × 181 mm, while the controller measures 126 × 40 × 45 mm. Its facial design is intended to cover the face during cosmetic LED light applications, combining a mask structure, fastening strap and independent controller.

• Mask dimensions 345 × 225 × 181 mm
• Controller dimensions 126 × 40 × 45 mm
• Number of LEDs 90 LEDs
• Irradiance 30–40 mW/cm²

Included contents

The device is supplied with the necessary elements for basic operation, transport and consultation of the instructions for use.

• Includes LED facial mask
• Includes Controller
• Includes Fastening strap
• Includes USB-C cable
• Includes Transport bag
• Includes User manual

Technical specifications

• Product LED facial phototherapy mask
• Model G11
• Reference WKMED000078
• Battery 4000 mAh; 21700, max. 3.7 V
• Mask dimensions 345 × 225 × 181 mm
• Controller dimensions 126 × 40 × 45 mm
• LEDs 90 LEDs
• Wavelengths 415 nm, 590 nm, 633 nm, 850 nm and 1072 nm
• Irradiance 30–40 mW/cm²
• Pulse frequency 10 Hz
• Brightness levels 50%, 75% and 100%
• Interface USB-C ×2

Professional cosmetic use

The G11 LED facial mask is intended for cosmetic phototherapy applications within facial care protocols. It must be used in accordance with the manufacturer’s instructions, respecting the times, conditions of use and recommendations stated in the included user manual.
