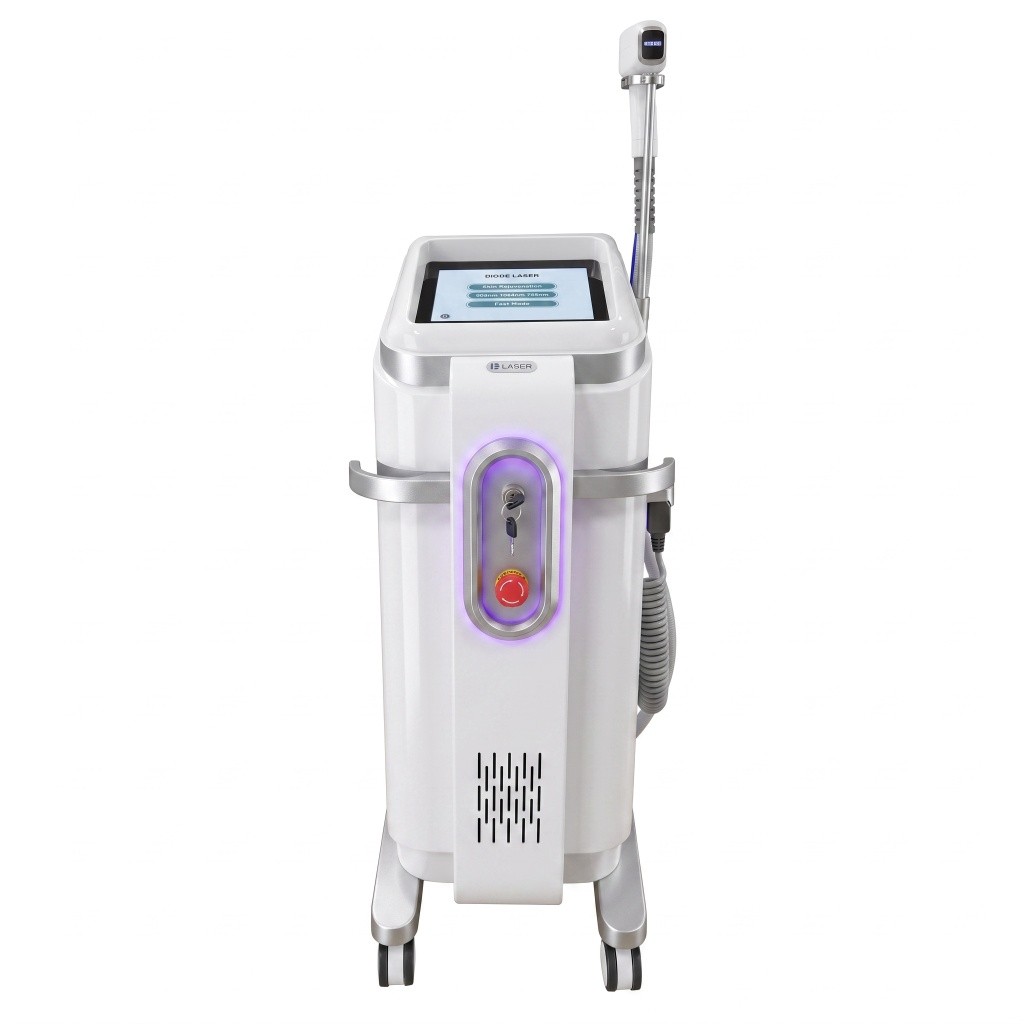

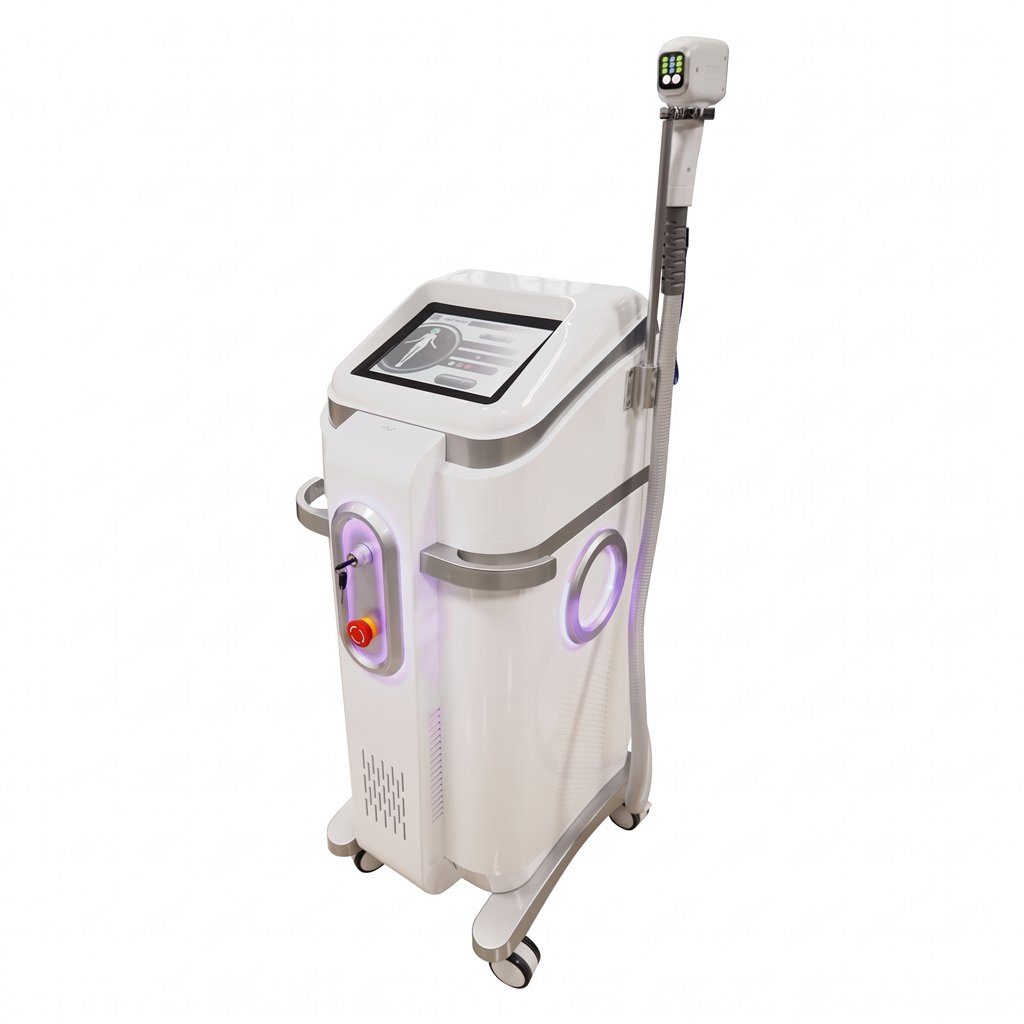

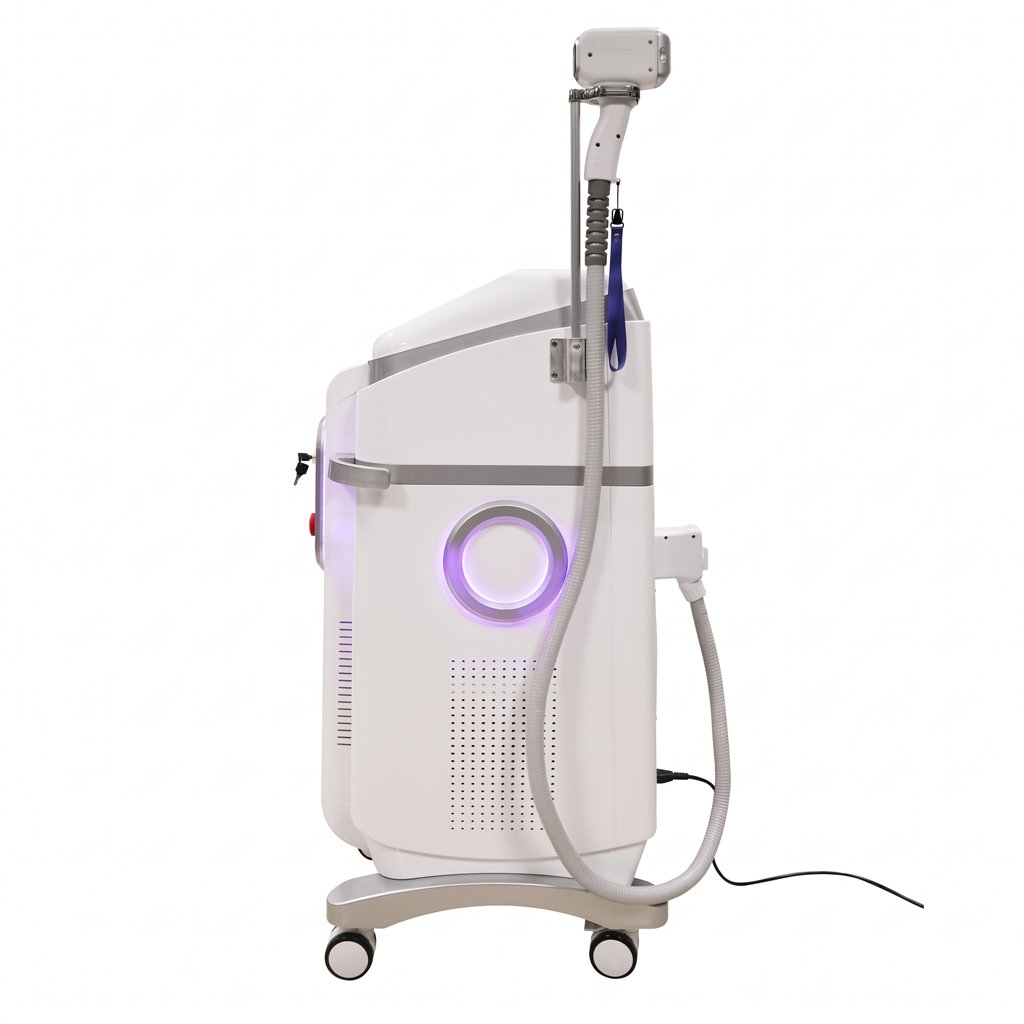

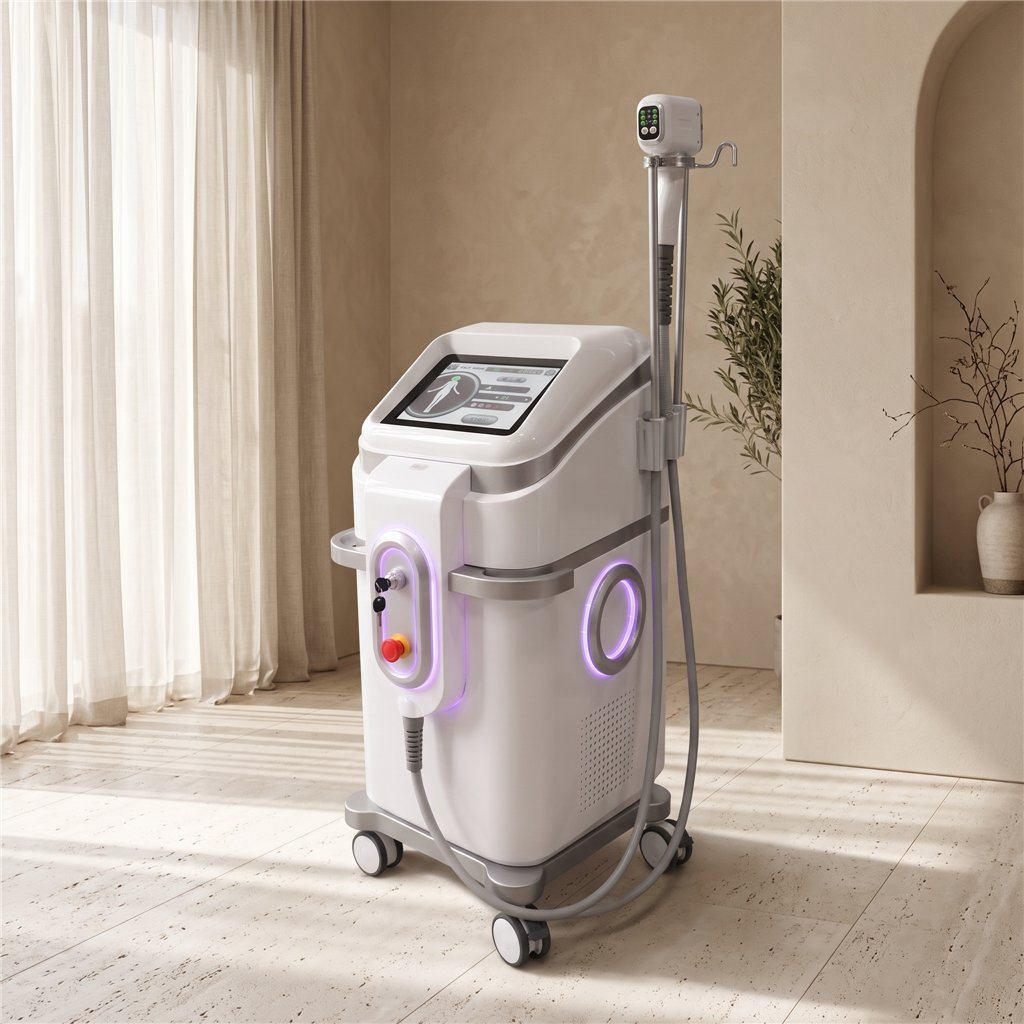

Pro Max Diode Laser 808 nm
Professional 808 nm diode laser hair removal system by PostQuam Cosmetic / ID Italian Design. It features an 8” colour touchscreen, pulse output, TEC + sapphire cooling in the handpiece and adjustable frequency, energy and pulse width settings for professional beauty cabin work.
Price:
€6,307.13
Tax included
In stock
- Customer support via WhatsApp
- 14-day returns and fast shipping.
- Certified by Trust Ecommerce Europe and excellent ratings on various platforms.
- Secure payments with SSL Redsys BBVA, PayPal, seQura, and Klarna.
- Sunmarket Wellness, over 20 years of experience in the Wellness sector.
Flexible payment with Klarna.
Pro Max Diode Laser 808 nm for professional hair removal
Pro Max Diode Laser 808 nm is a diode laser hair removal system for professional use in beauty centres, specialised cabins and advanced beauty equipment areas. Identified by reference IDMDIODEMAX808, it combines a 808 nm wavelength with energy, frequency and pulse settings designed to adapt the work to different body areas and intended skin types.
The system is distributed by PostQuam Cosmetic, S.L. and associated with ID Italian Design. Its technical configuration includes an 8-inch colour touchscreen, pulse output system, handpiece cooling by TEC + sapphire and a cooling circuit with water tank, pump, flow sensor and fans.
Professional application in aesthetic hair removal
The 808 nm diode technology is intended for aesthetic hair removal services on different body areas. The indicated application areas for the system include upper lip, underarms, arms, legs and bikini line. The intended skin type range is I-VI, always subject to professional assessment, suitable parameter configuration and compliance with the operating instructions of the equipment.
The adjustable energy density of 1 to 120 J/cm2, pulse width of 5 to 400 ms and working frequency of 1~10 Hz, with a stated maximum frequency of 20 Hz, allow flexible adjustment of the aesthetic treatment according to the area, the intended phototype and the professional protocol applied.

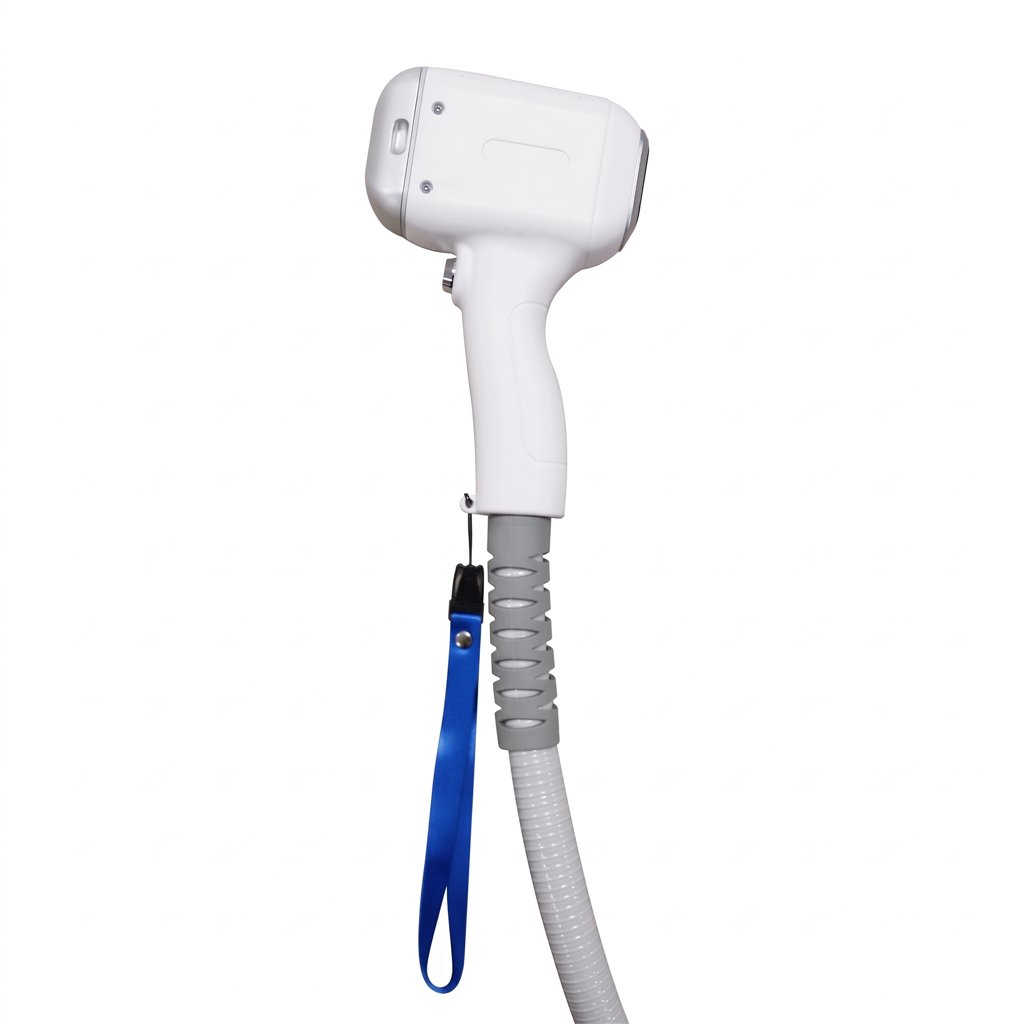

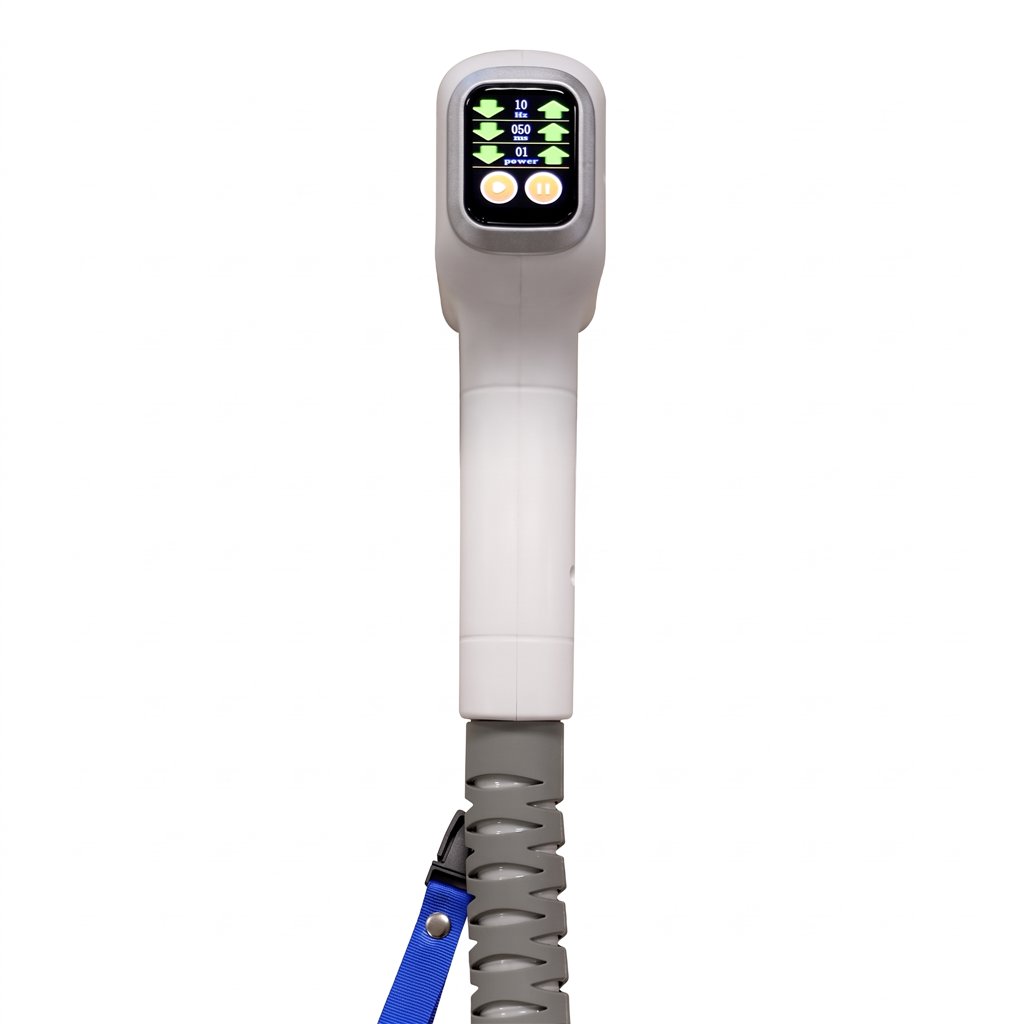

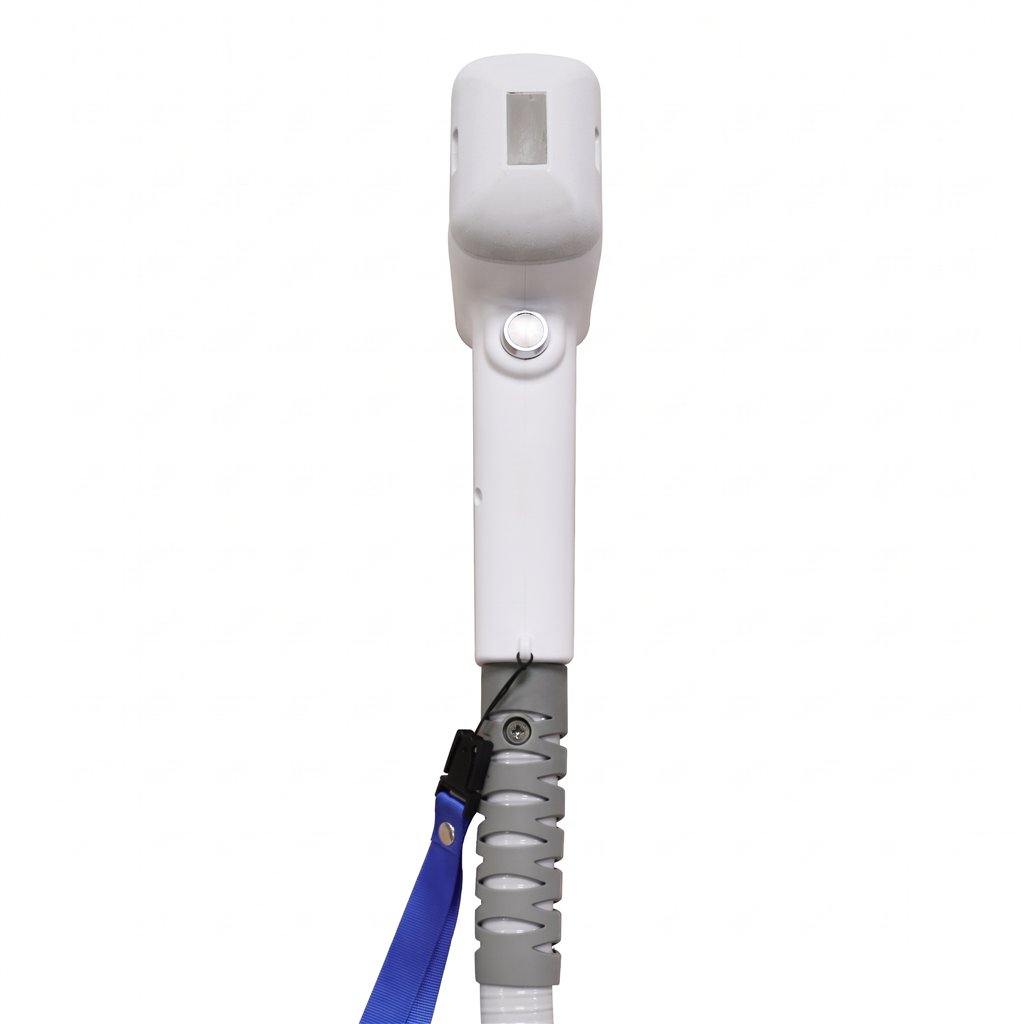

Handpiece with TEC + sapphire cooling
The handpiece incorporates TEC + sapphire cooling, a combination used in professional laser beauty equipment to help maintain a suitable contact temperature during the service. The specified TEC system is 12V6A and the equipment includes a protection temperature of 55 °C.
The main spot size indicated for the handpiece is 15 x 15 mm. An alternative spot size of 25 x 31 mm is also listed, depending on the exact configuration of the supplied equipment and its available accessories.

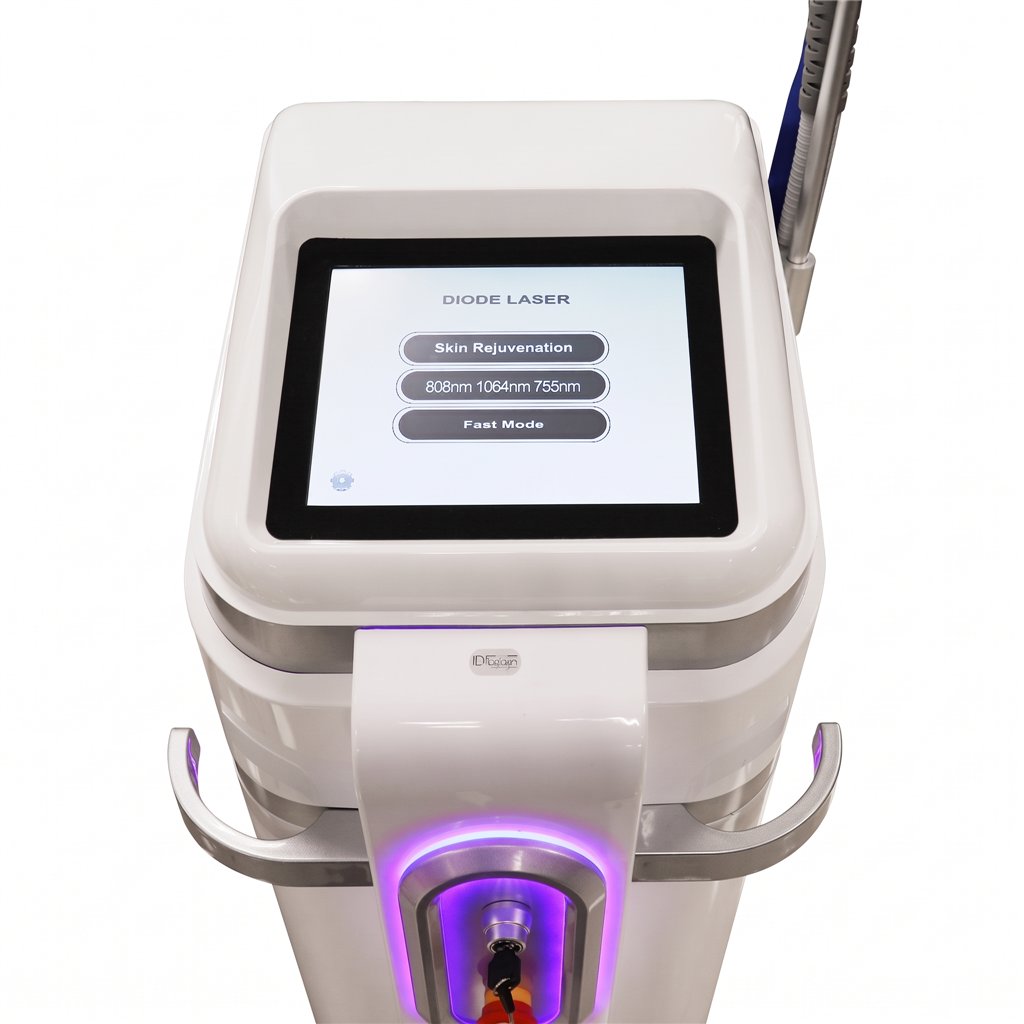

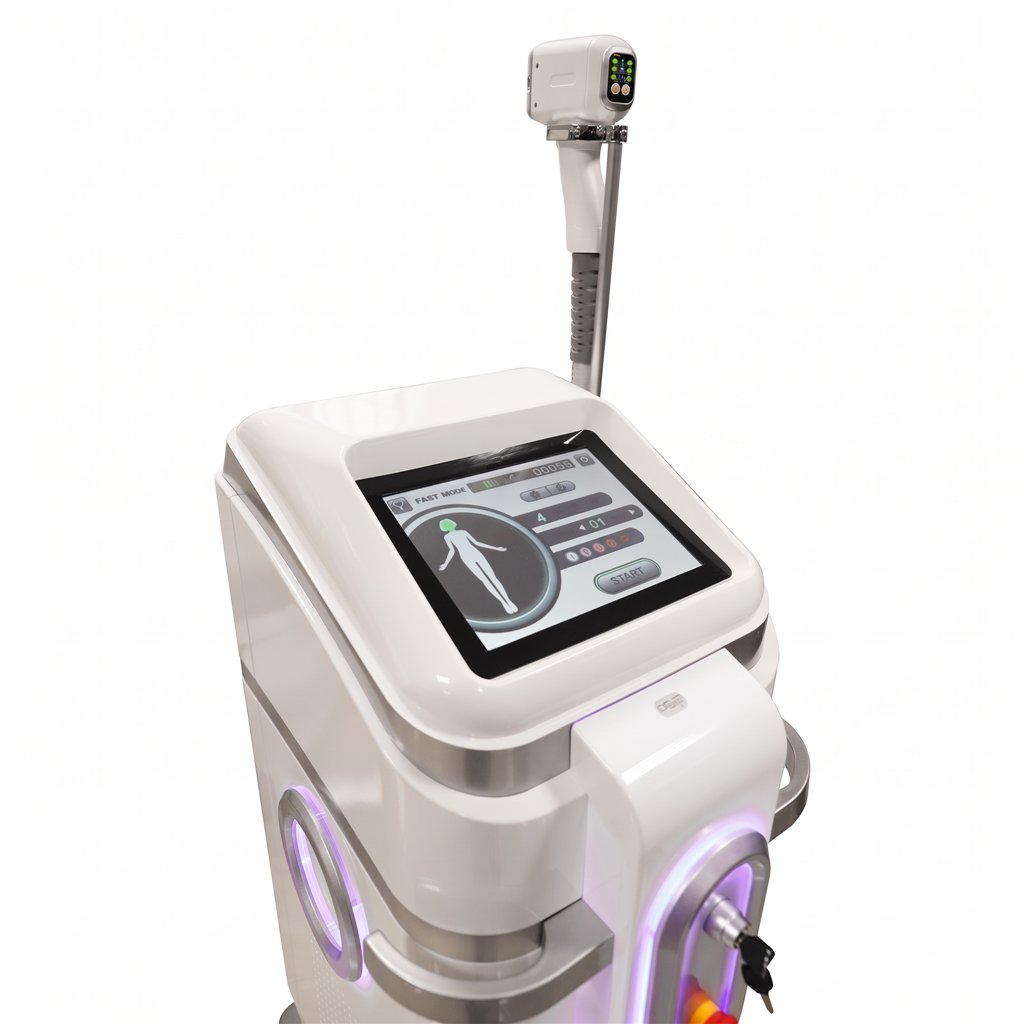

Work control via touchscreen
The equipment is operated through an 8-inch colour touchscreen, designed to access the main working parameters. The specified emission mode is pulse output, with adjustable energy, frequency and pulse width.
This type of configuration supports professional cabin use when the equipment is operated by qualified personnel, with parameter selection according to the working protocol, treatment area and skin characteristics.
Cooling system and water circuit

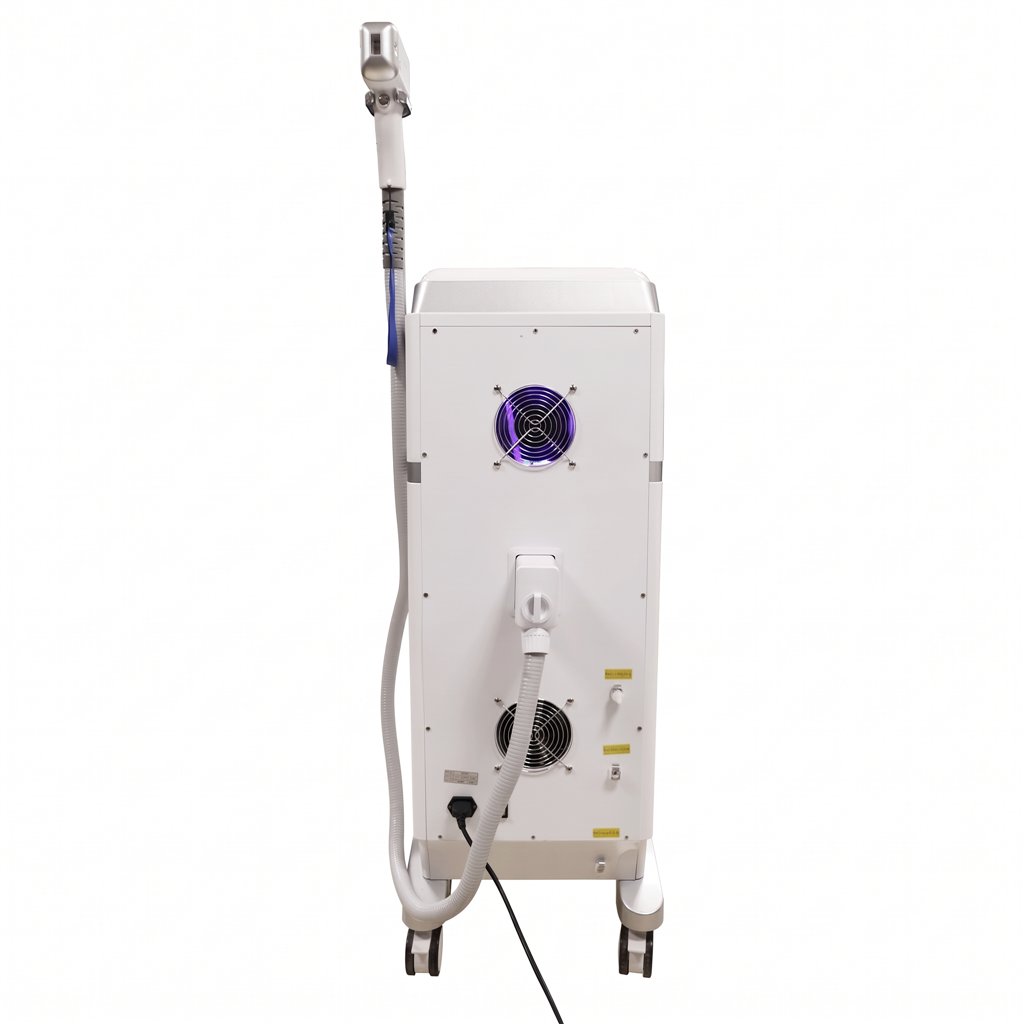

The Pro Max Diode Laser 808 nm integrates a cooling system with a DP-60 12 V diaphragm water pump, flow sensor with a 3.5 l/min flow requirement and 4 cooling fans. The specified fan speed is 3150 r/min.
The water tank volume depends on the equipment version: a vertical tank of 3.6 l and a tabletop tank of 2.5 l are indicated. For stable operation, the specified environmental conditions should be respected, with ambient humidity below 80% and a recommended ambient temperature of 28 °C or below.
Main technical features
- Product Diode laser hair removal system
- Model Pro Max Diode Laser 808 nm
- Reference IDMDIODEMAX808
- Brand / distribution PostQuam Cosmetic / ID Italian Design
- Wavelength 808 nm
- Energy density 1-120 J/cm2
- Working frequency 1~10 Hz
- Maximum frequency 20 Hz
- Pulse width 5-400 ms
- Output mode Pulse output
- Output power 600 / 900 W
- Laser bars German Jenoptik laser, 150 W/unit
- Display 8-inch colour touchscreen
- Handpiece cooling TEC + sapphire
- TEC cooling 12V6A
- Spot size 15 x 15 mm
- Alternative spot size 25 x 31 mm
- Protection temperature 55 °C
- Water pump DP-60 12 V diaphragm rods
- Flow sensor Flow requirement of 3.5 l/min
- Cooling fans 4 units
- Fan speed 3150 r/min
- Vertical water tank 3.6 l
- Tabletop water tank 2.5 l
- Voltage 220 V
- Alternative voltage 110 V
- Ambient humidity < 80%
- Recommended ambient temperature <= 28 °C
- Recommended eye protection OD > 5
- Intended skin type I-VI
- Indicated application areas Upper lip, underarms, arms, legs, bikini line
Safety and responsible use
This equipment must be used exclusively by qualified professional personnel, following the operating instructions, parameter selection and appropriate protection measures for laser beauty equipment. The recommended eye protection is OD > 5, both for the operator and for the client when applicable.
Before each service, it is important to assess the application area, the intended skin type, skin condition and the energy, frequency and pulse width settings. Unsuitable parameters for the work profile must not be used, and the equipment must not be operated without the specified cooling and flow conditions.
Professional use: equipment intended for specialised cabins and centres. Application must be carried out by personnel trained in aesthetic laser equipment and with the corresponding protection measures.
Operating conditions
To preserve system stability, the equipment must operate in a suitable environment, with ambient humidity below 80% and a recommended ambient temperature of 28 °C or below. The cooling circuit must work with the specified flow rate and with the water tank corresponding to the equipment version.
The equipment supports 220 V voltage and a 110 V option is also indicated. Electrical connection, start-up and maintenance must be carried out according to the conditions of the supplied equipment and by competent personnel.
Technical data sheet
| Voltage | 220 |
|---|
