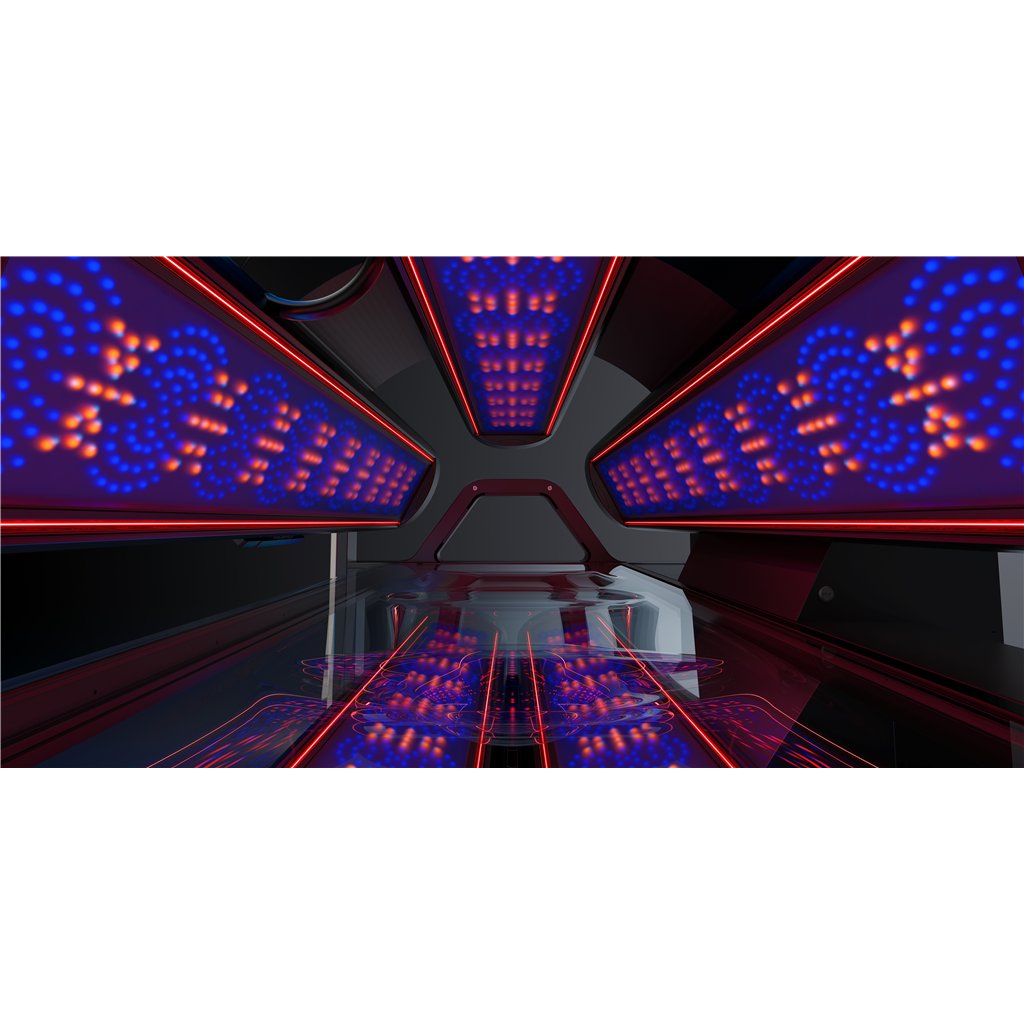

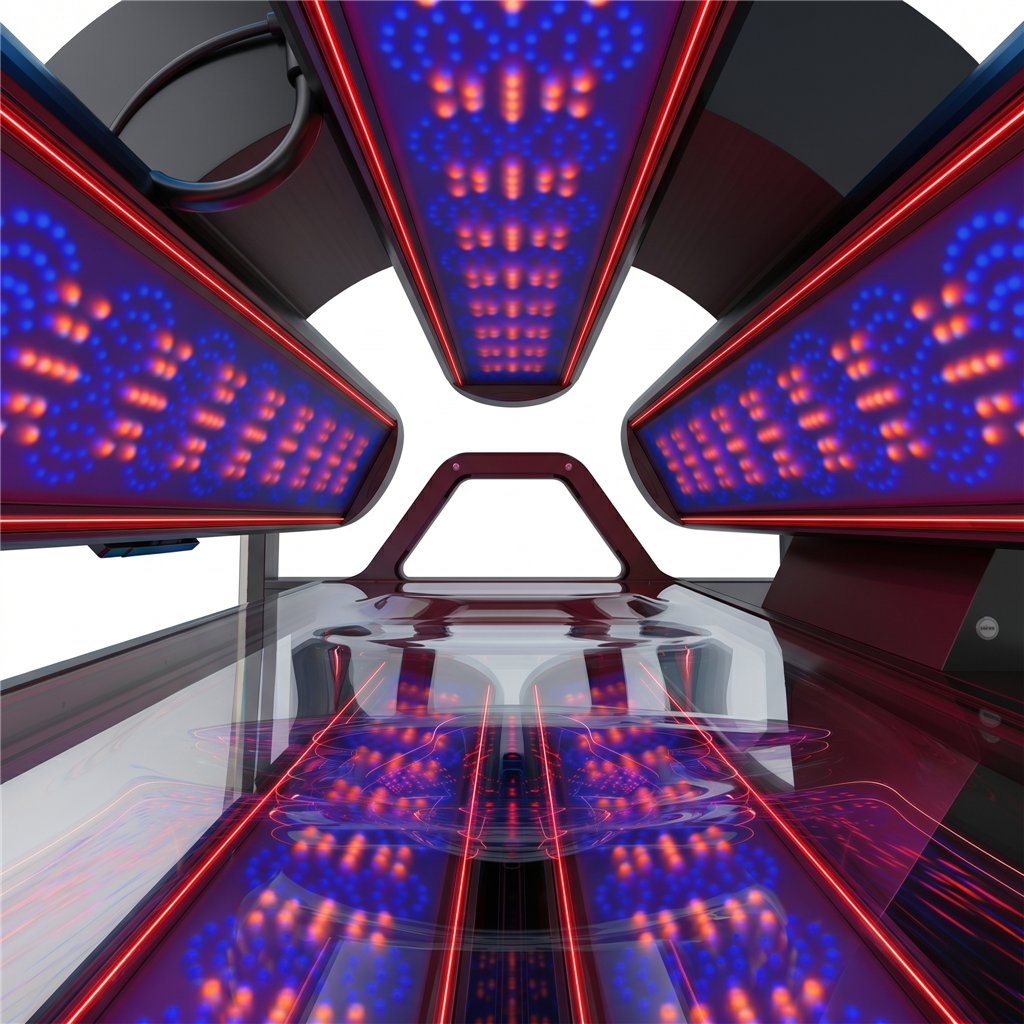

megaSun K11 Air Plus professional tanning bed

megaSun K11 Air Plus professional tanning bed

The megaSun K11 Air Plus is a professional horizontal tanning bed developed for tanning studios, advanced beauty spaces, wellness facilities and businesses that require a large-format UV unit with clear technical specifications for professional installation.

This model is part of the K11 Air Plus range by megaSun and is specified as a UV-TYPE 3 & 0.3 W/m² unit. Its technical configuration includes different power consumption levels depending on equipment and air conditioning, as well as power supply, ventilation and space requirements that must be considered before installation.

Professional use in tanning cabins

The K11 Air Plus is intended for professional environments where a robust horizontal tanning bed is required, with generous dimensions and an installation prepared for intensive cabin use. The closed structure measures 2,300 x 1,452 x 1,580 mm, while in open mode it reaches 2,300 x 1,411 x 1,940 mm. In the configuration with loft, the stated dimensions are 2,300 x 1,510 x 2,230 mm.

For correct room planning, a minimum ceiling height of 2,850 mm and a minimum side clearance to wall of 100 mm per side must be considered. The stated air extraction capacity is 1,500 m³/h, with a fan connection diameter of 300 mm.

Main technical features

• Brand megaSun
• Model K11 Air Plus
• Equipment type Professional horizontal tanning bed
• UV type UV-TYPE 3 & 0.3 W/m²
• Protection rating IP20
• Approximate weight with AC 865 kg
• Maximum load of the bed acrylic 150 kg
• Compatible MP3 player SDHC and SDXC, micro-SD; FAT32 system

Dimensions and installation

• Dimensions in open mode 2,300 x 1,411 x 1,940 mm
• Dimensions in closed mode 2,300 x 1,452 x 1,580 mm
• Dimensions with loft 2,300 x 1,510 x 2,230 mm
• Minimum ceiling height 2,850 mm
• Minimum side clearance to wall 100 mm
• Air extraction capacity 1,500 m³/h
• Fan connection diameter 300 mm

Electrical data

The tanning bed requires an electrical installation suitable for the unit specifications and carried out by qualified personnel. The technical configuration includes power supply at 400V / 3N~ / 50-60 Hz or 220V / 2~ / 50-60 Hz, with cable cross-sections and associated protection according to the selected configuration.

• Minimum power consumption 5.25 kW
• Maximum power consumption 8.25 kW
• Maximum power consumption with AC 8.7 kW
• Maximum power consumption with Comfort AC 9.55 kW
• Rated power without air conditioning 5,250 W
• Rated power with air conditioning 5,700 W
• Mains voltage 400V / 3N~ / 50-60 Hz | 220V / 2~ / 50-60 Hz
• Cable cross-section 5 x 2.5 mm² | 3 x 6 mm²
• Circuit breaker protection Type K 3-pole, 3x25A with RCD Type A | Type K 2-pole, 1x40A with RCD Type A

Integration in professional centres

Due to its dimensions, weight and extraction requirements, the megaSun K11 Air Plus must be integrated into a cabin prepared for professional tanning equipment. It is important to check access to the premises, floor load capacity, available ventilation, free ceiling height and the compatibility of the electrical installation with the selected configuration before installation.

The unit includes MP3 playback compatibility via SDHC, SDXC and micro-SD media with FAT32 system, a practical detail for environments where the session is accompanied by compatible integrated audio.

Responsible use recommendations

As a professional UV unit, it must be used in accordance with applicable regulations, the exposure times established for each user and the centre’s safety instructions. Operation, maintenance and installation must be carried out by trained and authorised personnel.
