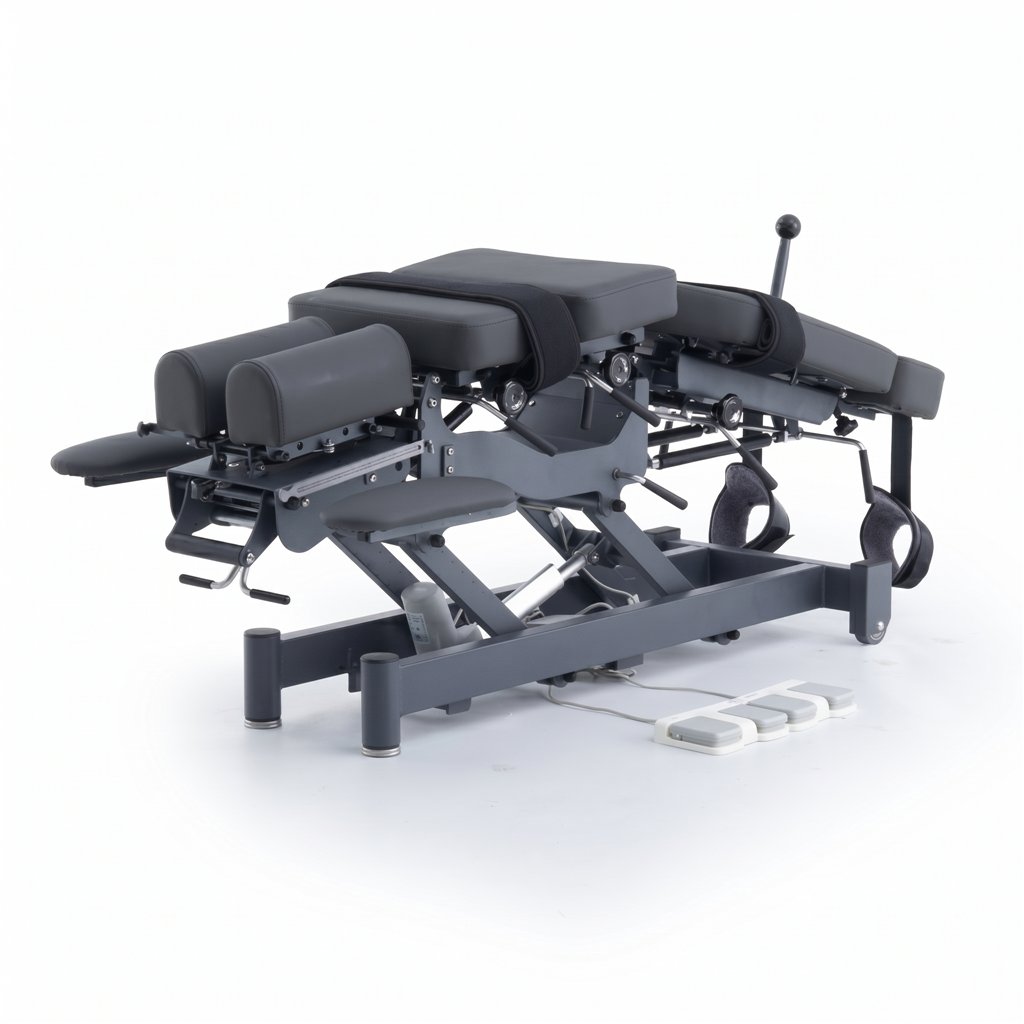

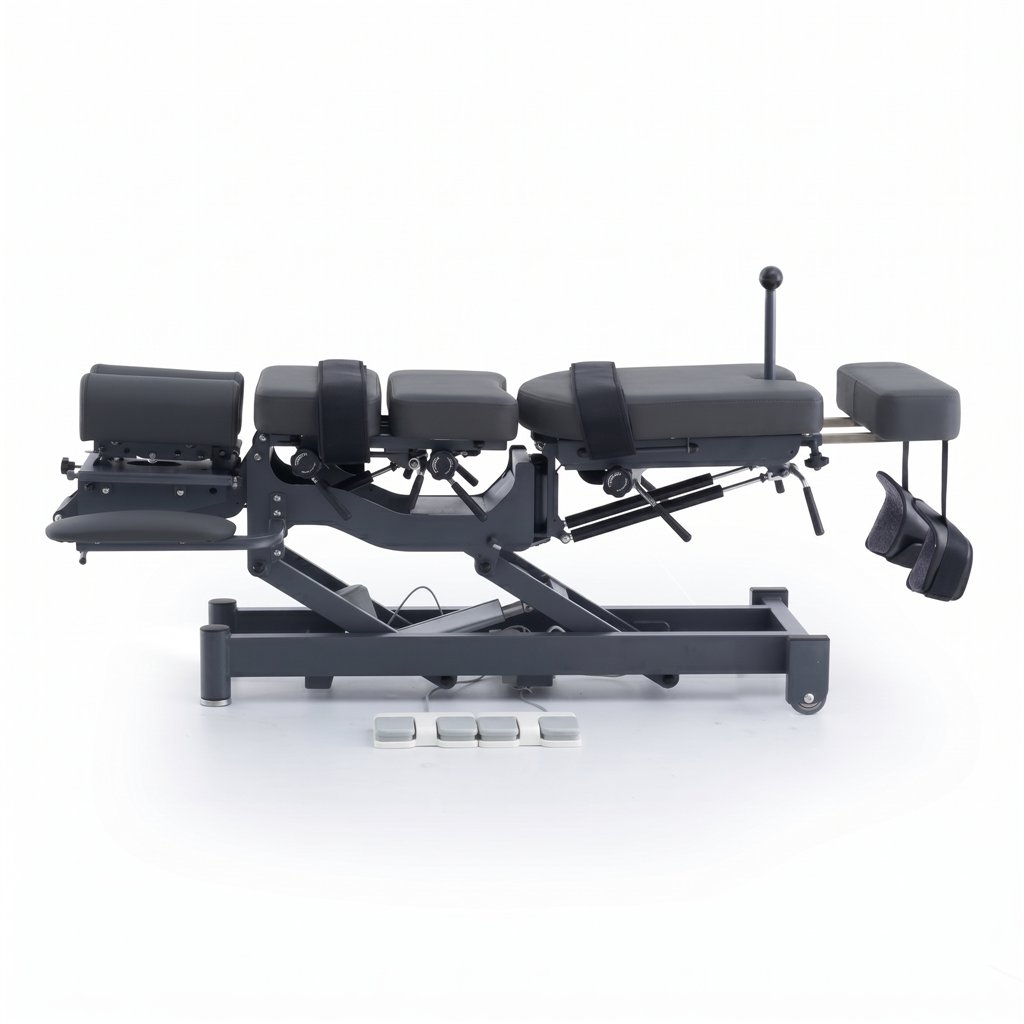

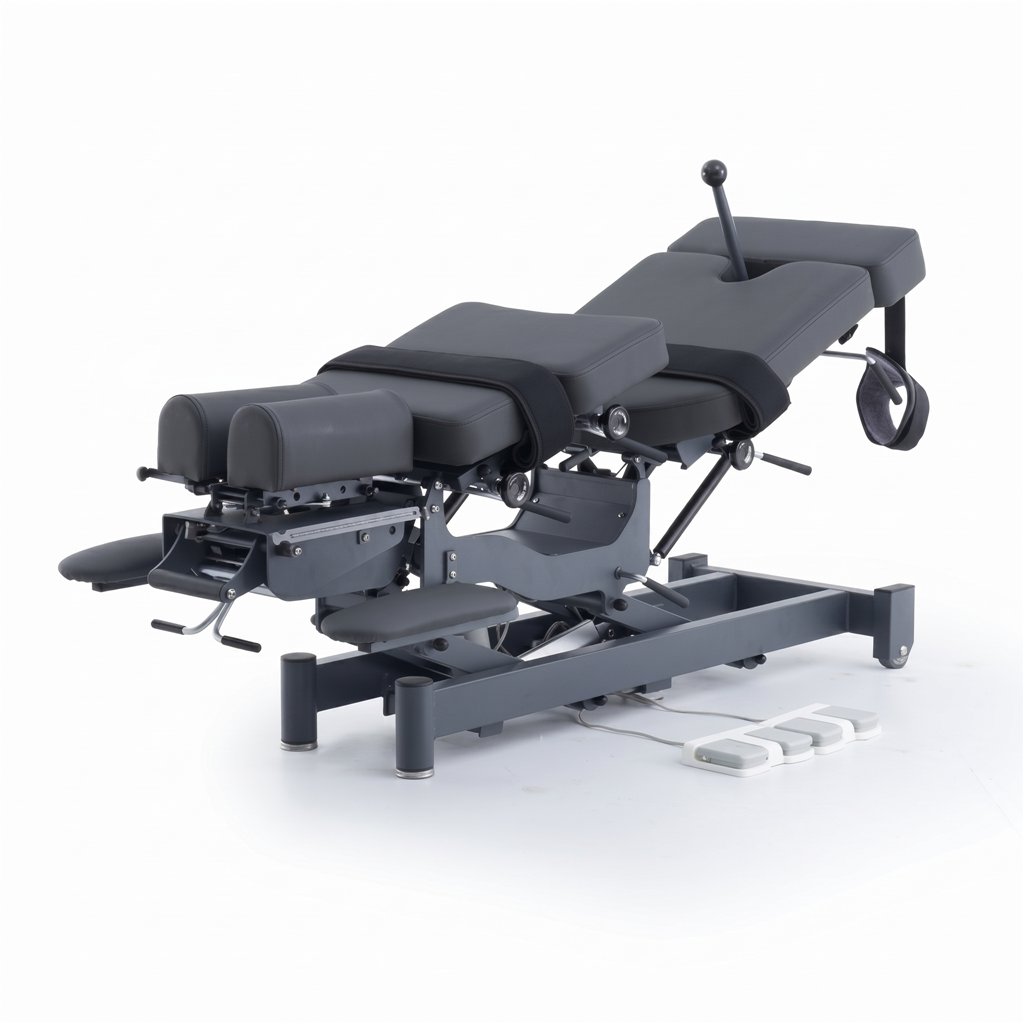

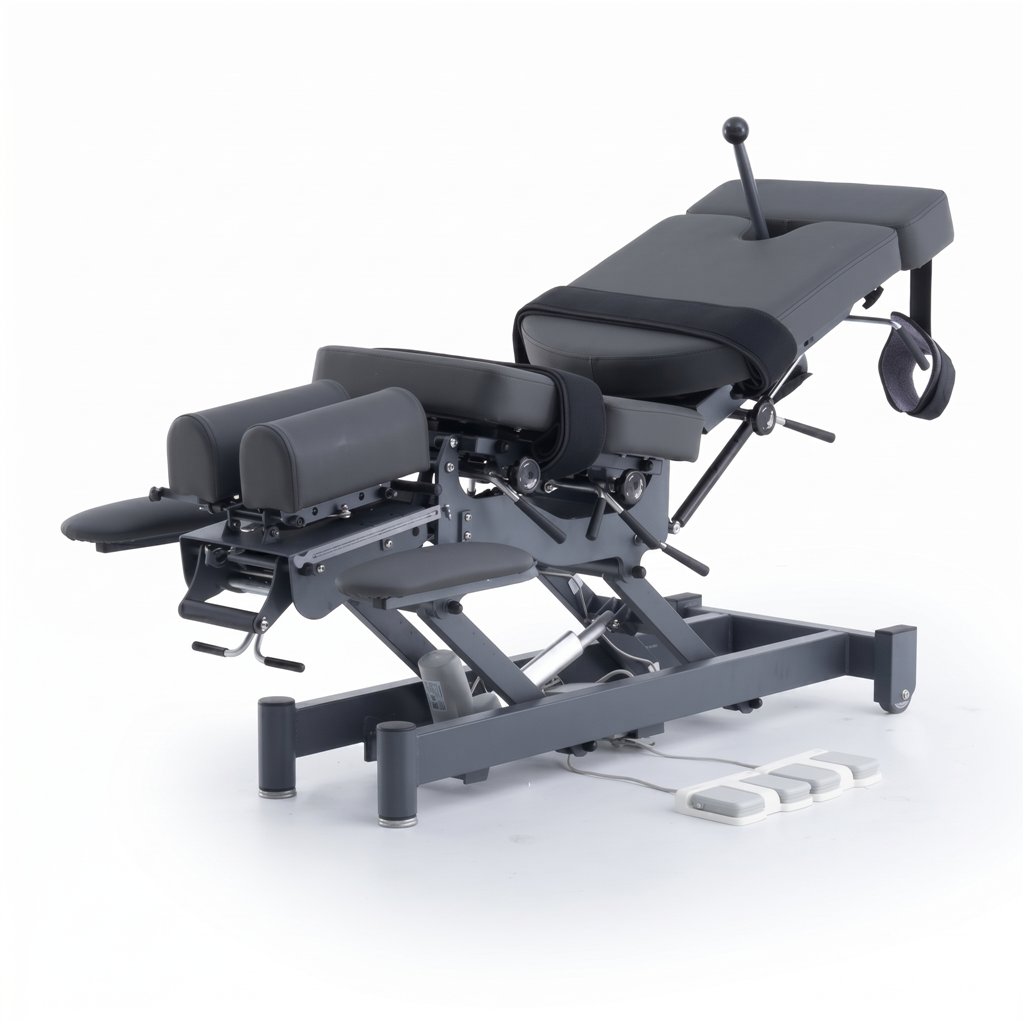

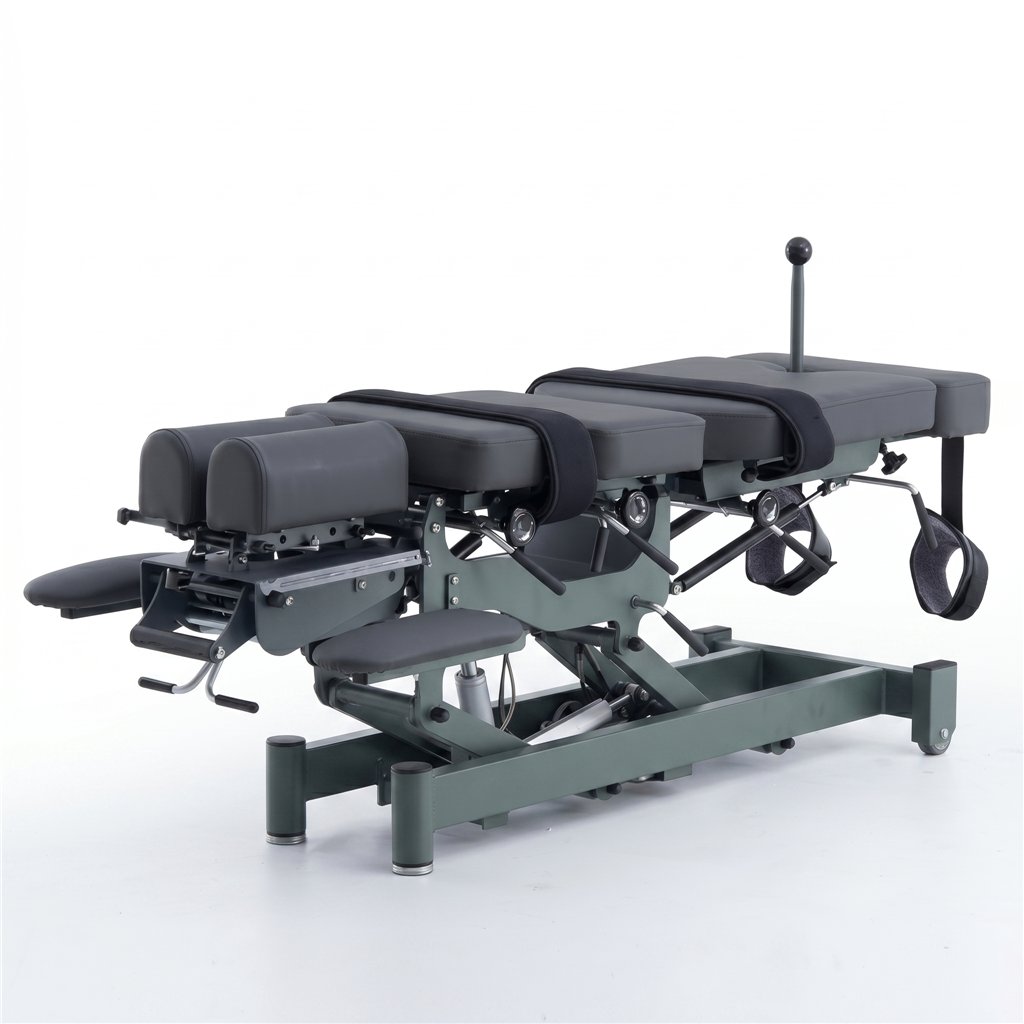

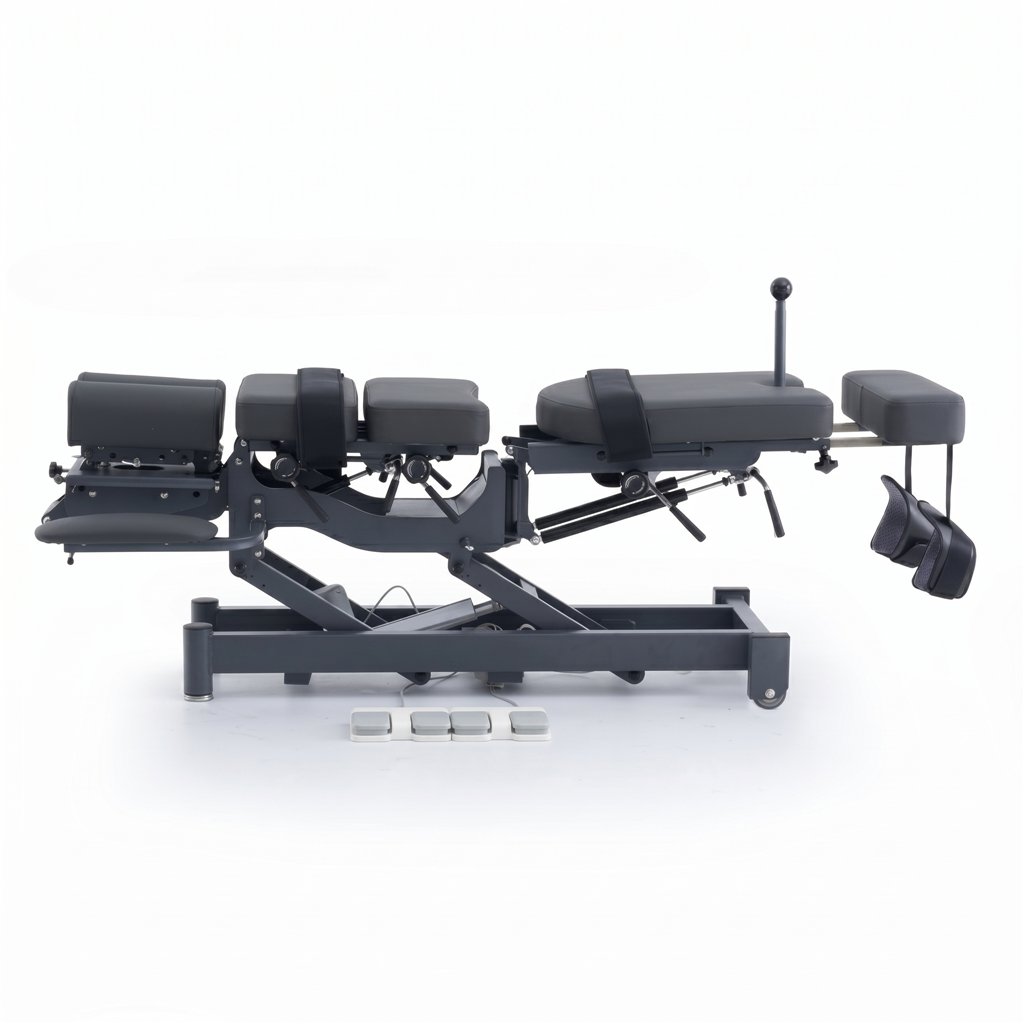

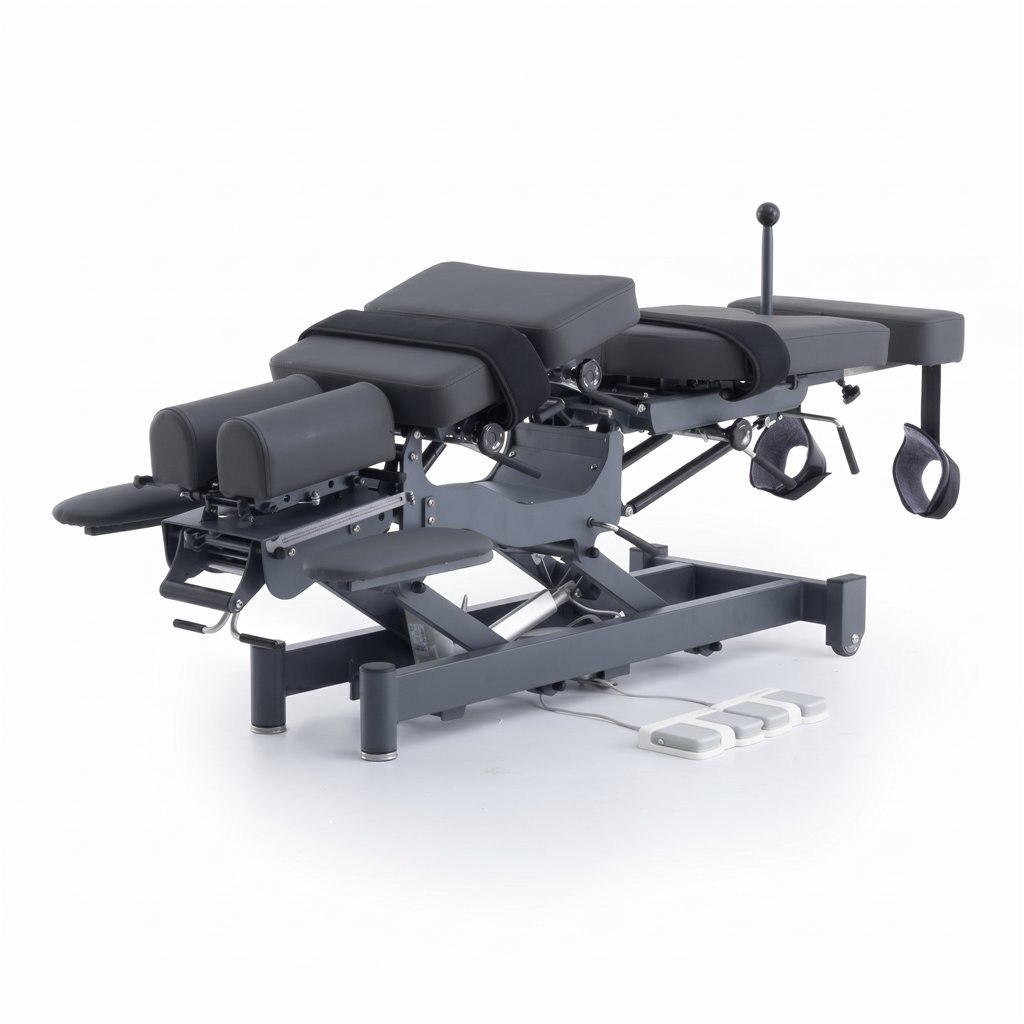

ALMA electric chiropractic table, 2 motors with flexion-distraction – grey base, grey upholstery

ALMA electric chiropractic treatment table, 2 motors – flexion-distraction and 4 drops

CE marked

The ALMA electric chiropractic treatment table by Coinfycare is designed for advanced chiropractic adjustments with flexion-distraction, 4 drops (cervical, thoracic, lumbar and pelvic) and abdominal breakaway.

It combines a grey base with grey upholstery that is antibacterial and hard-wearing.

It features 2 motors (height and distraction) with foot pedal control, a vertical bar for manual flexion, and straps included for patient stabilisation.

Key features

• 2 TiMOTION motors for electric height adjustment and flexion-distraction function.
• 4 drops: cervical, thoracic, lumbar and pelvic.
• Abdominal breakaway: the chest section can move up and down.
• Height range of approximately 56–80 cm, with a lifting time of 30 s.
• Working dimensions of approximately 172 x 76 cm.
• Traction of up to 10 cm between the lumbar and pelvic sections.
• Padding of 7 cm with a density of 100 kg/m³ and high-resistance flame-retardant vinyl.
• Maximum load capacity of 250 kg.
• ø75 mm castors (2 directional) and levelling feet.
• Includes couch roll holder and fastening straps.
• Warranty of 2 years (frame, electrical components and upholstery; excluding misuse).
• Certifications: CE, FDA, ISO 13485:2016.

Clinical performance

The ALMA improves efficiency in clinical practice by combining electric height adjustment with flexion-distraction, both operated by foot pedal.

The vertical bar allows smooth control of manual flexion, adapting the working pattern to each patient.

The 4 independent drops provide fast adjustment for the cervical, thoracic, lumbar spine and pelvis.

Positioning and reach

The abdominal breakaway helps relieve pressure in the chest area during prone techniques.

The 10 cm traction between the lumbar and pelvic sections expands treatment options for soft tissue and joint work.

The height- and width-adjustable headrest makes breathing easier and enhances comfort in the prone position.

Patient comfort

The 7 cm padding with a density of 100 kg/m³ provides firm, comfortable support, reduces pressure points and maintains a stable posture during extended sessions.

The flame-retardant and antibacterial vinyl withstands frequent cleaning without losing its appearance.

Safety and handling

The included straps stabilise the area being treated.

The structure with wide feet and ø75 mm castors allows the treatment table to be moved when required and secured again easily.

The 250 kg load capacity provides flexibility for patients of different builds.

Hygiene and maintenance

The upholstery can be cleaned with neutral solutions in just a few steps, reducing turnaround time between patients.

The integrated couch roll holder helps protect the working surface and keep the treatment room spotless.

Logistics and transport data

Supplied in packaging measuring 182 x 83 x 77 cm, weight 173 kg and volume 1.16 m³.

Installation is straightforward in treatment rooms with standard access.

Technical specifications

• Model ALMA (Ref. EL07B.2.A66.GF).
• Type electric chiropractic treatment table with flexion-distraction.
• Sections & drops 4 drops (cervical, thoracic, lumbar, pelvic) + abdominal breakaway.
• Height approx. 56–80 cm (lifting in 30 s).
• Usable dimensions approx. 172 x 76 cm; end section 53 cm (see technical diagram).
• Traction 10 cm between the lumbar and pelvic sections.
• Headrest height- and width-adjustable.
• Control foot pedal for height and distraction; vertical bar for manual flexion.
• Padding 7 cm | density 100 kg/m³ | flame-retardant and antibacterial vinyl.
• Finishes grey base | grey upholstery.
• Load capacity 250 kg.
• Mobility ø75 mm castors (2 directional) and levelling feet.
• Includes fastening straps and couch roll holder.
• Certifications CE, FDA, ISO 13485:2016.
• Warranty 2 years (frame, electrical components and upholstery; excluding misuse).
• Transport (packaging) 182 x 83 x 77 cm | 173 kg | 1.16 m³.
