Weelko HIGHTECH SAUNA AIR WKB002 professional pressotherapy and thermotherapy device

HIGHTECH SAUNA AIR Weelko WKB002 – Professional Pressotherapy and Thermotherapy

The HIGHTECH SAUNA AIR Weelko WKB002 is professional equipment for aesthetic body treatments, combining sequential pneumatic compression pressotherapy and thermotherapy in a single digital system with a touchscreen.

Its configuration allows different areas of the body to be treated simultaneously using a complete set of garments for the legs, feet, abdomen, waist and arms. The professional can select different pressotherapy programmes, adjust the intensity and combine pneumatic compression with heat application according to the aesthetic protocol and each client’s tolerance.

The system features 10 air channels, 20 pneumatic chambers, 4 pressotherapy programmes, 3 intensity levels and 5 independent thermotherapy zones, providing extensive configuration options for daily use in the treatment room.

Professional 10 channels 20 chambers 5 heat zones

HIGHTECH SAUNA AIR WKB002 at a glance

• 2 functions Pressotherapy + thermotherapy
• 10 channels Pneumatic control
• 20 chambers Distributed throughout the body garment set
• 4 programmes Pressotherapy sequences
• 3 levels Adjustable intensity
• 5 zones Independent thermotherapy
• 30–50 °C Operating temperature
• 55 °C Specified maximum temperature
• 0–40 L/min Airflow
• 0–0.4 kg/cm² Air pressure
• 350 W Rated power
• 30 min Default time
• Touchscreen Digital control

Pressotherapy and thermotherapy in the same session

The HIGHTECH SAUNA AIR allows pressotherapy and thermotherapy to be used within the same protocol, eliminating the need for two separate machines.

Pressotherapy uses pneumatic chambers distributed throughout the different garments to generate programmed inflation sequences. Thermotherapy allows different areas of the suit to be selected and the temperature to be adjusted according to the settings chosen by the professional.

Both functions can be activated during the same session by following the machine configuration procedure: first select the pressotherapy function and then the Far Infrared option available in the menu.

Professional 10-channel, 20-chamber pressotherapy

The WKB002 pneumatic system operates through 10 air channels and a total of 20 chambers distributed throughout the body garment set.

The chambers inflate according to different pre-programmed sequences. The professional can select one of the four available programmes and choose from 3 intensity levels.

• Air channels 10
• Air chambers 20
• Programmes 4
• Intensity levels 3
• Airflow 0–40 L/min
• Air pressure 0–0.4 kg/cm²
• Pressure cycle 0–15 s
• Default time 30 minutes

4 pressotherapy programmes

The machine includes four different operating sequences. Each programme changes the order in which the different pneumatic zones inflate and deflate.

Programme A – Progressive sequence

The programme starts at zone 0 and progresses through to zone 9.

When a new zone is activated, the previous one deflates. At the end of the sequence, the system performs a combined inflation before starting the cycle again.

Programme B – Alternating sequence

Programme B uses an alternating inflation sequence between the different zones of the suit.

The cycle continues according to the programmed pattern until it reaches the final simultaneous inflation before starting a new sequence.

Programme C – Progressive cumulative inflation

In programme C, zones are progressively added to the sequence while the previous zones remain active until the cycle is complete.

The manufacturer identifies this programme as the recommended option when first using the machine.

Programme D – Simultaneous treatment of large areas

Programme D simultaneously treats the three main body areas:

• Legs.
• Abdomen and waist.
• Arms.

The sequence starts at the distal areas and progresses towards the upper areas according to the machine’s programming.

3 intensity levels

In addition to selecting the operating programme, the professional has access to three intensity levels.

This allows the pneumatic operation to be adapted to the client’s sensitivity and the aesthetic protocol being performed.

Adjustable thermotherapy across 5 zones

The second main function of the HIGHTECH SAUNA AIR is body thermotherapy.

The system features 5 control zones, allowing heat application to be selected and adjusted across different sections of the body garment set.

This allows the protocol to be adapted when the same heat setting is not required for every area.

• Thermotherapy zones 5
• Operating temperature 30–50 °C
• Specified maximum temperature 55 °C
• Control Independent by zone
• Default time 30 minutes
• On-screen selection Far Infrared

Maximum temperature of up to 55 °C

The WKB002 technical documentation specifies a maximum temperature of 55 °C, while the standard operating range stated for the system is between 30 and 50 °C.

The temperature must be selected according to the body area, the protocol being performed and, especially, the client’s tolerance.

Targeted body treatments by zone

The garment set allows the main body areas used in aesthetic pressotherapy protocols to be treated.

The configuration includes separate garments for:

• Right leg.
• Left leg.
• Right foot.
• Left foot.
• Right arm.
• Left arm.
• Abdomen and waist.

This arrangement allows comprehensive body protocols to be performed or the session to be adapted to specific areas according to the selected settings.

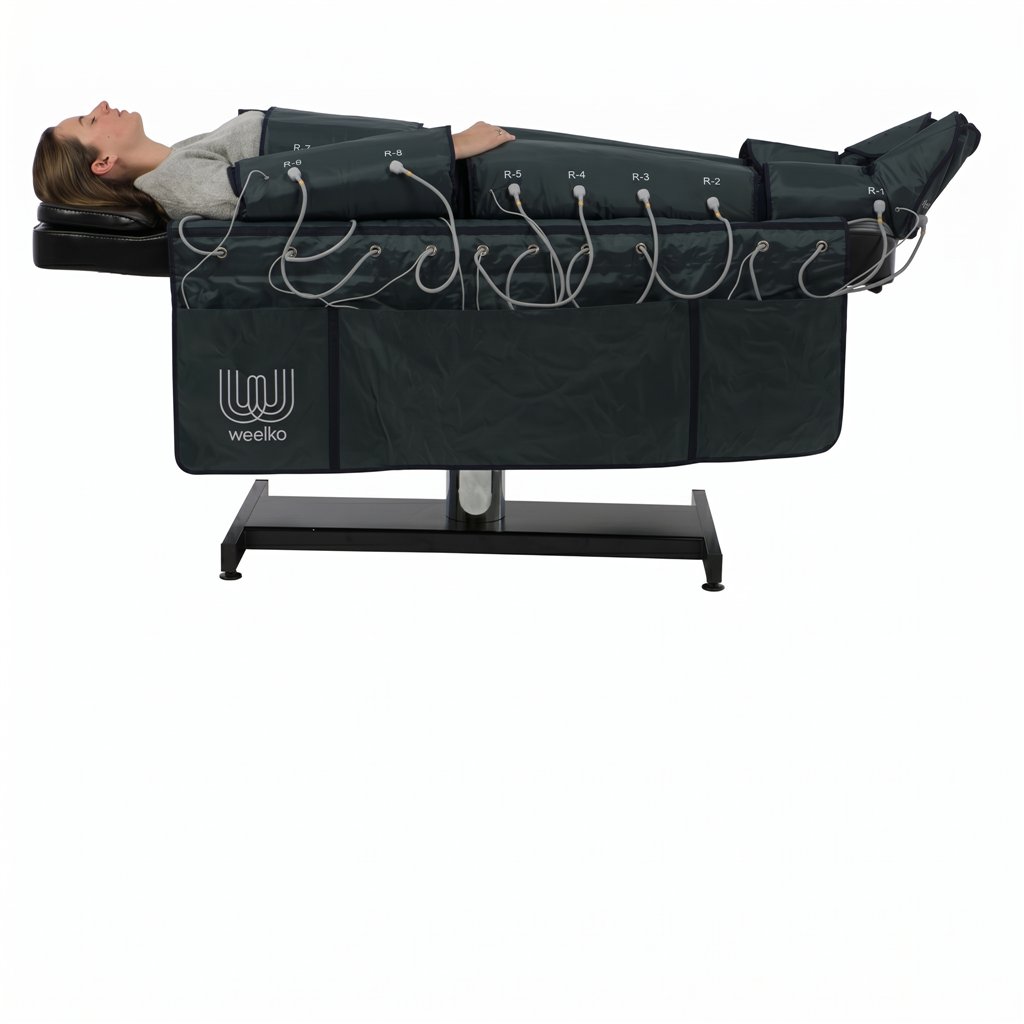

A complete body suit

One of the features that distinguishes the HIGHTECH SAUNA AIR from more basic pressotherapy machines is the extensive range of body accessories included.

It is not limited to leg boots. The system includes specific components for the feet, legs, arms and waist, considerably expanding the treatment options available in the treatment room.

Touchscreen treatment control

The main unit features a touchscreen through which the professional can access the machine’s functions.

The menu allows the pressotherapy function to be selected, the operating programme to be chosen and the corresponding level to be configured. The thermotherapy function is managed through the Far Infrared option.

The session can also be started or paused from the interface using the PLAY/PAUSE control.

• Control Touchscreen
• Pressotherapy Menu selection
• Thermotherapy Far Infrared option
• Start / pause PLAY/PAUSE
• Initial time 30 minutes

A machine designed for professional treatment rooms

The HIGHTECH SAUNA AIR is designed for beauty salons and professional establishments that perform body treatment protocols and want to combine pressotherapy and thermotherapy on a single platform.

Its configuration allows different areas of the body to be treated and parameters such as programme, intensity and temperature to be adjusted from the digital console.

It can be incorporated into aesthetic body treatment protocols focused on:

• Body wellness.
• Comfort during the session.
• Cosmetic body care.
• Aesthetic leg treatments.
• Aesthetic arm treatments.
• Aesthetic abdomen and waist treatments.
• Protocols intended to improve the visible appearance of the skin.
• Sessions combining sequential pneumatic compression and heat.

10 channels and 20 chambers: what does this mean?

In a pressotherapy machine, the channels control the different pneumatic sequences used to inflate the chambers distributed throughout the suit.

The WKB002 features 10 channels and 20 air chambers. This configuration enables the different sequences used by programmes A, B, C and D.

Airflow and air pressure

The pneumatic unit provides regulated airflow within the technical parameters specified by Weelko.

• Airflow 0–40 L/min
• Air pressure 0–0.4 kg/cm²
• Pressure cycle 0–15 seconds
• Channels 10
• Chambers 20

These parameters operate together with the programme and intensity level selected on the screen.

30-minute sessions as the default setting

Both the pressotherapy and thermotherapy functions start with a default time of 30 minutes.

Each session must be configured according to the established professional protocol and the individual client’s tolerance.

30 min 4 programmes 3 intensities 5 heat zones

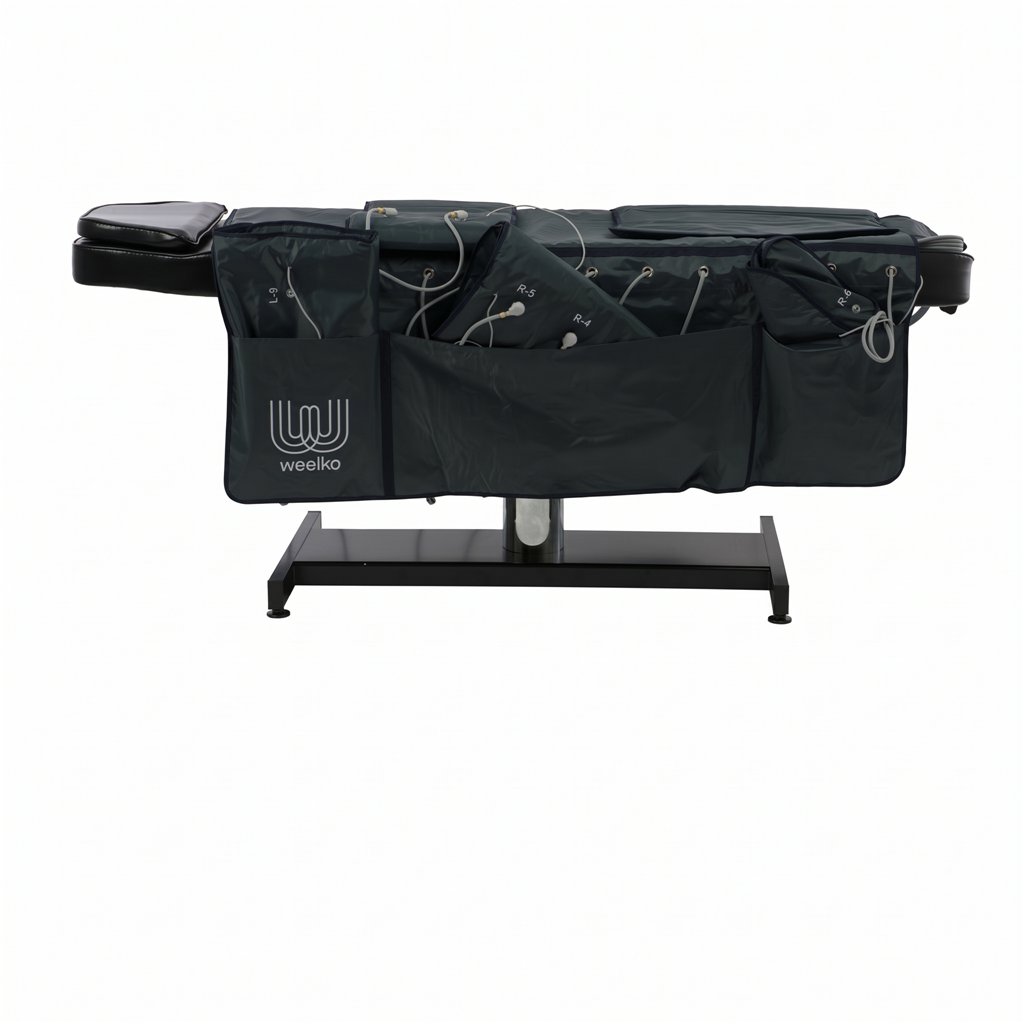

Blanket for organising and protecting cables

The set includes a dedicated blanket for storing and organising the cables.

This solution helps reduce unnecessary handling of the cables between sessions and makes it easier to keep the set organised when preparing the treatment room.

The blanket measures approximately 135 × 172 cm.

How to identify the connections

The system uses different connections for pressotherapy and thermotherapy.

• Thin cables 1–5 Thermotherapy
• Thick cables 0–9 Pressotherapy
• Pneumatic channels 10
• Heat zones 5

How to prepare a session

1. Position the machine in a suitable, dry professional environment.
2. Connect the power cable to the rear panel.
3. Connect the tubes correctly according to the specified numbering.
4. Check the pressotherapy and thermotherapy connections.
5. Place the cable blanket on a flat surface.
6. Protect the treatment surface using disposable hygiene material.
7. Place a suitable hygiene garment or protective layer on the client before fitting the suit.
8. Adjust the garments without compressing the body excessively.
9. Switch on the main unit.
10. Access the menu using the touchscreen.
11. Select the pressotherapy or thermotherapy function.
12. Set the programme, intensity and temperature as required.
13. Check the client’s comfort.
14. Press PLAY/PAUSE to start the session.

How to use pressotherapy

To use the pneumatic function:

1. Select Pressotherapy from the menu.
2. Choose programme A, B, C or D.
3. Select the intensity level.
4. Check that the suit is positioned correctly.
5. Ensure that none of the garments are excessively tight.
6. Start the treatment.
7. Check the client’s comfort regularly.

How to use thermotherapy

The heat function can be used independently or together with pressotherapy when required by the protocol.

1. Access the Far Infrared option.
2. Select the zones to be activated.
3. Set the temperature.
4. Start with a moderate temperature.
5. Check the client’s heat sensation regularly.
6. Adjust the temperature when necessary.

Simultaneous pressotherapy + thermotherapy

One of the main advantages of the HIGHTECH SAUNA AIR is the ability to combine both technologies within the same session.

The professional can first configure the pressotherapy programme and then activate the heat zones from the corresponding menu.

Approximate garment dimensions

The body garment set features different sections adapted to the areas they are designed to wrap around.

• Long upper section Approximately 60 cm
• Short upper section Approximately 45 cm
• Central panel Approximately 33 cm
• Central panel height Approximately 31.5 / 58 cm
• Long lower section Approximately 58.5 cm
• Foot section Approximately 40 cm
• Foot width Approximately 30 cm
• Foot height Approximately 26 cm

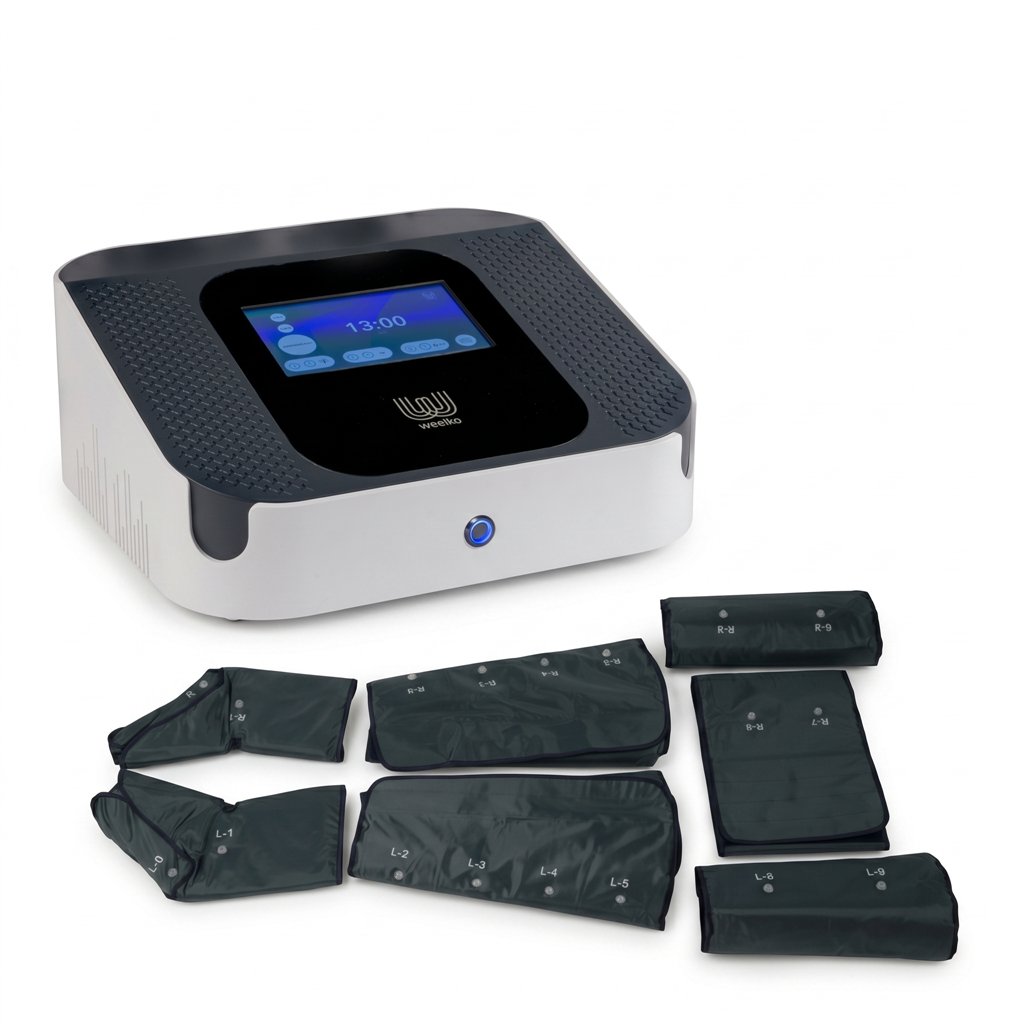

What is included with the HIGHTECH SAUNA AIR WKB002

• 1 Weelko WKB002 main unit.
• 1 right-leg garment.
• 1 left-leg garment.
• 1 right-arm garment.
• 1 left-arm garment.
• 1 right-foot garment.
• 1 left-foot garment.
• 1 abdomen and waist belt.
• 1 blanket for cable organisation and storage.
• 1 set of tubes.
• 1 power cable.

Weelko WKB002 technical specifications

• Brand Weelko
• Range HIGHTECH SAUNA AIR
• Model WKB002
• Equipment type Pressotherapy + thermotherapy
• Use Professional
• Control Touchscreen
• Pressotherapy programmes 4
• Intensity levels 3
• Air channels 10
• Air chambers 20
• Thermotherapy zones 5
• Airflow 0–40 L/min
• Air pressure 0–0.4 kg/cm²
• Pressure cycle 0–15 s
• Operating temperature 30–50 °C
• Maximum temperature 55 °C
• Default time 30 minutes
• Operating power 350 W
• Rated power 350 W
• Rated voltage 220–240 V
• Frequency 50 / 60 Hz
• Net weight 16.5 kg
• Console dimensions 34 × 38 × 15 cm
• Blanket dimensions 135 × 172 cm
• Packaging dimensions 66 × 46 × 38 cm
• Gross weight 18.5 kg
• Cable blanket Included

350 W rated power

The main unit has a rated power of 350 W and is designed to operate with a 220–240 V power supply at a frequency of 50/60 Hz.

• Rated power 350 W
• Operating power 350 W
• Voltage 220–240 V
• Frequency 50 / 60 Hz

A 16.5 kg professional console

The main unit measures approximately 34 × 38 × 15 cm, and the set has a specified net weight of 16.5 kg.

The complete packaging measures approximately 66 × 46 × 38 cm and has a gross weight of 18.5 kg.

• Console 34 × 38 × 15 cm
• Net weight 16.5 kg
• Packaging 66 × 46 × 38 cm
• Gross weight 18.5 kg

Hygiene between clients

For professional equipment with reusable body garments, maintaining proper hygiene between users is part of the daily treatment-room protocol.

We recommend using hygienic leg covers or suitable disposable garments during every session and for every client, reducing direct contact between the skin and the inside of the garments.

Cleaning the suit

After each use:

• Switch off the machine correctly.
• Remove the garments carefully.
• Clean the surfaces using a damp cloth.
• Do not immerse the garments or main unit in water.
• After using thermotherapy, open the garments to help dissipate accumulated heat.
• Check the condition of the surfaces regularly.
• Do not store damp garments.

Maintaining the cable and tube system

The tubes and connections must be handled carefully to extend their service life.

• Connect and disconnect the tubes by holding the connectors correctly.
• Do not pull directly on the cable or tube.
• Avoid sharp bends.
• Use the included blanket to keep the cables organised.
• Check the condition of the tubes, cables and connectors regularly.
• Do not use the machine if any electrical component is damaged.

Do not tamper with internal components

The main unit must not be opened or dismantled for inspection or repair by unqualified personnel.

In the event of a fault, abnormal operation or damage to an electrical component, stop using the machine and request technical assistance.

Precautions during a session

• Do not fit the garments excessively tightly around the body.
• Check the client’s comfort before starting the programme.
• Start with moderate settings.
• Increase the intensity only when appropriate.
• Monitor heat sensation when using thermotherapy.
• Do not leave the machine operating unsupervised.
• Do not leave the garments heating without a user.
• Maintain proper hydration before and after the session.
• Do not use the machine in bathrooms, outdoors or in damp environments.
• Do not use the machine if the power cable is damaged.

Contraindications and exclusions for use

Before using pressotherapy and thermotherapy equipment, confirm that the user is suitable for the intended aesthetic protocol.

Do not use in the following specified cases:

• Pregnancy.
• Pacemakers.
• Other cardiac rhythm control devices where incompatibility exists.
• Epilepsy.
• Active skin infections.
• On areas where a condition makes the application of pressure or heat inadvisable.

For professional use only

The Weelko HIGHTECH SAUNA AIR WKB002 is intended exclusively for professional use in beauty salons and specialist establishments.

Operation requires proper knowledge of set installation, programme operation, pressure and temperature adjustment, contraindications, hygiene procedures and maintenance.

Compliance and directives

• Low Voltage Directive 2014/35/EU
• Electromagnetic Compatibility 2014/30/EU

Why choose pressotherapy with thermotherapy?

Integrating both functions into a single machine expands treatment options without requiring two separate main units in the treatment room.

The HIGHTECH SAUNA AIR combines:

• Sequential pressotherapy.
• 4 pneumatic programmes.
• 3 intensity levels.
• 10 channels.
• 20 chambers.
• 5 heat zones.
• Adjustable temperature.
• Leg treatments.
• Foot treatments.
• Arm treatments.
• Abdomen and waist treatments.

WKB002 at a glance

Frequently asked questions about the Weelko HIGHTECH SAUNA AIR WKB002

Does the WKB002 provide pressotherapy and thermotherapy?

Yes. The machine combines pressotherapy using sequential pneumatic compression and thermotherapy within the same unit.

Can both functions be used at the same time?

Yes. Both functions can be used within the same session by following the machine configuration procedure.

How many pressotherapy channels does it have?

The WKB002 features 10 air channels.

How many chambers does it have?

The set features 20 air chambers.

How many pressotherapy programmes does it include?

It features 4 programmes: A, B, C and D, each with a different inflation sequence.

Which programme does Weelko recommend for initial use?

The manufacturer recommends starting with programme C and then making any necessary adjustments according to the protocol and the client’s tolerance.

How many intensity levels does it have?

It features 3 intensity levels.

How many thermotherapy zones does it have?

The heat system features 5 zones.

What temperature does it reach?

The specified maximum temperature is 55 °C. The specified operating range is approximately 30 to 50 °C.

How long does a session last?

The specified default time for the pressotherapy and thermotherapy functions is 30 minutes. The settings must be adapted to the relevant professional protocol.

Does it include arm garments?

Yes. The set includes one garment for the right arm and one for the left arm.

Does it include an abdominal belt?

Yes. It includes a garment for treating the abdomen and waist.

Does it include foot garments?

Yes. It includes one piece for the right foot and one for the left foot.

Does it include leg garments?

Yes. One garment is included for each leg.

Does it include a blanket?

Yes. The set includes a blanket for organising and storing the cables.

Does it have a touchscreen?

Yes. The main unit is controlled using a touchscreen.

What is the maximum pressure?

The technical documentation specifies an air pressure range of 0 to 0.4 kg/cm².

What is the airflow?

The machine operates within a specified range of 0 to 40 L/min.

Is it professional equipment?

Yes. It is intended for professional use in beauty salons and requires proper knowledge of its operation, maintenance, configuration and contraindications.

Can it be used during pregnancy?

No. Pregnancy is one of the specified exclusions for use of this machine.

Can it be used by people with pacemakers?

It must not be used by people with pacemakers or incompatible cardiac rhythm control devices.

Can it be used to treat lymphoedema?

It must not be presented or used as equipment intended to treat lymphoedema, circulatory disorders or lymphatic diseases. Its use must remain within an exclusively aesthetic and wellness context.

HIGHTECH SAUNA AIR WKB002: professional pressotherapy with thermotherapy

The Weelko HIGHTECH SAUNA AIR WKB002 combines a 10-channel, 20-chamber pressotherapy system with adjustable thermotherapy across 5 zones on a single platform.

Its four programmes, three intensity levels, touchscreen control, garments for the legs, feet, arms and waist, and adjustable operating temperature allow different aesthetic body treatment protocols to be performed using a single professional machine.
